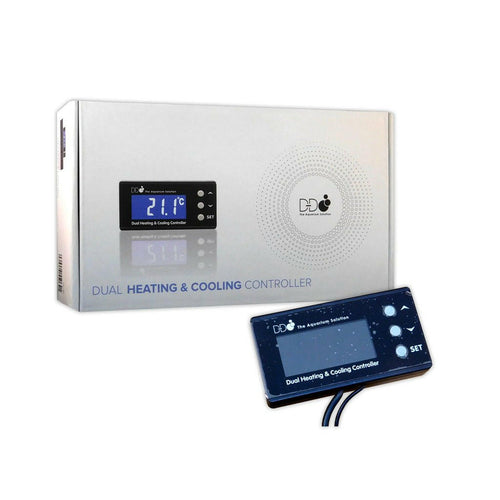

D-D Dual Temp Controller

PREVIOUSLY THE SIMPLY AQUARIA TEMPERATURE CONTROLLER

KEY FEATURES:
    •    Plug and play - no wiring required
    •     Heating/cooling can be set to within 0.3 deg C of target temperature e.g. Control Range of 24.7 - 25.3 deg C (with set temp of 25 deg C).
    •    Audible and Visual Alarm Function e.g alarm sounds if temp below 24 deg C or above 26 deg C ( with alarm set to 1 deg C).
    •    2m long plastic coated temperature sensor with mounting suction cup.
    •    Heating Control (resistive load, such as heater) max 1600W
    •    Cooling Control (inductive load, such as a chiller) max 600W
    •    Display: Back Lit blue LCD – permanently lit.
    •    Power off memory function
    •    1 year warranty

Size:

    •    Display Panel size: 95mm x 50mm x 15mm
    •    Control socket size: 160mm x 70mm x 45mm

Technical Parameters:

    •    Temperature measuring range: -40 - 99 deg C
    •    Temperature differential setting range 0.3 – 16.0 deg C
    •    Alarm function range: 0.5 – 5 deg C of set point temperature
    •    Resolution: 0.1 deg C
    •    Accuracy: ±1 deg C (-30 - 50 deg C)
    •    Power supply: 220VAC±10%, 50/60Hz
    •    Operating Humidity range: 20%  - 85%
    •    Power consumption: ?3W
    •    Operating Temperature Range: - 10 – 60 deg C
