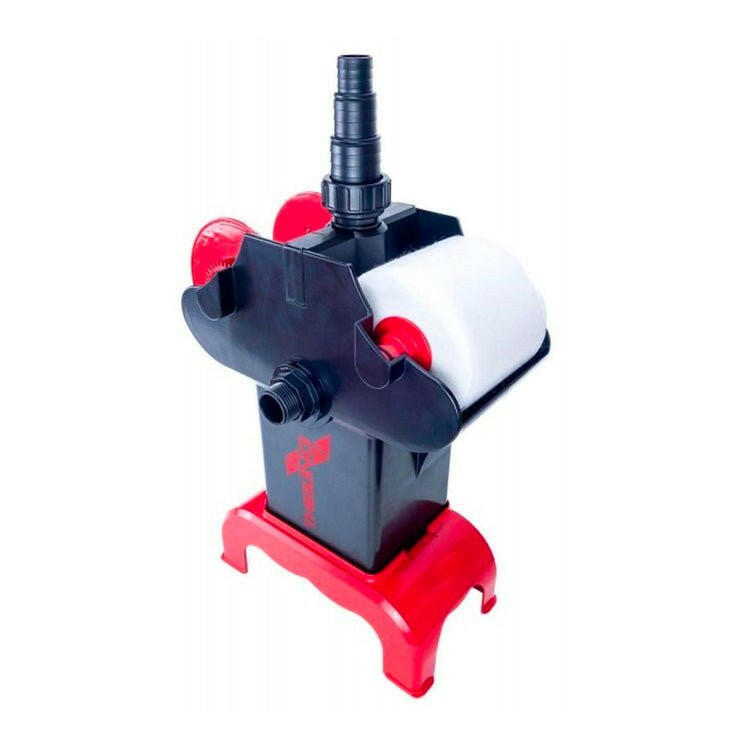

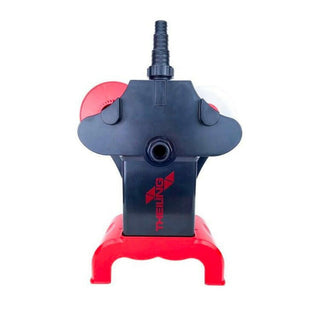

The 2023 Theiling Compact Aquatic Roll Filter
The Rollermat Compact 1 Roll Filter removes waste particles from your tank or aquarium water
The water is filtered by a fine fleece which is automatically renewed from an integral roll, as soon as it is blocked. The pores of the fleece are so small that even single cell parasites such as Ichtyo are removed
The polluted water is directed through the inlet into the dirty water compartment. It passes the fleece and flows back into the sump. If the fleece is loaded with dirt, the flow through the fleece decreases and the water level in the dirty water compartment rises. If it reaches a certain level, a level switch starts the motor and fresh fleece is wound forward. Fully automatically
It will take 3 - 6 months, depending on the waste production in the system until the complete fleece is used and has to be replaced. The fleece is very fine. Even smallest particles are removed. The dirt is filtered out of the system before it is metabolized biologically
The pores of the fleece are even fine enough to retain many protozoa, like fish parasites in fresh and saltwater. They cannot pass the fleece. This is unique
If the accepting roll is full or the releasing roll empty, it can be taken out of the filter easily. Both parts can be separated and the fleece can be discarded
Features:
• Efficient mechanical filtration by fine filter fleece
• Automatic transport of the fleece
• Easy changing of the used fleece roll
• The rolls are easy to change
• The roll is 10 cm wide, for flow rates up to 2000 litres per hour, depending on the water quality
• Minimum power uptake. Average below 0,1w
• 12v safety voltage
Technical:
Dimensions: 30cm Long x 52cm High x 22 cm Wide including the base, (without base is 46cm)
For the installation you have to calculate 10 cm extra for the height to change the fleece roll easily. If the Rollermat is set up inside of a filter sump, the water level in the sump may not increase higher than 10 cm.
