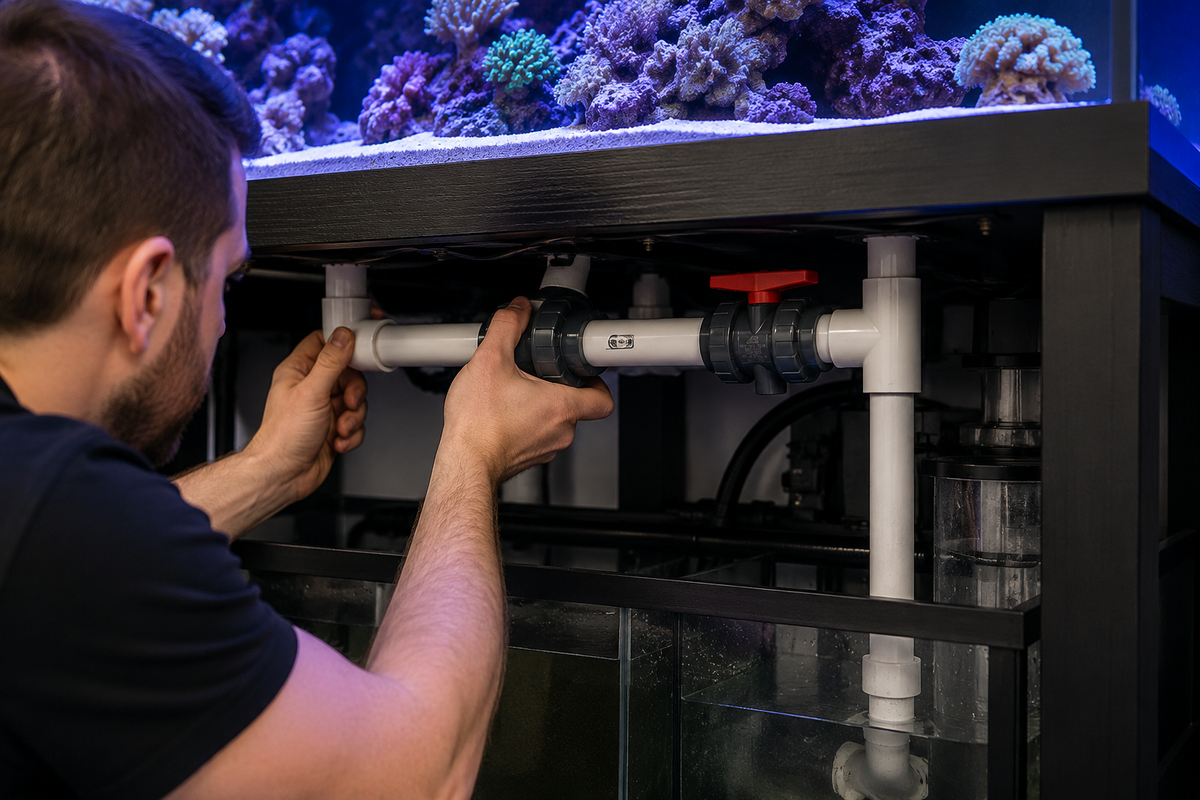

The plumbing system is one of the most important yet often overlooked parts of a marine aquarium. Whether you’re running a small sump-equipped reef tank or a large custom aquarium, the correct fittings and pipework ensure reliable water flow, easy maintenance, and safe operation.
Understanding the different types of fittings, valves, tubing and connectors can help you design a more efficient and serviceable aquarium system while avoiding leaks and flow restrictions.
This guide explains the most common marine aquarium plumbing fittings and how they are used.
Why Aquarium Plumbing Matters
A properly designed plumbing system helps:
✔ Deliver consistent water flow
✔ Reduce noise
✔ Improve filtration performance
✔ Simplify maintenance
✔ Prevent leaks
✔ Protect equipment
✔ Improve overall system reliability
Good plumbing can make the difference between a trouble-free aquarium and one that requires constant adjustments.
Understanding Marine Aquarium Plumbing
Most marine aquariums with sumps use a plumbing system to move water between:
- Display aquarium
- Overflow system
- Sump
- Return pump
- Filtration equipment
- Reactors
- Chillers
- UV sterilisers
These systems are typically built using:
- PVC pipe
- Flexible tubing
- Valves
- Connectors
- Bulkheads
PVC Pipework
PVC pipe is the most common plumbing material used in marine aquariums.
Benefits
✔ Corrosion resistant
✔ Reef safe
✔ Strong and durable
✔ Easy to modify
✔ Widely available
PVC plumbing is commonly used for:
- Overflow systems
- Return lines
- Reactor plumbing
- Closed-loop systems
Rigid PVC Pipe
Rigid pipe provides a professional and permanent plumbing solution.
Advantages
✔ Neat appearance
✔ Reduced flow restriction
✔ Long lifespan
✔ Secure connections
Rigid pipe is often preferred for custom aquarium installations.
Flexible PVC Pipe
Flexible PVC combines the benefits of rigid pipe and flexible tubing.
Benefits
✔ Easier installation
✔ Reduced vibration
✔ Quieter operation
✔ Fewer fittings required
Many reef keepers use flexible pipe between return pumps and rigid plumbing.
Aquarium Tubing
Flexible tubing is commonly used for smaller plumbing applications.
Examples include:
- Dosing systems
- Auto top-up systems
- Reactors
- UV sterilisers
- Chillers
Silicone Tubing
Silicone tubing is flexible and durable.
Benefits
✔ Kink resistant
✔ Flexible
✔ Long lifespan
✔ Easy routing
Often used for:
- Air lines
- Dosing systems
- Small pumps
Vinyl Tubing
Clear vinyl tubing is commonly used for:
- Water changes
- Reactors
- Temporary plumbing
Benefits
✔ Affordable
✔ Easy to cut
✔ Readily available
Bulkhead Fittings
Bulkheads create waterproof connections through aquarium glass or acrylic.
They are commonly found in:
- Overflow systems
- Sumps
- External filtration systems
Why Bulkheads Are Important
They allow water to pass safely through:
- Aquarium bases
- Overflow boxes
- Sump walls
without leaking.
Proper installation is critical for long-term reliability.
Ball Valves Explained
Ball valves are one of the most common fittings found in marine aquarium plumbing.
They use an internal rotating ball to control water flow.
What Are Ball Valves Used For?
Ball valves allow you to:
- Start flow
- Stop flow
- Restrict flow
- Isolate equipment
Common applications include:
- Return pump isolation
- Reactor control
- Water change systems
- Equipment maintenance
Benefits of Ball Valves
✔ Simple operation
✔ Reliable design
✔ Durable construction
✔ Quick shut-off capability
They are ideal for situations where fine adjustment is not required.
Gate Valves Explained
Gate valves provide more precise flow control than ball valves.
These are commonly used on:
Overflow systems
Bean Animal drains
Herbie overflows
Benefits of Gate Valves
✔ Precise adjustment
✔ Smoother operation
✔ Improved overflow tuning
Many advanced reef keepers prefer gate valves for overflow tuning due to their accuracy.
Union Fittings
Union fittings allow plumbing sections to be disconnected without cutting pipe.
Benefits
✔ Easier maintenance
✔ Equipment removal
✔ Faster repairs
✔ Cleaner installations
Many aquarists install unions around:
- Return pumps
- UV sterilisers
- Chillers
- Reactors
Double Union Ball Valves
A double union ball valve combines:
- A shut-off valve
- Two removable unions
into a single fitting.
Benefits
✔ Flow control
✔ Easy maintenance
✔ Equipment isolation
✔ Professional installation
These are among the most useful fittings in modern aquarium plumbing.
Hose Tail Fittings
Hose tails connect flexible tubing to equipment.
Commonly used on:
- Pumps
- Reactors
- Chillers
- UV units
Benefits
✔ Secure tubing connection
✔ Simple installation
✔ Available in multiple sizes
Elbows and Bends
Elbows allow pipework to change direction.
Common options include:
45° Elbows
90° Elbows
Choosing Between 45° and 90°
45° fittings generally:
✔ Improve flow
✔ Reduce restriction
✔ Reduce pump workload
Where space allows, gentle bends are preferred.
Tee Pieces
Tee fittings split water flow into multiple directions.
Common uses include:
- Feeding reactors
- UV sterilisers
- Refugiums
- Secondary equipment
Tee pieces allow multiple devices to operate from a single pump.
Manifolds
A manifold is a plumbing system designed to supply multiple pieces of equipment from one return pump.
Benefits
✔ Fewer pumps required
✔ Reduced power consumption
✔ Cleaner sump layout
✔ Easier maintenance
Many advanced reef aquariums use manifolds to power:
- Carbon reactors
- Phosphate reactors
- UV sterilisers
- Refugiums
Check Valves
Check valves prevent water from flowing backwards.
They are commonly installed on return lines.
Purpose
If power fails:
- Water stops flowing upward
- The check valve closes
- Back-siphoning is reduced
Important Note
Check valves should never be relied upon as the sole flood prevention method.
Always design sufficient sump capacity to handle power outages safely.
Pipe Clips and Supports
Supporting pipework reduces stress on:
- Bulkheads
- Pumps
- Equipment connections
Benefits include:
✔ Reduced vibration
✔ Reduced leaks
✔ Improved reliability
Threaded vs Solvent Weld Fittings
Marine plumbing typically uses one of two connection methods.
Solvent Weld
Permanent bonded connection.
Benefits
✔ Strong
✔ Leak resistant
✔ Professional finish
Threaded Fittings
Removable connections.
Benefits
✔ Easy servicing
✔ Equipment replacement
✔ Flexible design
Many installations use a combination of both.
Common Plumbing Layouts
Basic Return System
Components:
- Overflow
- Drain pipe
- Sump
- Return pump
- Return nozzle
Suitable for most beginner marine aquariums.
Reactor-Driven System
Adds:
- Carbon reactor
- Phosphate reactor
via manifold plumbing.
Advanced Reef System
May include:
- UV steriliser
- Chiller
- Multiple reactors
- Automatic water change systems
- Flow manifolds
Common Plumbing Mistakes
Using Too Many Bends
Excessive elbows reduce flow efficiency.
No Isolation Valves
Maintenance becomes difficult without shut-off valves.
Missing Union Fittings
Equipment removal may require cutting pipework.
Undersized Pipework
Restricts flow and increases pump workload.
Poor Support
Unsecured pipework can stress bulkheads and fittings.
Recommended Fittings for Most Marine Aquariums
A typical sump-based marine aquarium benefits from:
- PVC pipework
- Double union ball valves
- Bulkhead fittings
- Hose tails
- Union connectors
- Flexible tubing
- Pipe clips
These components provide flexibility, reliability and ease of maintenance.
Final Thoughts
Marine aquarium fittings are the backbone of any plumbing system. While often hidden behind cabinets and sumps, components such as ball valves, unions, bulkheads and tubing play a critical role in ensuring reliable operation and easy maintenance.
Investing in quality plumbing fittings during the initial setup can save countless hours of troubleshooting and maintenance in the future. Whether you’re plumbing a simple sump system or a complex reef aquarium with multiple reactors and filtration devices, careful planning and the correct fittings will help create a cleaner, quieter and more efficient aquarium.
