- Coordinate Feed/Maintenance Modes- Turn all of your AI pumps on or off with a control button on a single pump.
- Prevent back-siphon- With calibration set, instead of powering off, a pump will continue to run without producing flow, preventing siphoning, which could result in air bubbles when the pump resumes its scheduled operation!
All AI devices include smart control standard. Choose from the myAI® or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.
Included Pump Modes
Schedule: Create a custom program with changing flow over time.
Feed: Temporarily reduces flow to prevent food from being cycled into the overflow.
Calibrate: Calibrate your pump to your aquarium. Set max, min, and neutral flow levels.

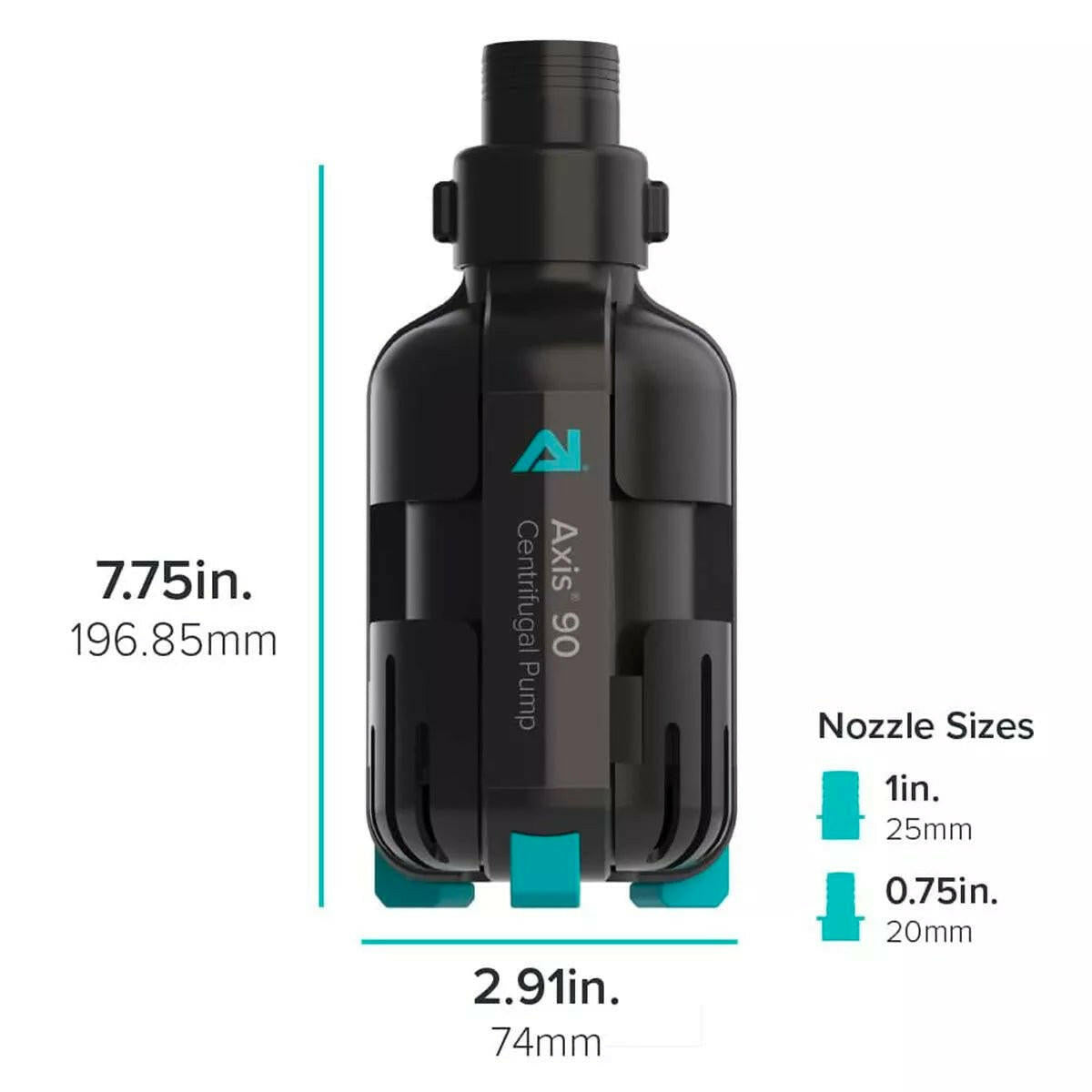

Width 2.91 in. (74 mm)
Height 7.75 in. (196.85 mm)
Max Head 10 ft. (3 m)
Flow Rate 400 gph (1500 lph)
Recommended Tank SizeUp to 90 gallons
Power Consumption Variable, 40W max
Input 100–240VAC, 50-60Hz, 1A
Barbed Output Nozzle Sizes: Small: 0.75in. 20mm Large: 1in. 25mm

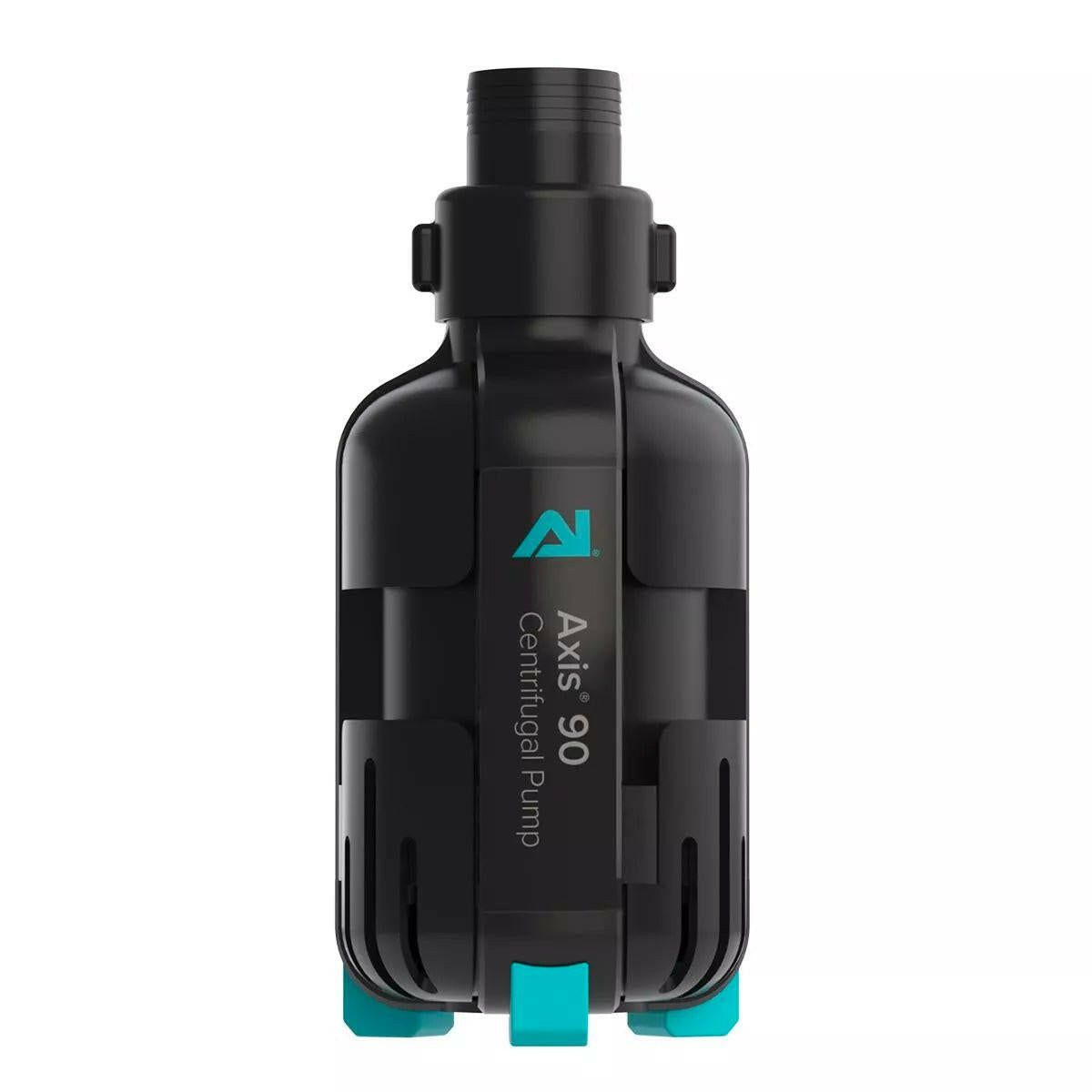

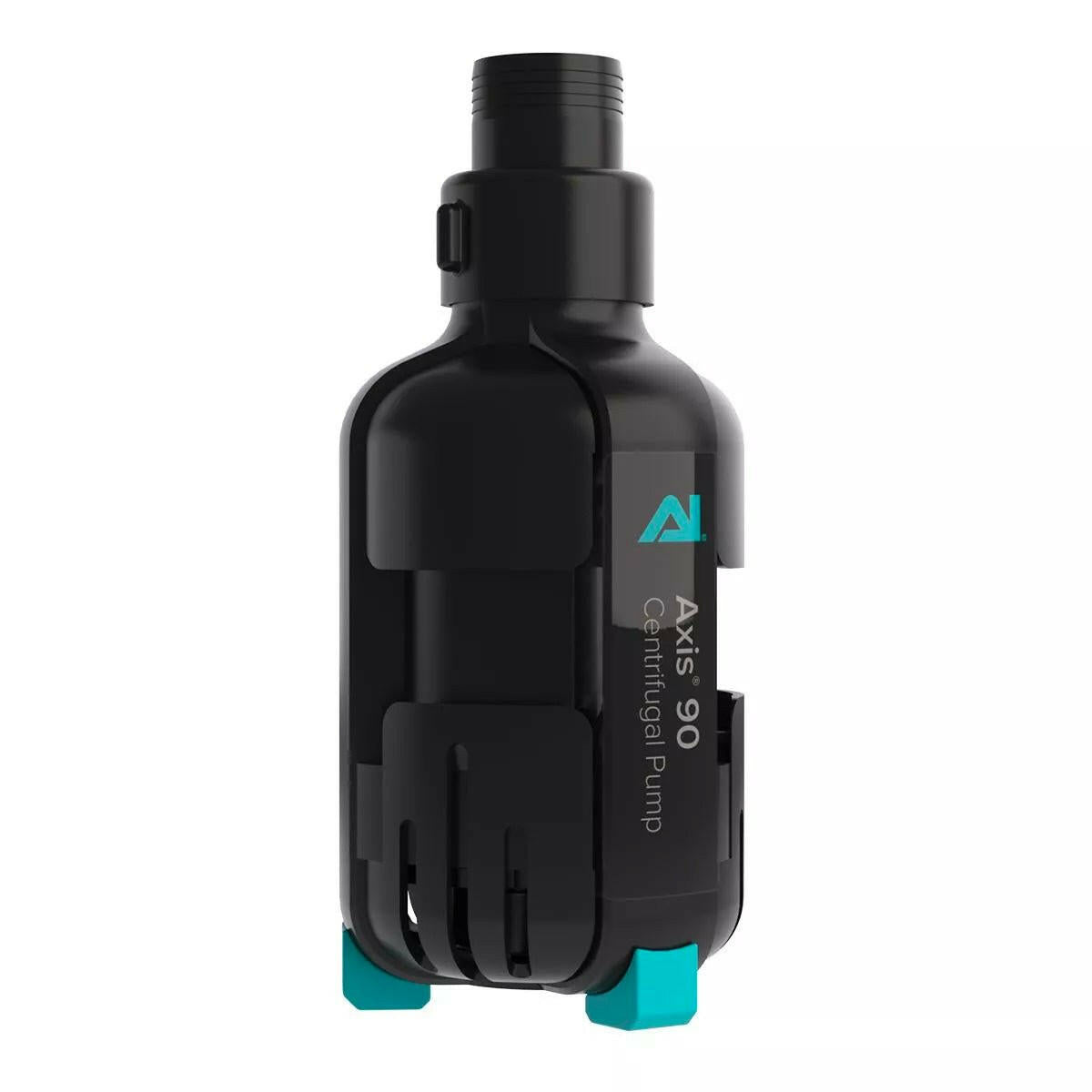

AI Axis 90 Pump with Integrated Driver
Power Adapter with Universal Plug
Adapter Set
Quick Start Guide
