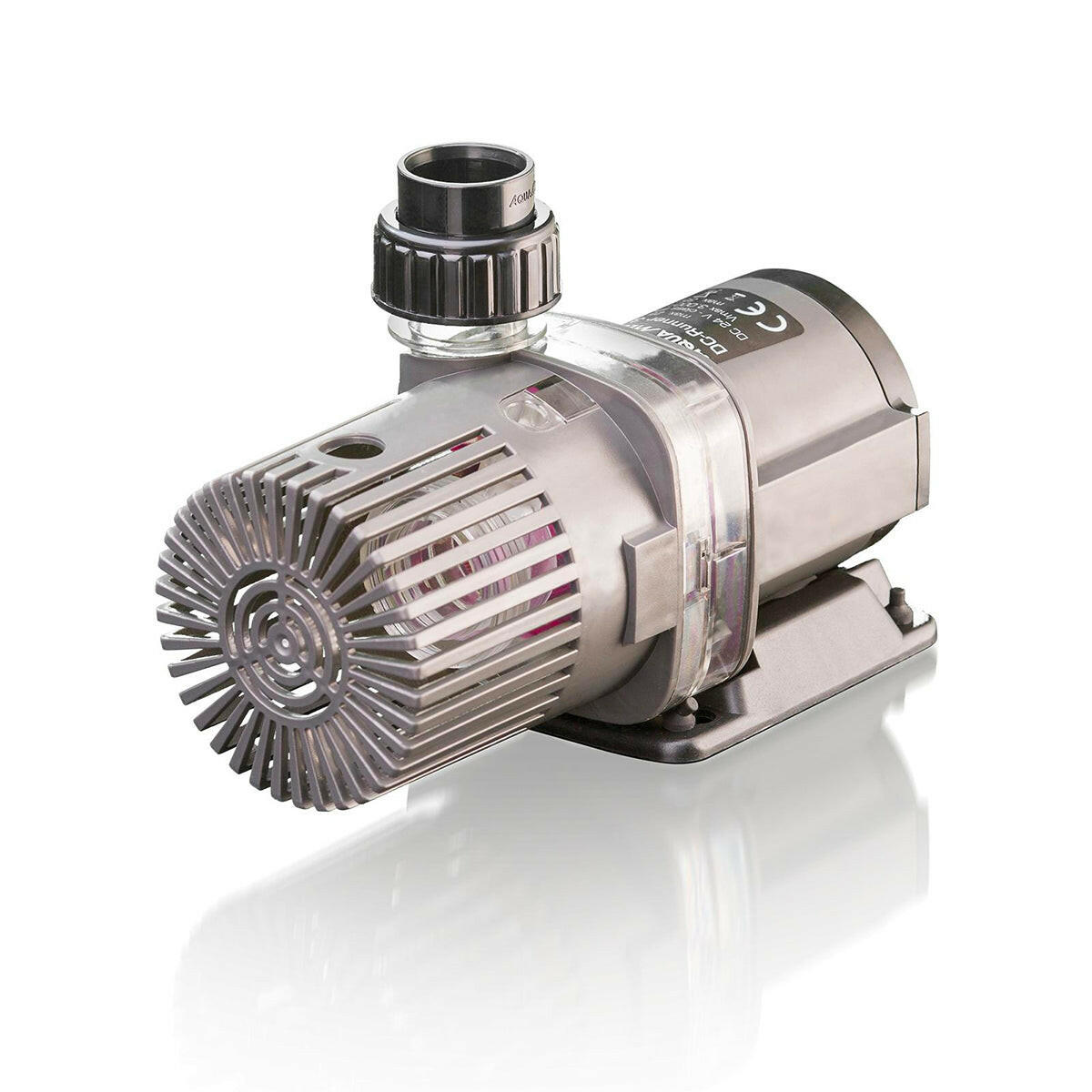

This high-performance DC return pump is designed as a universal solution for circulation and current in both freshwater and marine aquaria. The pump is a magnetically coupled current unit with a fully encapsulated synchronous motor and salt-water resistant materials. It runs on a safe 24 V DC supply (transformer included) and is suitable for installation fully submerged or out of the water.
The included controller sits between the power supply and pump to adjust output levels. Power is changed with +/- buttons and indicated by LEDs; a FEED button pauses output for 10 minutes and an automatic shut-off protects the unit if no water is detected for 2 minutes. Control and programming are available manually via the controller, remotely via a smartphone or tablet app, or through a 0-10 V connection for external systems. An optional extension cable is available to lengthen the pump-to-controller connection.
- for use as a circulation or current pump in salt or freshwater aquaria
- includes controller for precise adjustment of water output
- control and programming via app (iTunes and Google Play) or manually via controller
- 0-10 V connection for external control and integration
- ULTRA SILENT operation thanks to optimized control electronics
- rugged, corrosion-resistant pump housing
- energy-efficient DC motor (24 V) for high performance with low consumption
- polished ceramic shaft and bearings for quiet operation and low maintenance
- suitable for submerged and non-submerged installations
Technical Data
0-10 V connection for external control
Pump output range up to 9,000 l/h (model-dependent)
Maximum head up to 4.8 m (model-dependent)
Power consumption range approx. 12–65 W (model-dependent)
Power supply pump: 24 V DC; transformer: 110–240 V/50–60 Hz included
Protection rating: IPX8
Optional extension cable available for flexible installation
Suitable for fresh and marine water
Can be installed fully submerged or out of water
1.3 Technical Data
transparency pump housing
0-10 V connection for external control
Pump output: up to 1200 l/h
max. pump height: 1.5 m
max. Power consumption: 12 W
Power supply pump: 24 V
Power supply transformer: 110-240 V/50-60 Hz
Connector suction side: 25 mm
Connector pressure side: 20 mm
Protection rating: IPX8
Dimensions incl. basket: 125x60x85 mm
Dimensions without basket: 90x60x85 mm
suitable for fresh and marine water
can be installed fully submerged or out of water
2.3 Technical Data
transparency pump housing
0-10 V connection for external control
Pump output: up to 2000 l/h
max. pump height: 2.2 m
max. Power consumption: 20 W
Power supply pump: 24 V
Power supply transformer: 110-240 V/50-60 Hz
Connector suction side: 25 mm
Connector pressure side: 25 mm
Protection rating: IPX8
Dimensions incl. basket: 140x68x100 mm
Dimensions without basket: 105x68x100 mm
suitable for fresh and marine water
can be installed fully submerged or out of water
3.3 Technical Data
transparency pump housing
0-10 V connection for external control
Pump output: up to 3000 l/h
max. pump height: 2.7 m
max. Power consumption: 25 W
Power supply pump: 24 V
Power supply transformer: 110-240 V/50-60 Hz
Connector suction side: 32 mm
Connector pressure side: 25 mm
Protection rating: IPX8
Dimensions incl. basket: 195x90x115 mm
Dimensions without basket: 145x90x115 mm
suitable for fresh and marine water
can be installed fully submerged or out of water
5.3 Technical Data
transparency pump housing
0-10 V connection for external control
Pump output: up to 5000 l/h
max. pump height: 3.5 m
max. Power consumption: 50 W
Power supply pump: 24 V
Power supply transformer: 110-240 V/50-60 Hz
Connector suction side: 32 mm
Connector pressure side: 32 mm
Protection rating: IPX8
Dimensions incl. basket: 190x95x125 mm
Dimensions without basket: 170x95x125 mm
suitable for fresh and marine water
can be installed fully submerged or out of water
9.3 Technical Data
transparency pump housing
0-10 V connection for external control
Pump output: up to 9000 l/h
max. pump height: 4.8 m
max. Power consumption: 65 W
Power supply pump: 24 V
Power supply transformer: 110-240 V/50-60 Hz
Connector suction side: 40 mm
Connector pressure side: 40 mm
Protection rating: IPX8
Dimensions without basket: 180x95x135 mm
suitable for fresh and marine water
can be installed fully submerged or out of water
