The new innovative internal protein skimmer from Deltec. The Deltec 'i' DC pump and 'ix' AC pump range of protein skimmers incorporate a new emergency overflow system that prevents the collection cup from overflowing in the event that the sump water level suddenly exceeds the skimmers specified water depth or the air intake becomes blocked. As the water level rises within the protein skimmer body the air feed to the pump will shut off automatically via the emergency overflow further reducing the chance of foam flooding the cup if the water level in the sump should ever rise due to a return pump failure.The new protien skimmers also include minimum and maximum adjustment level marks on the outlet pipework for easy set up.The 'double base' footplate design allows water to exit the protein skimmer body into a void within the footplate and into the integrated level adjustment tube and the emergency overflow tube. This new design feature means that water will exit the protein skimmer body at the lowest point greatly reducing the chance of micro bubbles escaping the body, increasing air- water contact time and also reducing noise and turbulence within the protein skimmer body.
Due to waste accumulation and calcium carbonate build up protein skimmer pumps generally have to perform in a harsh environment and need to be cleaned periodically to maintain peak performance. With this in mind Deltec have incorporated a quick tool less removal system for the pump allowing for easy disassembly, in tests Deltec have been able to remove a pump for cleaning in less than 20 seconds meaning less time spent maintaining equipment and more time to enjoy your aquarium.
Technical Data

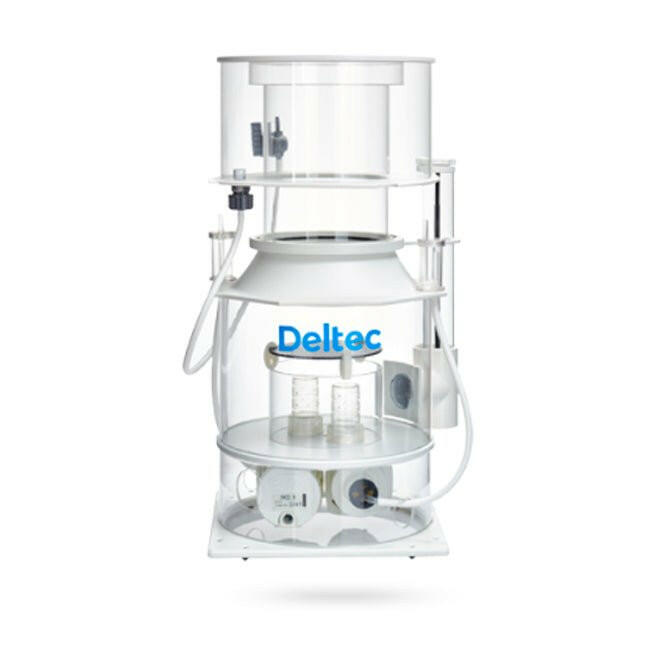

In Sump Version - Deltec 9000ix
The total height measurement includes around 20mm for cup removal 780mm
- Footprint: 420mm x 520mm
- Total air produced: 3 x 1750 lts/hour
- Power consumption: 3 x 38 watts
- Water level in sump: 150mm min 250mm max
- Neck diameter: 220mm
- Body Diameter: 400mm
- Tank Suitability: 6000 lts heavy stocking 9000 lts normal stocking
- Remote drain of skimmer cup
- Air silencer
- Micro adjustable skimmer setting
- High water flow through the skimmer
- No feed pump required, skimmer draws water directly from the sump
- AC pump 3 x DCS1700 230 Volts
