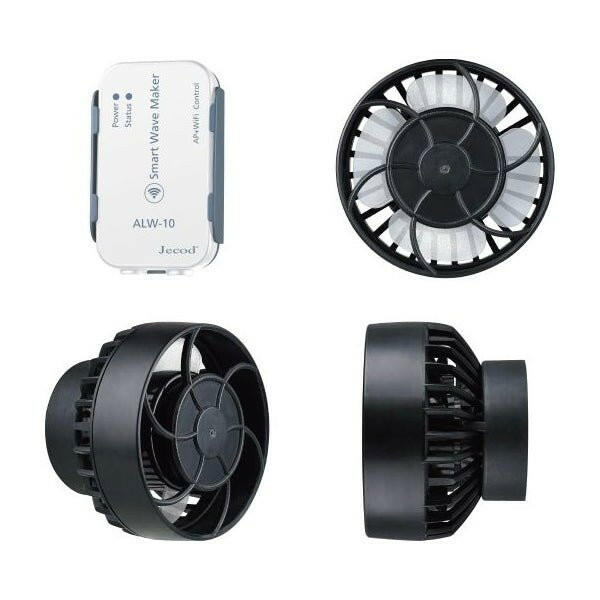

Jecod ALW Super Quiet Smart Wave Circulation Pumps with Wi-Fi and AP (Access Point)
Bring natural, reef-like flow to your aquarium with a super compact, smart-controlled circulation pump designed for Marine or Freshwater applications. Choose Wi‑Fi or AP mode (no router required) to set up and fine-tune flow from your phone via the ‘Jebao Aqua’ app. Flow can be reduced down to 30% of maximum, making it easy to match small, medium, or larger tanks and livestock needs.
Each pump includes an updated Smart sine wave control signal for super quiet operation and extended motor life. The ultra‑flat head mounts directly to the glass to significantly save space and reduce visual impact inside the aquarium. Use a single unit or link multiple pumps wirelessly for master & slave control to create complex, synchronized currents.
Features:
• External Smart Drive Controller – no electronic components inside the pump for a longer life
• 3D Big Rotation Angle to precisely direct flow
• Super Quiet Motor with sine wave technology
• Master and Slave Wireless Control (link multiple pumps)
• Smart Wi‑Fi or AP Sine Wave Controller
• 1.9 Meter Pump Cable & 1.5 Meter Power Supply Cable
• Wi‑Fi frequency 2412–2472 MHz. Download App ‘Jebao Aqua’ from the Apple App Store or Google Play, or scan the QR code in the manual
• Feeding Mode – pauses flow for 10 minutes, then resumes the pre‑programmed setting
Modes:
• Wave Pattern – Simulate natural waves as in the sea
• Tidal Mode – Gradient power output, small to large in a continuous cycle
• Constant Current Mode – Fixed output for wave leveling and stabilisation
• Turbulence Mode – Irregular output to form strong turbulent waves
• Shift to Flow Mode – Requires two pumps to alternate wave and flow in cycles
The ALW circulator series uses the latest technology also found in the AOW series, delivering up to 20% more efficiency at the same power consumption. Compact, quiet, and powerful, it’s ideal for coral health, detritus suspension, and overall aquarium circulation.
12 Month UK Supply & Warranty
ALW5
Power: 7.5w
Adjustable Flow Rate: 900 to 3,000 litres per hour
Suitable for glass thickness of up to 8mm
Tank Length: 300mm to 500mm
Dimensions: 57mm Diameter x 42mm Deep
Voltage: Input: 100-240v, 50/60Hz: Output: 0.7A 24v
ALW10
Power: 10w
Adjustable Flow Rate: 1,200 to 4,000 litres per hour
Suitable for glass thickness of up to 8mm
Tank Length: 400mm to 600mm
Dimensions: 61mm Diameter x 51mm Deep
Voltage: Input: 100-240v, 50/60Hz: Output: 0.7A 24v
ALW20
Power: 20w
Adjustable Flow Rate: 3,000 to 10,000 litres per hour
Suitable for glass thickness of up to 12mm
Tank Length: 600mm to 1000mm
Dimensions: 73mm Diameter x 55mm Deep
Voltage: Input: 100-240v, 50/60Hz: Output: 1.0A 24v
ALW30
Power: 30w
Adjustable Flow Rate: 3,900 to 13,000 litres per hour
Suitable for glass thickness of up to 15mm
Tank Length: 1000mm to 1500mm
Dimensions: 78mm Diameter x 60mm Deep
Voltage: Input: 100-240v, 50/60Hz: Output: 1.5A 24v
