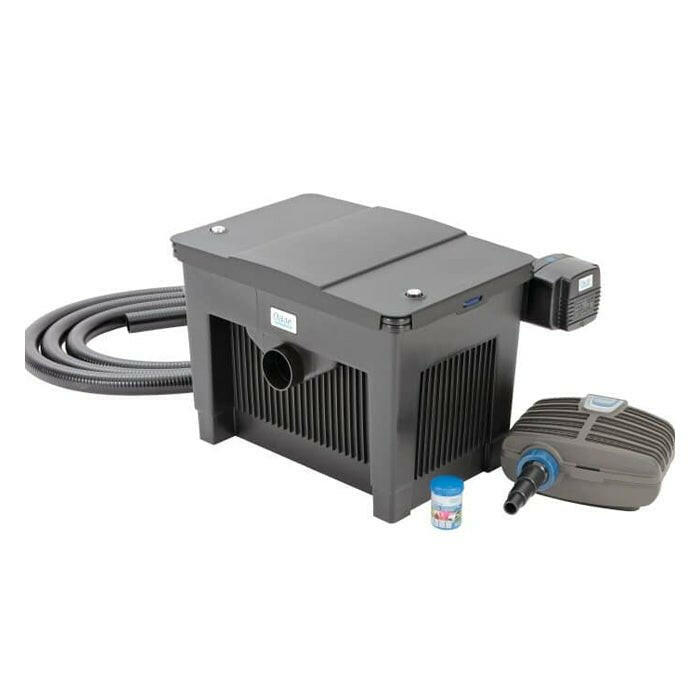

Powerful flow-through filter for garden and fish ponds. The combination of filter foam and integrated UVC clarifier ensures best filter performance: Various filter sponges ensure optimum mechanical and biological filtration. For cleaning, the flow-through filter has levers for compressing dirt out the filter sponges as well as a bottom drain and a rinse connection.
Toxic ammonia, nitrite and nitrate are effectively transformed into harmless end products in the different foams.
Nitrification and de-nitrification zone
Toxic ammonia, nitrite and nitrate are effectively transformed into harmless end products in the different foams.
Temperature display
The thermometer indicates the current water temperature at all times.
Incl. OASE Clear Water Guarantee
Oxygen enrichment through special water channelling
Cleaning handles for convenient maintenance
Including displays for pollutant level and water temperature
Sludge drain for easy removal of coarse debris
Easy to conceal; the filter can be recessed into the ground to third of its height
Filters and pumps are optimally matched
Suitable for ponds up to 18.0 m3
Included in the scope of delivery: Vitronic UVC 18 W; 5 m 1 ½” (38 mm) hose and AquaMax Eco Classic 5500: 60 W; 5300 l/h Qmax; 2.8 m Hmax
Combination of mechanical biological cleaning and effective UVC technology
Incl. 100 ml BioKick Filter Starter* only BioSmart Set 18000 - /36000
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption UVC W 18
Power cable length UVC m 5.00
Limited Warranty Years 2
UVC power W 18
Number of filter foams, total Units 4
Number of blue filter foams Units 2
Number of red filter foams Units 1
Number of green filter foams Units 1
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾", 1", 1 ¼", 1 ½"
Outlet connections DN 75
Sludge discharge connections DN 50
Corresponding filter/watercourse pump AquaMax Eco 5500
Power consumption pump W 60
Max. flow rate l/h 5500
Power cable length pump m 10.00
Suitable for ponds up to max.m3 18.0
Suitable for ponds with fish stock m3 9.0
Suitable for ponds with koi m3 4.5
