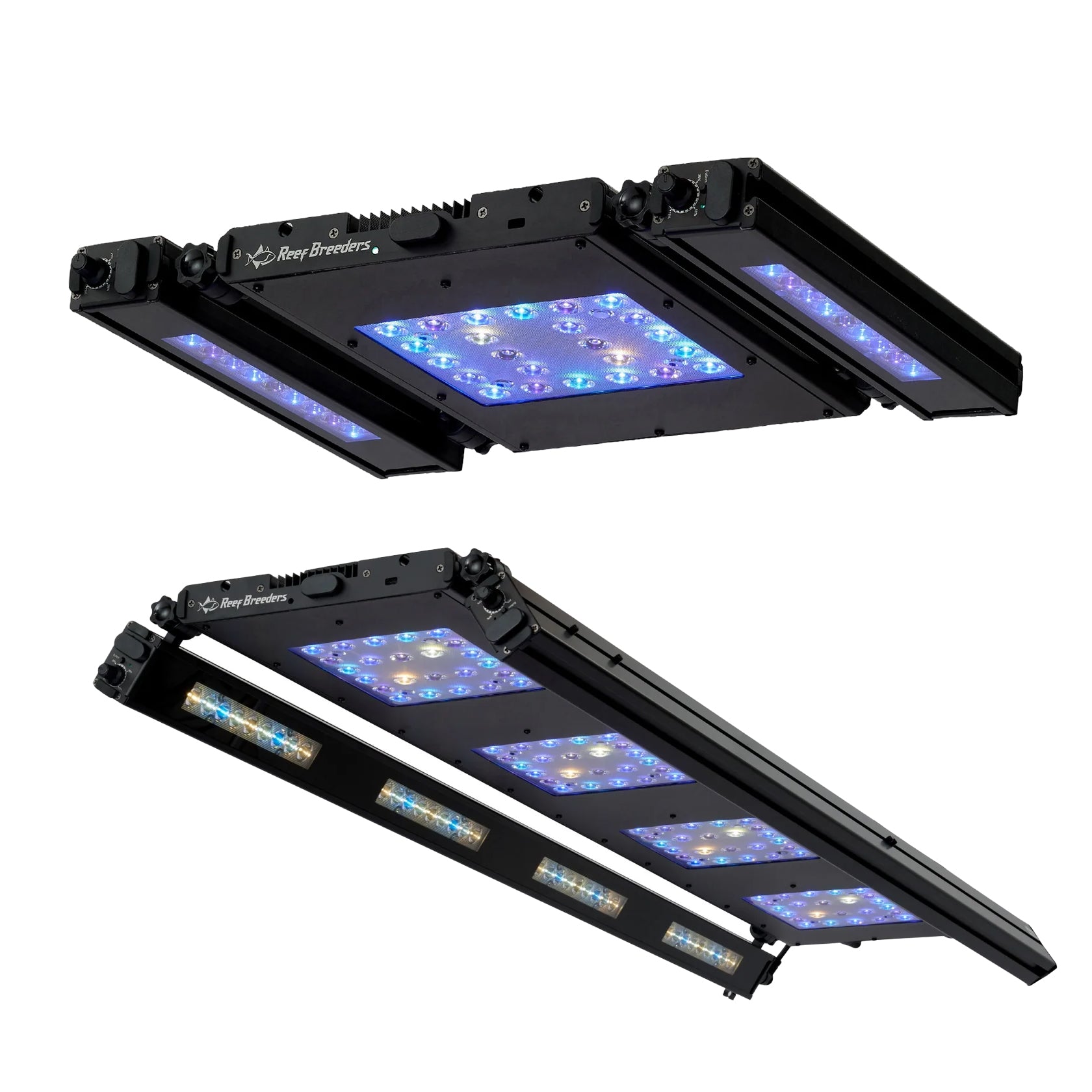

BUNDLE IS MERIDIAN SHALLOW REEF LED LIGHT AND 2 X UV/BLUE HYBRID EDGE BARS
This is a kit combining the Meridian with 2 Edge bars. It includes all the hardware you need to connect the Edge Bars to your Meridian, and the correct power supply and daisy chain hardware to run the entire assembly on the same power supply.
Introducing the ReefBreeders Meridian Series:
The Meridian was created with a focused purpose: to give reef keepers the strongest growth, the strongest color, and the cleanest overall look that modern lighting can offer. Most users immediately notice that their aquarium appears clearer and easier to see, almost as if the tank has shifted into true high-definition. Coral edges become more defined, natural textures become visible, and the entire reef looks sharper from every viewing angle.
Real Coral Response
Coral results are often dramatic. Many hobbyists see colonies grow faster, long-term slow growers begin putting on new tissue quickly, frags heal faster, and corals produce colors they had never seen under previous lighting. Most aquaculture operations report major improvements within three months, often including completely new growth patterns and color expression.
The Spectrum That Drives It
The Meridian achieves this through an extended violet range from 400 nm through 440 nm, including true 440 nm indigo LEDs. These wavelengths support rapid tissue recovery, strong color development, and steady growth that limited-spectrum fixtures struggle to provide.
Efficiency That Pays for Itself
The Meridian is extremely energy efficient. In real-world comparisons with leading competitors, it has produced roughly 50 percent more PAR while using roughly 50 percent less electricity. This results in higher performance with noticeably lower energy costs.
Modular and Expandable
Multiple Meridians and Edge bars can run from one power supply, supporting up to six hundred watts of combined output while reducing outlet use and cable clutter. The system grows effortlessly as the reef grows.
Flexible Installation
The Meridian can be suspended, mounted to the back or sides of the aquarium, or integrated into a T track system. The Integrated Connection System links fixtures end to end, and Edge Articulating Mounts allow precise adjustments for complete coverage.
Precision Optics
The Ocular Holo Matrix optic system offers three optical profiles suited for different tank depths and aquascapes.
Simple and Reliable Control
The ReefBreeders app provides cloud based WiFi access, Bluetooth allows quick local adjustments, and the optional Manual Controller offers direct on-device control with smooth sunrise and sunset transitions.
Built for the Long Term
The Meridian is built for long-term reliability and long-term support. For reef keepers who want stronger growth, deeper color, clearer detail, and an energy efficient light that lowers electricity costs, the Meridian delivers that experience with confidence.
Specifications Continued:
- 1 power input and 1 power output port for daisy chaining (larger power supply and cables required)
- Adjustable M6x1.0mm bolts on top of case
- Note: Mounting Hardware like side legs, back of tank mounts, and hanging wires sold separately.
- Front and rear tracks for mounting edge bars
- Port on top of light case for attaching manual controller
- 2.4GHz wifi control (bluetooth available soon) via ReefBreeders app
The Shallow Reef LED layout differs from the original spectrum by doubling the number of white LEDs for a more natural, shallow-water reef look. In addition, the 3.5K warm white LEDs are split off from the 5.5K neutral whites. This allows for more color tone adjustment, for example the warm white LEDs can be turned up for a warmer look, or the cool whites for a crisp appearance.
Edge Bars
Introducing the Meridian Edge Bars, the latest in lighting technology created specifically to grow vibrant, thriving coral. Engineered for serious coral enthusiasts, the Edge Bars deliver peak performance, exceptional flexibility, and precise control, enhancing coral health and growth like never before.
On their own each Edge Bar provides 6 to 8 inches of powerful, targeted coverage at a 10-14inch mounting height. When combined with a Meridian, they extend total front-to-back coverage from 24 inches to 30 inches, ensuring even the largest coral colonies receive optimal light from all angles.
UV/Blue Hybrid: A mix of royal blue, near-UV, Violet, and Indigo to enhance coral coloration and stimulate growth.
• Manual Control: Simple one-channel control with 75% max output and built-in 8, 10, or 12-hour timers.
• App & Manual Control: Unlocks full 100% power with dual-channel control through the Reef Breeders app. Bluetooth support is coming soon via a software update.
Every manual Edge Bar can be upgraded to full app control with a quick and easy hardware swap, so you’re never locked into one option.
The game-changing Ocular Hollow Matrix (OHM) Optics focus light exactly where corals need it, penetrating deeper into the tank than traditional LED bars. With over three times the PAR per square inch compared to LumenBars, the Edge Bars provide the intensity needed for serious coral growth even in tanks 30 inches or deeper.
The Edge articulating mounts allow precise angling, letting you direct light exactly where it’s needed. This means corals get light from multiple angles, leading to healthier, more evenly developed growth. No other light on the market offers this level of flexibility and customization.
Designed with a durable aluminum body and sleek black finish, the Edge Bars integrate seamlessly into any reef setup. With the optional Octo Cable, you can connect multiple bars to a single power source for a cleaner, more efficient setup.
The Meridian Edge Bars set a new standard in reef lighting—combining power, precision, and adaptability in a sleek, professional-grade package. Whether you're fine-tuning the spectrum for specific coral species or expanding your setup with app-controlled customization, the Edge Bars grow with your reef.
Built for performance, designed for flexibility, and engineered for results, they're the ultimate upgrade for serious reef-keepers looking to elevate coral health, coloration, and growth.
Meridian Specification

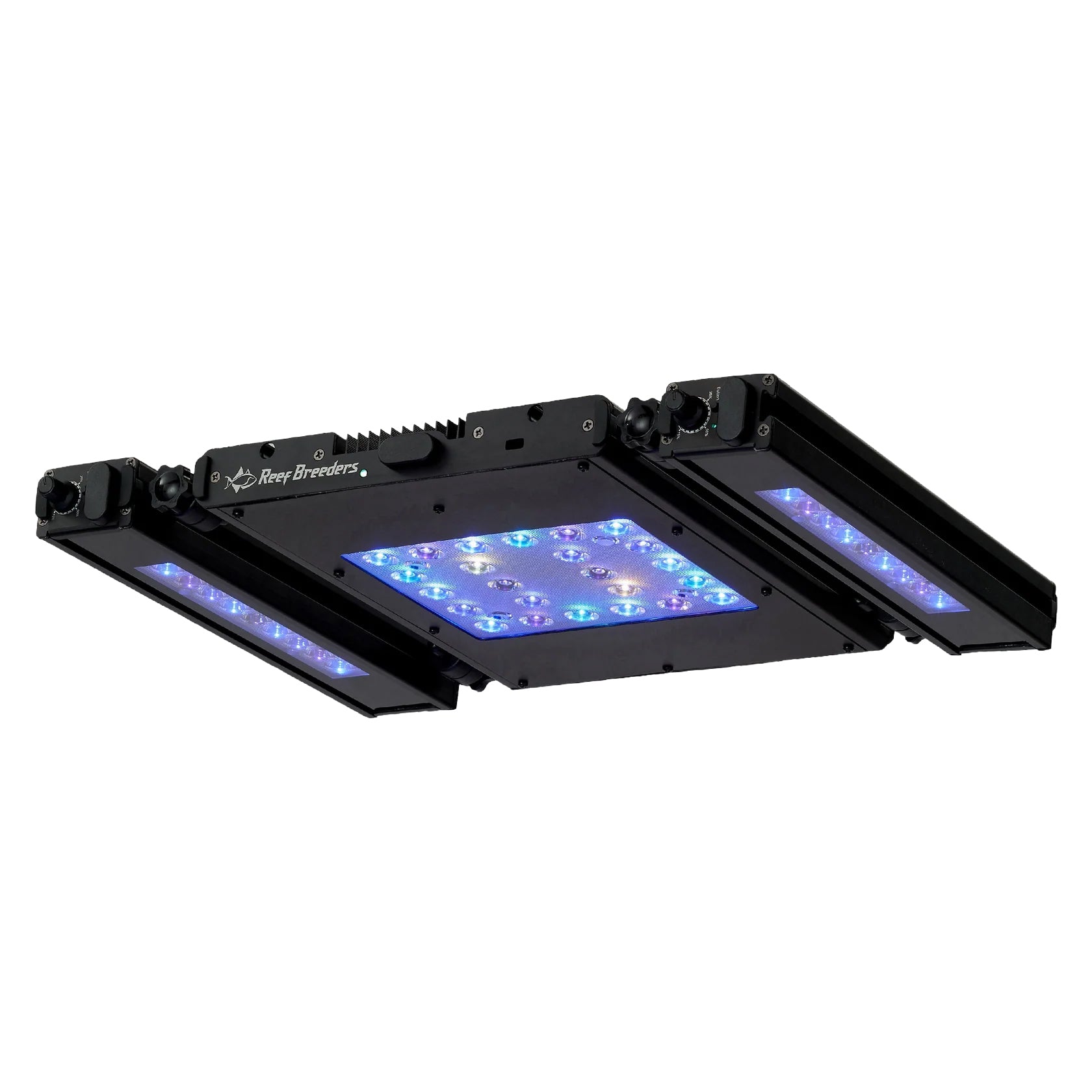

Meridian 11
- Recommended Mounting Height: 10-14" (25-35cm) above waterline with OHM Balance Optics
- 75watts max power draw
- Case dimensions LxWxH: 11" (28cm) x 8.5" (22cm) x 1.15" (2.29cm)
- Weight: 2.85lbs (1.3kg)
- 12.9" (33cm) long including plug and antenna cover
- 1.4" (3.56cm) case height including screws, bolts, and fan cover.
- 2 year warranty on light, 1 year on power supply
Coverage Area:
- Balance Optics: 14 by 14 inches (35 by 35 cm) SPS
- Balance Optics: 24 by 24 inches (60 by 60 cm) Mixed Reef
- Encompass Optics: 30 by 30 inches (75 by 75 cm) Mixed Reef

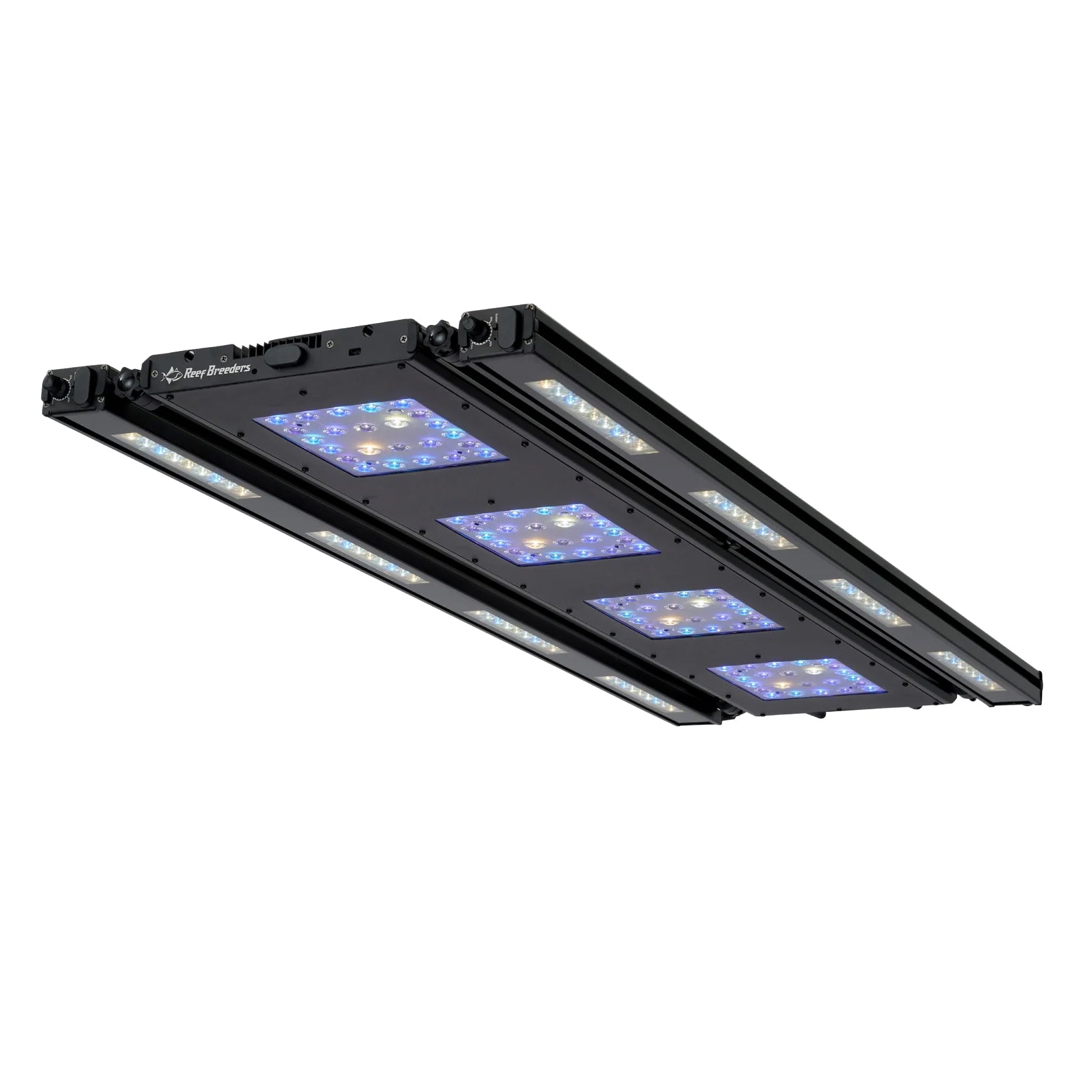

Meridian 45
- Recommended Mounting Height: 10-14" (25-35cm) above waterline with OHM Balance Optics
- 300watts max power draw
- Case dimensions LxWxH: 44.4" (112.75cm) x 8.5" (22cm) x 1.15" (2.29cm)
- Weight: 11lbs (5.5kg)
- 46.4" (117.85cm) long including plug and antenna cover
- 1.4" (3.56cm) case height including screws, bolts, and fan cover.
- 2 year warranty on light, 1 year on power supply
Coverage Area:
- Balance Optics: 48 by 24 inches (120 by 60 cm) SPS
- Balance Optics: 60 by 24 inches (150 by 60 cm) Mixed Reef
- Encompass Optics: 60 by 30 inches (150 by 75 cm) Mixed Reef

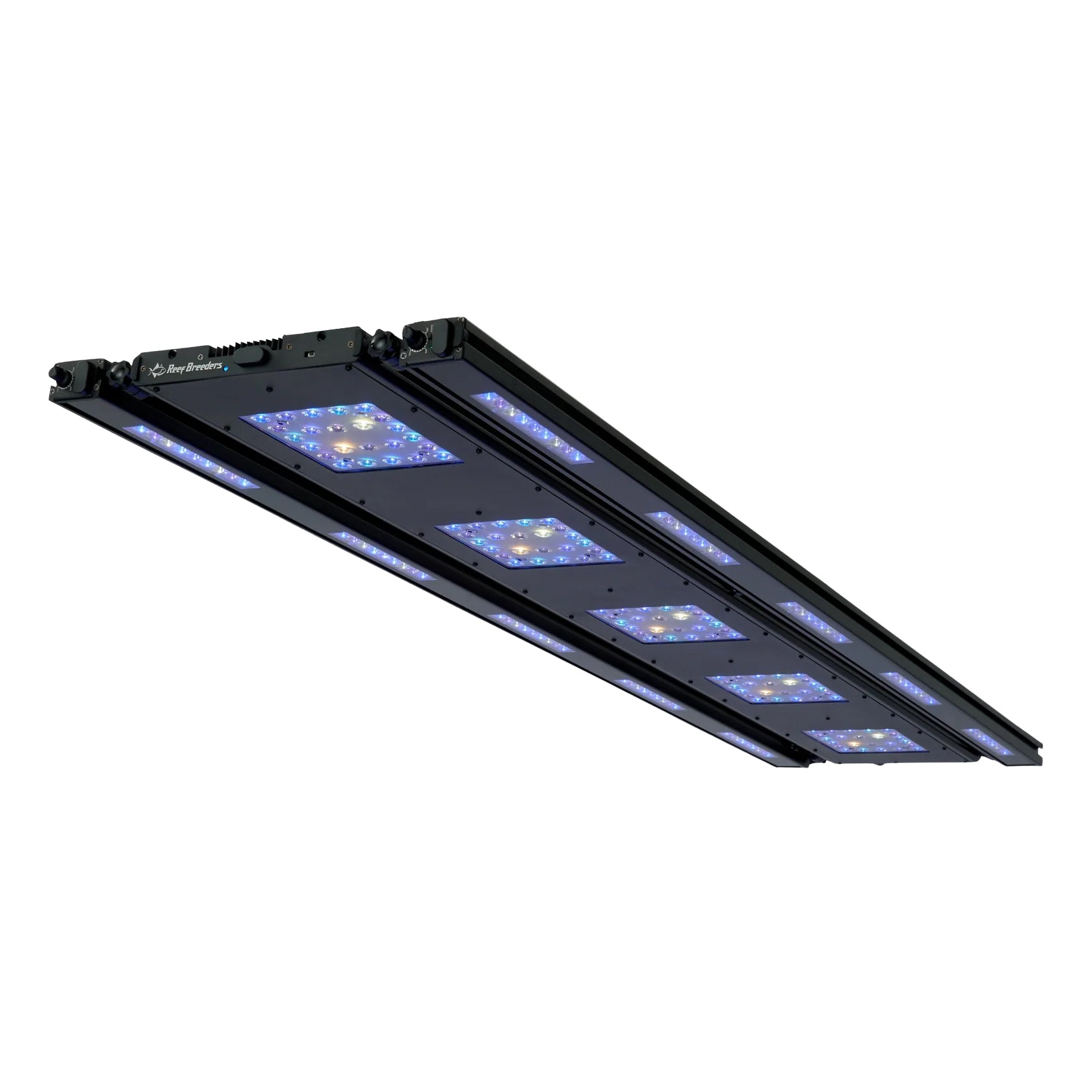

Meridian 63
- Recommended Mounting Height: 10-14" (25-35cm) above waterline with OHM Balance Optics
- 375watts max power draw
- Case dimensions LxWxH: 63.1" (160cm) x 8.5" (22cm) x 1.15" (2.29cm)
- Weight: 15.45lbs (7kg)
- 65.1" (165.35cm) long including plug and antenna cover
- 1.4" (3.56cm) case height including screws, bolts, and fan cover.
- 2 year warranty on light, 1 year on power supply
Coverage Area:
Note: older aqueon style aquariums with black plastic center braces will cause shading under some of the LED clusters. We recommend 2 x Meridian 35s, or 3 x Meridian 11s for tanks with black plastic center braces.
- Balance Optics: 60 by 24 inches (150 by 60 cm) SPS
- Balance Optics: 72 by 24 inches (180 by 60 cm) Mixed Reef
- Encompass Optics: 72 by 30 inches (180 by 75 cm) Mixed Reef
