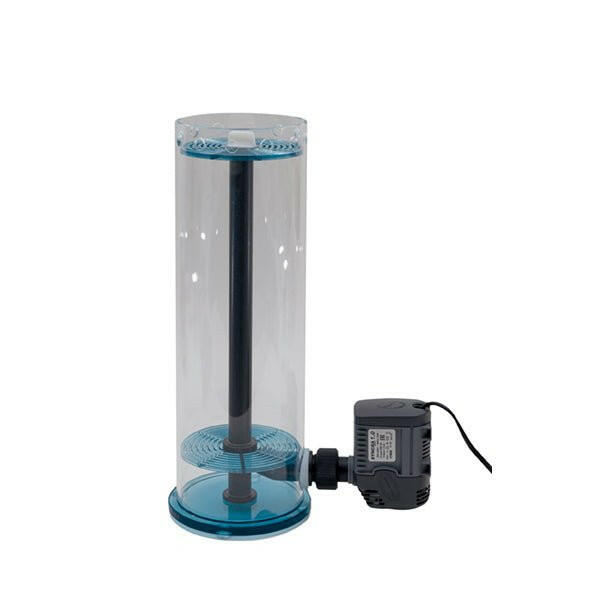

The Fauna Marin Multi-Filter is a versatile media chamber that can be used as a bio-pellet reactor or media reactor.As media reactor, the Multi-Filter can hold various types of filtration media:
Product Specifications
Multi-Filter 1.5 Liter
Dimensions: 9.4" x 5.5" x 13.8" (L x W x H)
Capacity: Approximately 1.5 L
Includes: Multi-Filter 1.5 L and controllable pump
Assembly and Installation
Step 1 Assemble the Multi-Filter by connecting the included pump to the body of the filter. Make sure the pump is fully open, see operating instructions enclosed with the pump.
Step 2 Find a suitable area in your sump and place the Multi-Filter in that area. If possible, position the filter in front of a skimmer. This will allow the reactor media to more efficiently reduce nutrients. The reactor should not sit in a water level above 9.8" - 11.8". Make sure the reactor is standing straight at all times. Otherwise, performance will be compromised.
Step 3 Remove the upper middle screw and screen, then add your filter media of choice. Re-position the screen and slightly tighten screw.
Step 4 Adjust the pump outflow rate by turning the dial on the pump itself. Make sure the filter media is tumbling gently and not getting tossed around the reactor.Ensure that the filter media is always tumbling and getting sufficient water flow.
MaintenanceIn order for the reactor to maintain performance, we recommend you perform regular maintenance on the reactor.
Weekly maintenance
- Fauna Marin Carb L activated carbon
- Fauna Marin NPO Redu pellets
- Fauna Marin Phos 0,04
- Fauna Marin Power Phos
- Fauna Marin Ultra Phos
- You can also comfortably mix Carb L and PO4 media together in one chamber without any issues.
Product Specifications
Multi-Filter 1.5 Liter
Dimensions: 9.4" x 5.5" x 13.8" (L x W x H)
Capacity: Approximately 1.5 L
Includes: Multi-Filter 1.5 L and controllable pump
Assembly and Installation
Step 1 Assemble the Multi-Filter by connecting the included pump to the body of the filter. Make sure the pump is fully open, see operating instructions enclosed with the pump.
Step 2 Find a suitable area in your sump and place the Multi-Filter in that area. If possible, position the filter in front of a skimmer. This will allow the reactor media to more efficiently reduce nutrients. The reactor should not sit in a water level above 9.8" - 11.8". Make sure the reactor is standing straight at all times. Otherwise, performance will be compromised.
Step 3 Remove the upper middle screw and screen, then add your filter media of choice. Re-position the screen and slightly tighten screw.
Step 4 Adjust the pump outflow rate by turning the dial on the pump itself. Make sure the filter media is tumbling gently and not getting tossed around the reactor.Ensure that the filter media is always tumbling and getting sufficient water flow.
MaintenanceIn order for the reactor to maintain performance, we recommend you perform regular maintenance on the reactor.
Weekly maintenance
- Clean the upper screen with a soft brush
- Clean the drain openings with a soft straw brush or pad
- Clean the outer side-walls of the reactor with a pad
- Clean pump body
- Remove and clean lower screen by disassembling the reactor body.
- Open center screw of the PVC pipe, remove upper screen.
- Turn the lower screen on the center PVC pipe (threaded at the base)
- Re-assemble
