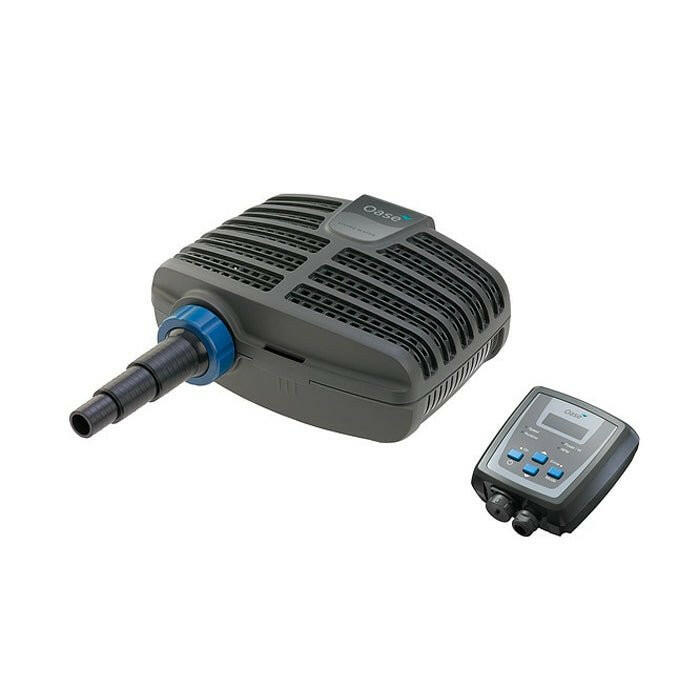

The contemporary classic featuring state-of-the-art technology — the controllable entry-level series of filter and watercourse pumps from OASE
Three energy-efficient sizes with integrated controller for convenient external control
Smart controllable with the OASE app Easy Switch
Easy installation and maintenance thanks to a secure plug connection to the controller
Uncompromisingly reliable, with a great cleaning power; it pumps pond water and coarse debris particles, up to 8 mm in size, into the filter
Extremely economical: Thanks to its energy-efficient motor, the AquaMax Eco Classic constantly saves electricity—and therefore money—while in operation
Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes (25/32/38 mm)
Environmental Function Control (EFC by OASE) protects against dry running and blocking
FULLY ECONOMICAL: The energy-efficient motor of the AquaMax Eco Classic saves electricity – and therefore money
INSTALLATION AND MAINTENANCE: Incredibly simple thanks to the secure connection to the controller
SWIMMING AND NATURAL POOLS: Possible to use in an external pump vault
INCLUDED: The special hose adapter with threaded collar for different hose sizes (25/32/38 mm) is included in the scope of delivery
OASE SWITCH: The new AquaMax Eco-Classic C series with integrated controller can also be controlled using a separate app on your smartphone or tablet
ENVIRONMENTAL FUNCTION CONTROL: This is EFC, by OASE: no problems caused by the pump being blocked or running dry
DIRT BE GONE: Reliable conveying of plant parts or fish faeces up to a size of 8 mm
Dimensions (L x W x H) mm 280 x 230 x 140
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption W 23 - 90
Cable length m 2.00 + 10.00
Limited Warranty Years 3 + 2
Max. flow rate l/min 146
Max. flow rate l/h 8800
Max. head height, metres m 4.50
Outlet size G 1 ½
Inlet size G 1 ½
Hose connection mm 25 / 32 / 38
Hose connection 1", 1 ¼", 1 ½"
Filter intake surface cm2 810
Max. coarse debris displacement mm 8
Electronic adjustment Yes
Usage type Submersed or Inline capable
