REEFER G3+ systems come with elegant jet-black eurobracing, ultra-clear glass bonded with high-quality euro-silicone, a high-precision gate valve, hydrodynamically superior piping, and are fully supported by reinforced marine-spec cabinets. They also include the advanced ReefControl ATO module, the base for all your aquarium monitoring needs. REEFER G3+ systems come with an extended warranty of up to 5 years.

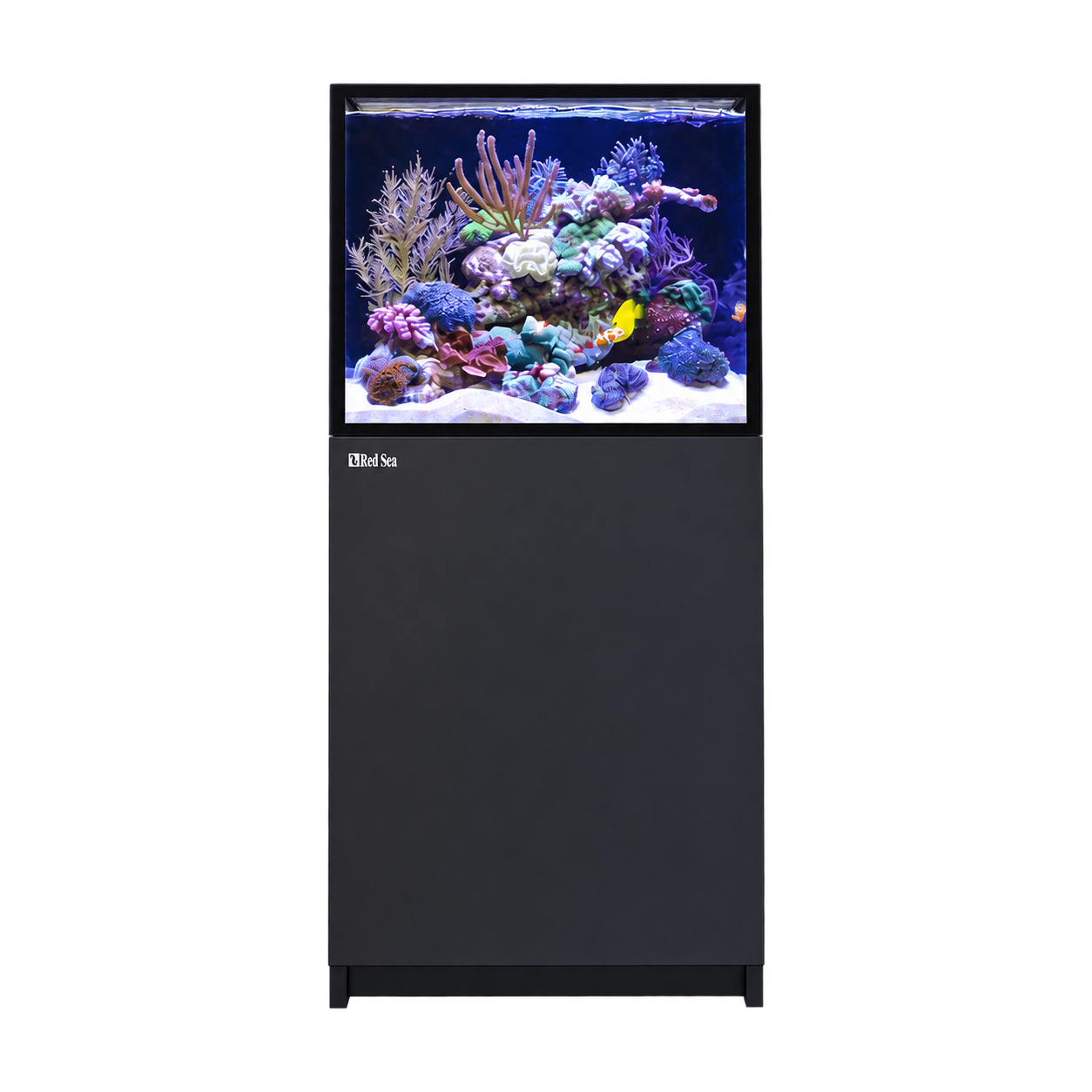

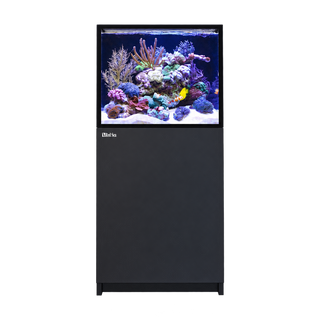

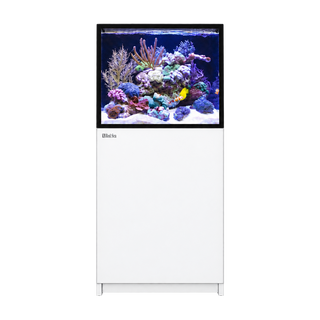

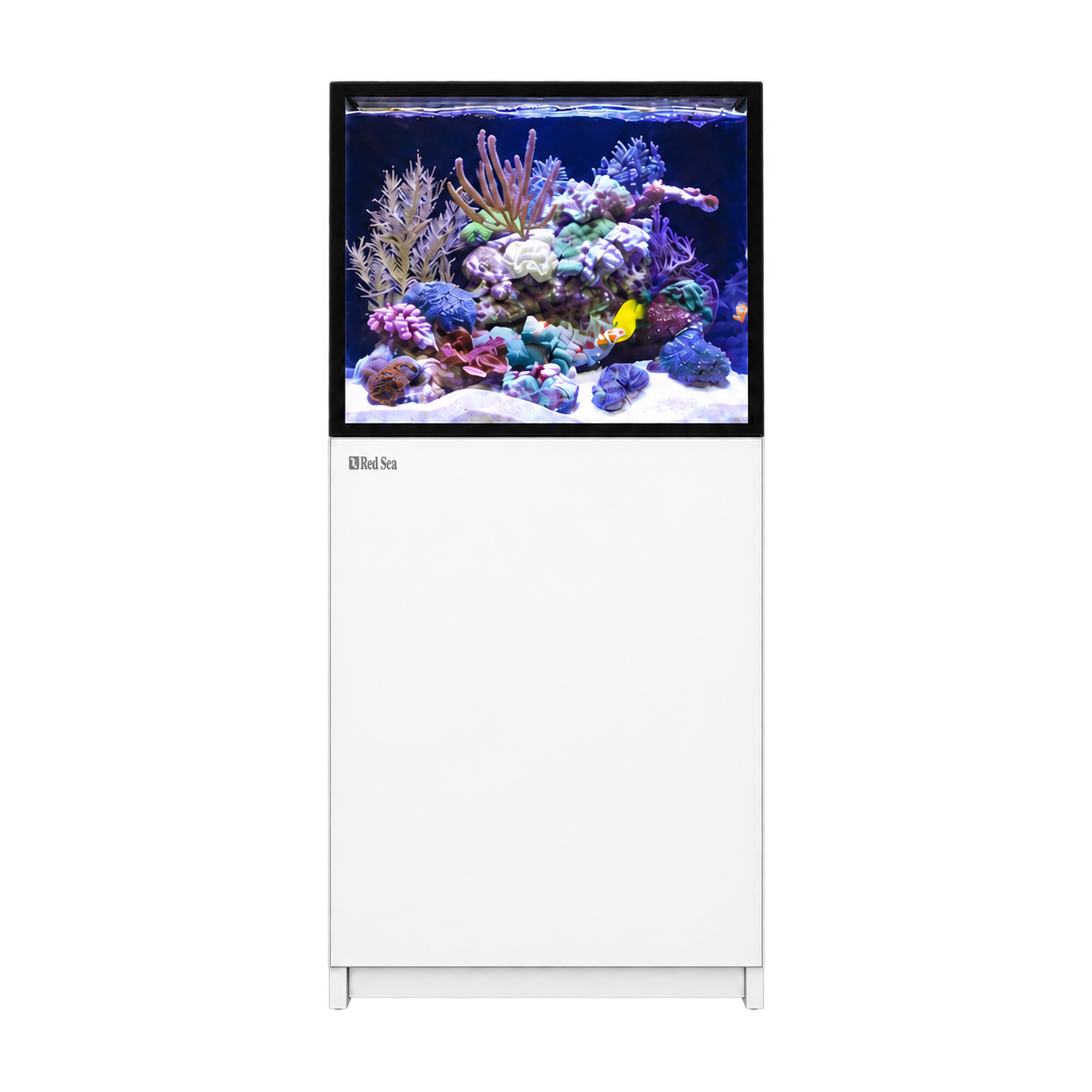

Create a compact reef display with a 60 cm aquarium that fits a smaller footprint without giving up an in-cabinet sump. The Red Sea REEFER 200 G3+ combines a 158 litre display with an in-cabinet sump, providing a manufacturer-rated total system water volume of 200 litres. Its 60 x 57.5 x 53 cm display gives you a defined space to plan rockwork, coral placement and swimming areas. As part of the G3+ range, it brings together the aquarium, cabinet, sump, plumbing and automatic top-up controls in a reef-ready foundation that you can equip to suit your reef.
Ultra-clear glass provides a clear view of your aquascape, with 10 mm front glass and 12 mm side glass. High-quality euro-silicone is used to bond the glass. The marine-spec plywood cabinet has laminated panels, epoxy-painted doors, stainless-steel hinges and adjustable levelling feet. These features combine a finished furniture appearance with access to the sump below.
he G3+ water-management design uses hydrodynamic piping and the ReefGate precision gate valve. Adjusting the downflow through the valve helps you balance the drain against your chosen return pump and reduce operating noise. The enlarged downflow inlet is designed to reduce turbulence, while the removable surface-skimming combs make the overflow easier to clean. This model has one 25 mm return outlet for a single return pump.
The in-cabinet sump places filtration equipment below the display. Its adjustable-height skimmer chamber lets you set the operating water depth to suit the requirements of your chosen protein skimmer. The mechanical filtration section includes one filter sock. The removable mechanical filtration compartment makes the sump ReefMat-ready, so you can add a compatible automatic roller filter as an upgrade.
ReefControl Lite and the ATO Module are included. Automatic freshwater top-up replaces water lost through evaporation, helping maintain the system water level and salinity, while integrated temperature monitoring supports day-to-day checks. The Lite controller supports up to two ReefSense probes or sensors and one 12 V DC device. You can expand monitoring and control with optional compatible ReefSense devices and ReefControl Power as your setup develops.
Technical specifications
|
Specification
|
Details
|
|
Total system water volume
|
200 litres
|
|
Display tank water volume
|
158 litres
|
|
In-cabinet sump water volume
|
42 litres
|
|
Display dimensions L x W x H
|
60 x 57.5 x 53 cm
|
|
Total system height
|
140 cm
|
|
Front glass thickness
|
10 mm
|
|
Side glass thickness
|
12 mm
|
|
Bottom glass thickness
|
10 mm
|
|
Return outlets
|
1 x 25 mm (Single pump)
|
|
Skimmer chamber footprint
|
30 x 28 cm
|
|
Pump chamber footprint
|
17 x 30 cm
|
|
Sump operating water height
|
17-23 cm
|
|
ReefControl controller
|
Lite with ATO Module
|
|
Refugium-ready sump
|
No
|
|
Split sump
|
No
|
|
Mechanical filter socks
|
1
|
|
Media cups
|
Not included
|
|
Cabinet frame
|
Marine-spec plywood
|
|
Slide-out control panel
|
Not included
|
|
Manufacturer warranty
|
3 years; extended to 5 years with registration within 90 days, subject to terms
|
