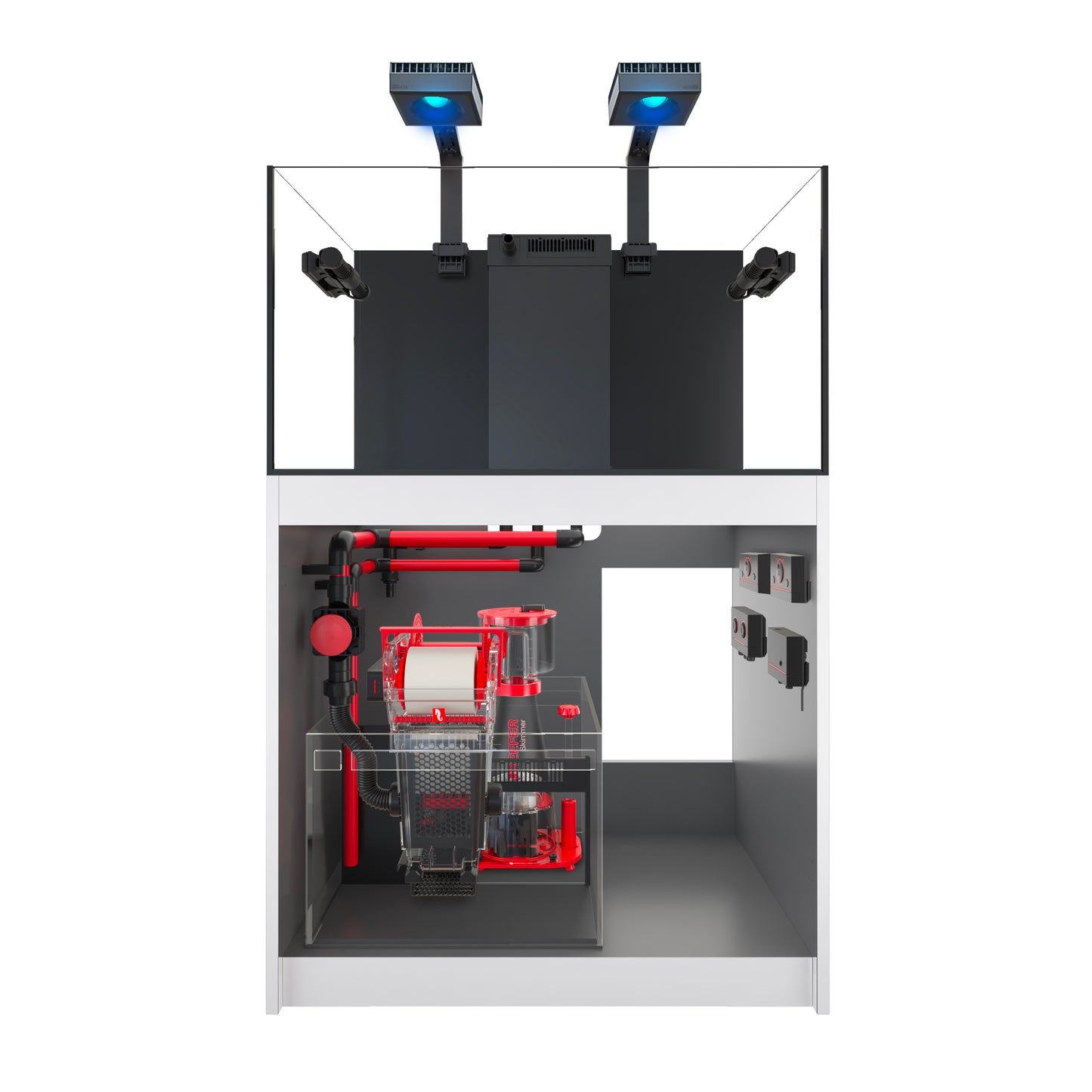

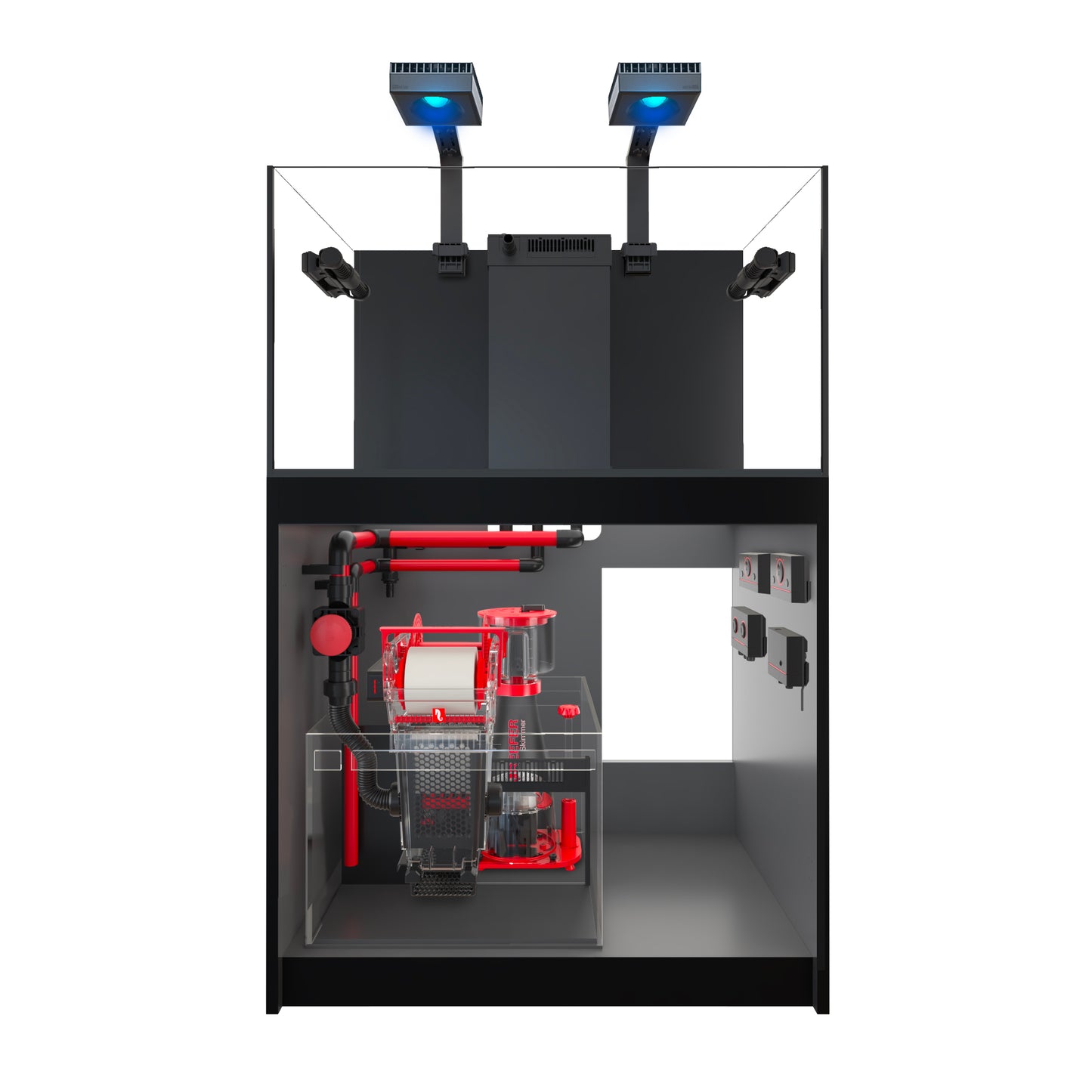

The premium REEFER MAX series features the entire REEFER G2+ range in a Plug & Play configuration that includes smart lighting, filtration, and circulation devices, so you can enjoy the full Red Sea ecosystem experience, operate every aspect via your ReefBeat App, and be at ease knowing that all the essential equipment is compatible and at the best possible price!
Equipment Included
Lighting - 2 x ReefLED G2 115
Water circulation - 2 x ReefWave25
Main System Pump - 1x ReefRun G2 4000
Protein Skimmer - RSK DC 300
ReefMat 250
Slide Out Control Panel 25

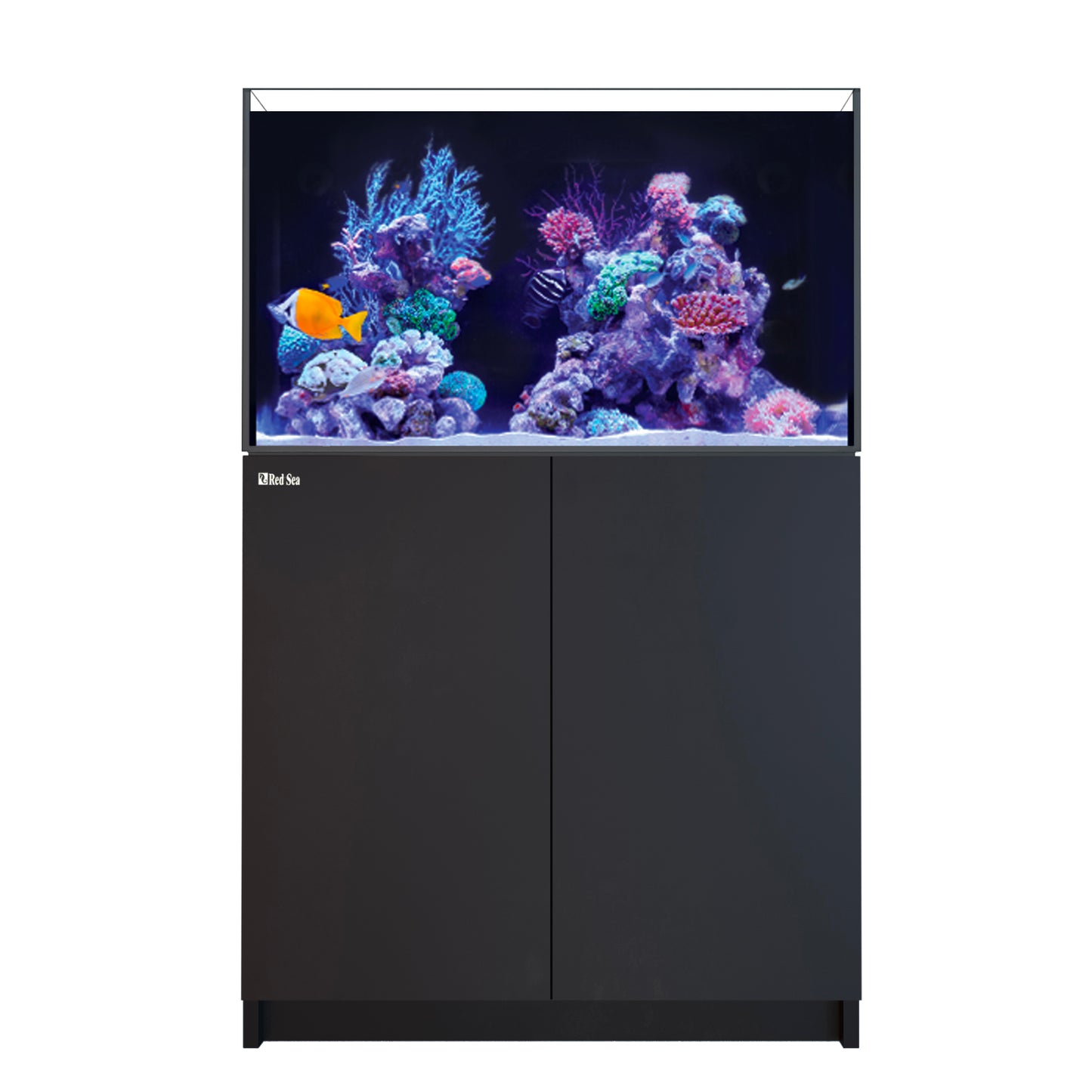

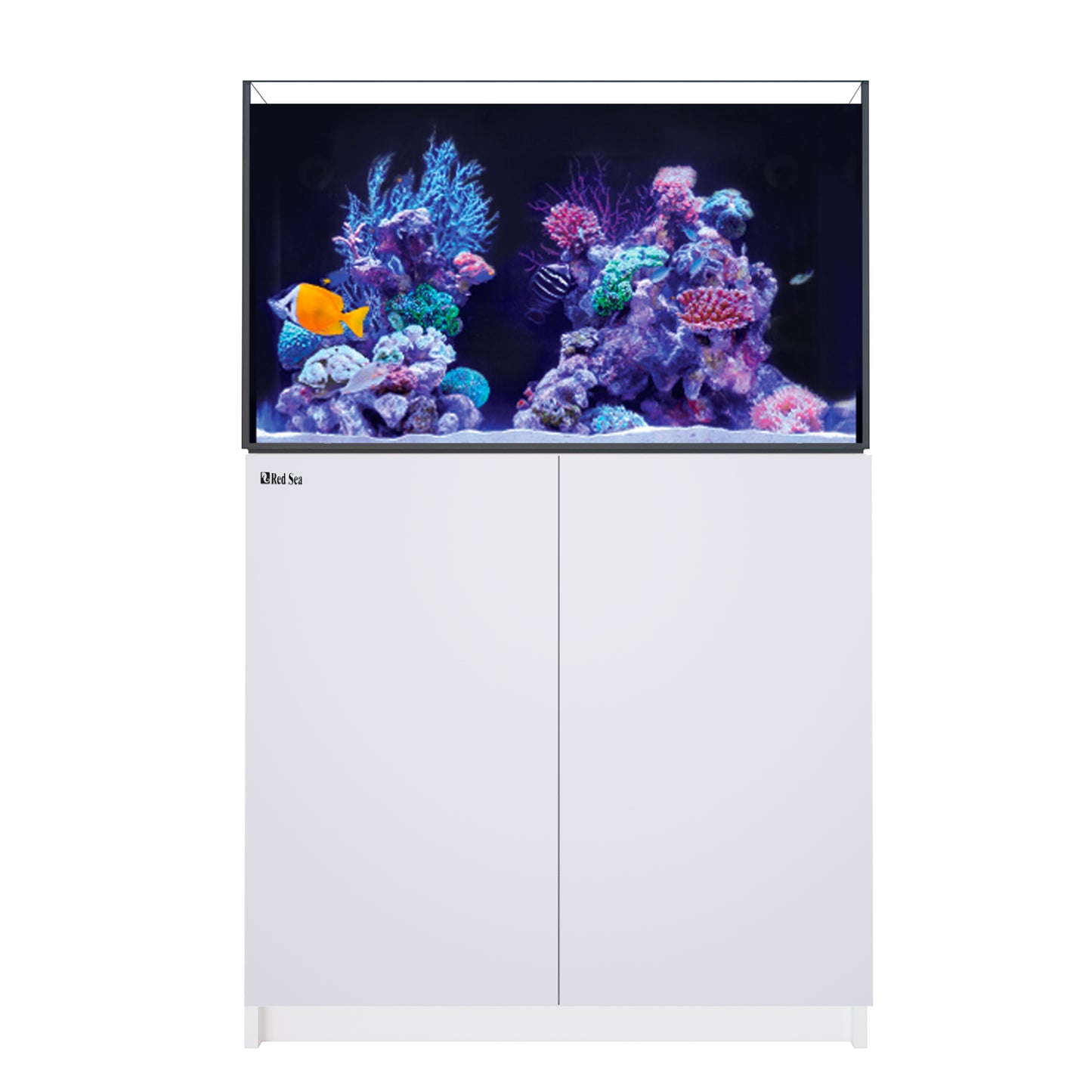

G2+ Aquarium
The REEFER G2+ series of reef-ready aquarium systems comes in a huge variety of sizes, includes top-of-the- line infrastructure, filtration, water management and the ReefATO+ system, and is designed to allow hobbyists complete freedom of choice to use all their preferred or existing hardware.
- The ReefATO+ included- an exceptionally reliable auto top-off system combined with a temperature monitor and external leak detector.
- ReefMat® ready sump that has a pull-out filter-sock / media-cup compartment and a universal connector on the downpipe, for a truly Plug and Play ReefMat installation.
- The marine-spec cabinets are extra fortified with all models being made from plywood. Reefers 625 and above all have an aluminum support under the signature protruding front of the tank.
- All systems come with 3y warranty as standard and a highly affordable 5y extended warranty.
Display tank length - 90 cm
Display tank height - 50 cm
Display tank width - 53 cm
Total system height - 140 cm
Total system water vol. - 245 L
Display tank water vol. - 203 L
In-cabinet sump water vol. - 42 L
Ultra-clear front glass - 12 mm
Ultra-clear side glass - 12mm
Bottom glass - 12mm
ReefLED G2 Lighting
The ReefLED G2s benefit from a completely new chipset in their compact arrays, delivering a richer spectrum, and thanks to their new power management feature, they can be tuned from a 10,000K reef-white to a 23,000K blue running at full intensity, which was not available in the G1. Their signature REEF-SPEC Blue has also been augmented with violet and ultra-violet and boosted to 470nm blue at the top of the spectrum, causing fish and corals to truly shine.
The ReefLED G2s are 100% Reef Safe & 100% REEF-SPEC, delivering exceptional coral growth and coloration. Setting the daytime lighting program is now super easy: just set the desired color (8000K-23000K) and intensity for different time periods of the day. In addition, the ReefBeat App now offers 5 color/intensity presets that can be manually activated, including coral photography, UV look and more.
ReefLED G2 Features
-
Stronger REEF-SPEC light output
-
Richer Reef-safe colour range
-
Easier light set-up with one colour scale and one intensity scale
-
Gentle shimmer in your aquarium
-
ReefBeat App for easy set-up, operation, notifications and automated lighting programmes
-
Optional clip on visors for reduced glare
Dimensions - 6.1 x 5.3 x 2.2 in
ReefRun G2 Pump
Red Sea has just released the second generation of these highly efficient, powerful yet virtually silent return pumps. Pumps are available in 4 models, with flow rates ranging from 4000 lph to 12000 lph (1060 gph to 3200 gph), and come with 180° rotating outlets, inlet flow guides to block air from the water surface, universal connectors, and extra-long power cables with connectors next to the pumps for easy maintenance.
The ReefRun G2 DC Pumps can be operated locally with their integrated Flow Controllers, or can be linked to ReefBeat App via the ReefRun Dual Controller for advanced features and control.
- Flow Controller for optional stand-alone operation
- Virtually Silent
- 180-Degree rotating outlet
- Inlet flow guide
- 3m power cable with connector next to pump
- Energy-efficient with lower running costs
2000 – 4000 I/h Flow MIN – MAX
3.4 m Max height
16-38 WATT
Optimal Waste Removal
The Reefer DC Skimmer features a combination of self-leveling tech, a PSK DC pump, proportionally sized venturi, a bubble diffusor and reaction body that optimizes air-water contact time.
Sensor to pump
The Reefer DC Skimmer is run via the ReefRun Dual Controller as it can also operate the ReefRun DC return pump at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Quick-actions
Select the order and timing between switching devices back on after a maintenance shutdown, such as allowing a few minutes for your return pump to restore water levels in sump and aquarium before switching on the skimmer, wave pumps and dosers.
User friendly features
Precision geared valve for positive flow regulation.
Quick release pump holder for ease of maintenance
1-meter valved waste drainage hose.
3 set-up options with skim regulator facing either the left side, right side or back.
Built-in manual neck cleaner.
Specification
53 cm / 21”
Height
PSK DC-1200
Sicce pump
500/130
Air flow (Lph/Gph)
1000/265
Water flow (Lph/Gph)
16-20 cm / 6-8”
Recommended water height
20 W
Power consumption
ReefWave Pump
The combination of an advanced, smooth running and energy efficient sine-wave motor drive, with superior vibration damping mounts and dual bearings on all models, make ReefWave a nearly silent pulsing wave pump. You can control each ReefWave pump locally through its own dedicated controller or remotely via the built-in Wi-Fi that connects easily to Red Sea’s ReefBeat app.
- Cross-flow technology wave pump for a gentle, evenly distributed flow
- Silent and energy efficient Sine-Wave DC control motor
- 5 programmable wave patterns with unique Forward/Reverse/Alternating flow modes
- Easy assembly/disassembly for maintenance
- Dedicated Wi-Fi controller for each pump
- Synchronize multiple pumps of different sizes
- ReefBeat App for easy set-up, operation, monitoring and notifications
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
Actual maximum flow rate - 7500 LPH
Power consumption - 4-25 WATT
Recommended aquarium size - 45-120 CM
Cable length - 3m
Max glass thickness - 15mm
ReefMat Filter Roller
ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, gives you a head’s up before it needs replacing, and even provide you with a daily usage log.
- Plug & Play installation with multiple sump setup options.
- Easy fleece-mat replacement system.
- Efficient, high-flow, skimmer friendly, 50 g/m2, non-woven polyester fleece-mat rolls.
- Smart drive unit – connected to the ReefBeat ecosystem.
- Solid-State internal and external water level sensors (no moving parts).
- Integrated media basket for additional chemical filtration.
- Kink-resistant, corrugated inlet hose with a USA/Metric PVC connector.
Specifications:
- Max. flow capacity: 3,500 litres per hour
- Fleece-roll width: 8cm
- Fleece-roll length: 32m
- Unit dimensions: 16 x 20 x 49 cm
- Media basket: 160ml
ReefBeat App
One interface for all of Red Seas smart devices
Easy set-up and operation
On-line monitoring and notifications
Additional app features
Peace of Mind
Timely notifications should the fleece-mat get torn, stuck or run out. In addition to the notifications the ReefMat smart-drive will automatically shut off the motor until the roll is unblocked or replaced.
End of Roll Monitor
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Performance Log
Continuously monitor performance with a detailed hourly and daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.
Customized Dispensing
The length of fleece mat dispensed can be customised allowing for optimal system performance
Mounting and Installation
The ReefMat comes fully assembled, straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump however it also has optional legs for a free-standing installation.
Both the Drive-unit and inlet hose can be positioned either side of the ReefMat, as best suits each installation.
Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) are provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
ReefATO
Exceptionally reliable and smart ATO, temperature monitor and leak detector
Smart, Safe & Quiet. The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation.
This is not just a top-up! Fully control via the ReefBeat App provides complete peace of mind with alerts via your mobile device when you are around your aquarium. Complete with an installation kit that includes tube holders, clips and non-return valves you could ever need, the ATO+ proves every last detail has been thought about, something we have come to expect from Red Sea in recent times!
In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured online digital temperature monitor and a leak detector.
ATO+ Sensor
Slim-line, multi-input, titanium probe, solid state (EC technology) water level sensor, with a built-in digital thermometer accurate to 0.1 degrees.
ATO Pump
Quiet, variable flow, serviceable ATO pump (6-10w). Diameter 4.5cm, max flow 300lph/75 gph with a max head height of 2.5 meters.
Leak Detector
Highly Sensitive, REEF-SPEC, titanium probe leak detector for RO & saltwater. Triggers notifications via the ReefBeat App and features an audible alarm.
Smart Controller
The microprocessor monitors and reliably controls all of the components and connects them to the Reef Beat eco-system.
Slide Out Control Panel
Designed with hobbyist needs in mind, Red Sea’s new slide-out Control Panel helps you to get the most out of your cabinet space by placing your dosers, controllers and other devices in one easily accessible place.
The Control Panel is designed to fit either side of your cabinet, and is made of marine-spec laminated plywood with quick-release stainless steel soft-close sliders, allowing for easy mounting and access to all your equipment.
- Marine-spec, 2 cm (0.8”) thick, black laminated plywood panel.
- Mounts on both left or right sides.
- Quick-release stainless steel soft-close sliders.
- Mounting brackets provide 3 cm (1.2?) clearance for hinges.
