Fully equipped smart systems that provide you with everything you need for a thriving reef.

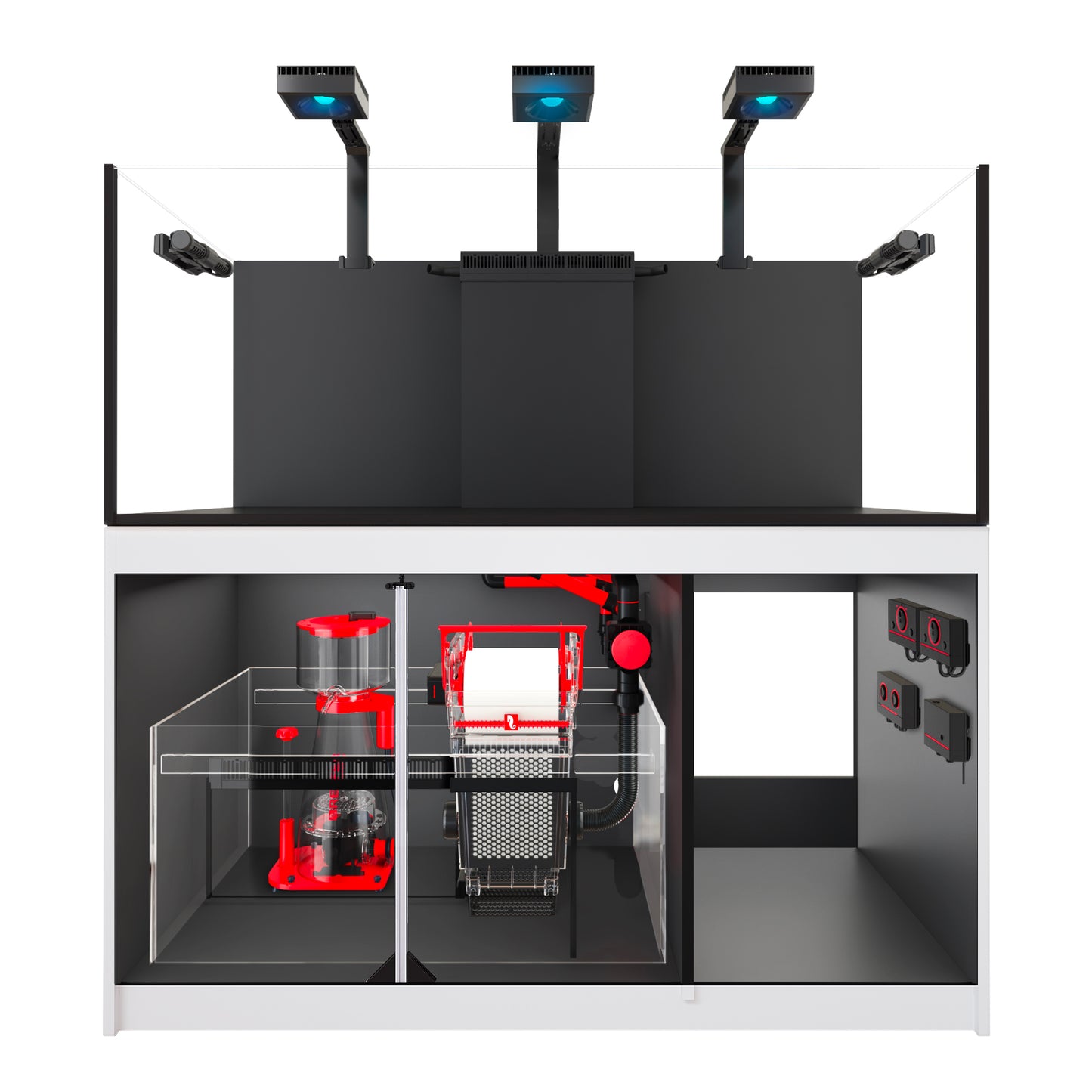

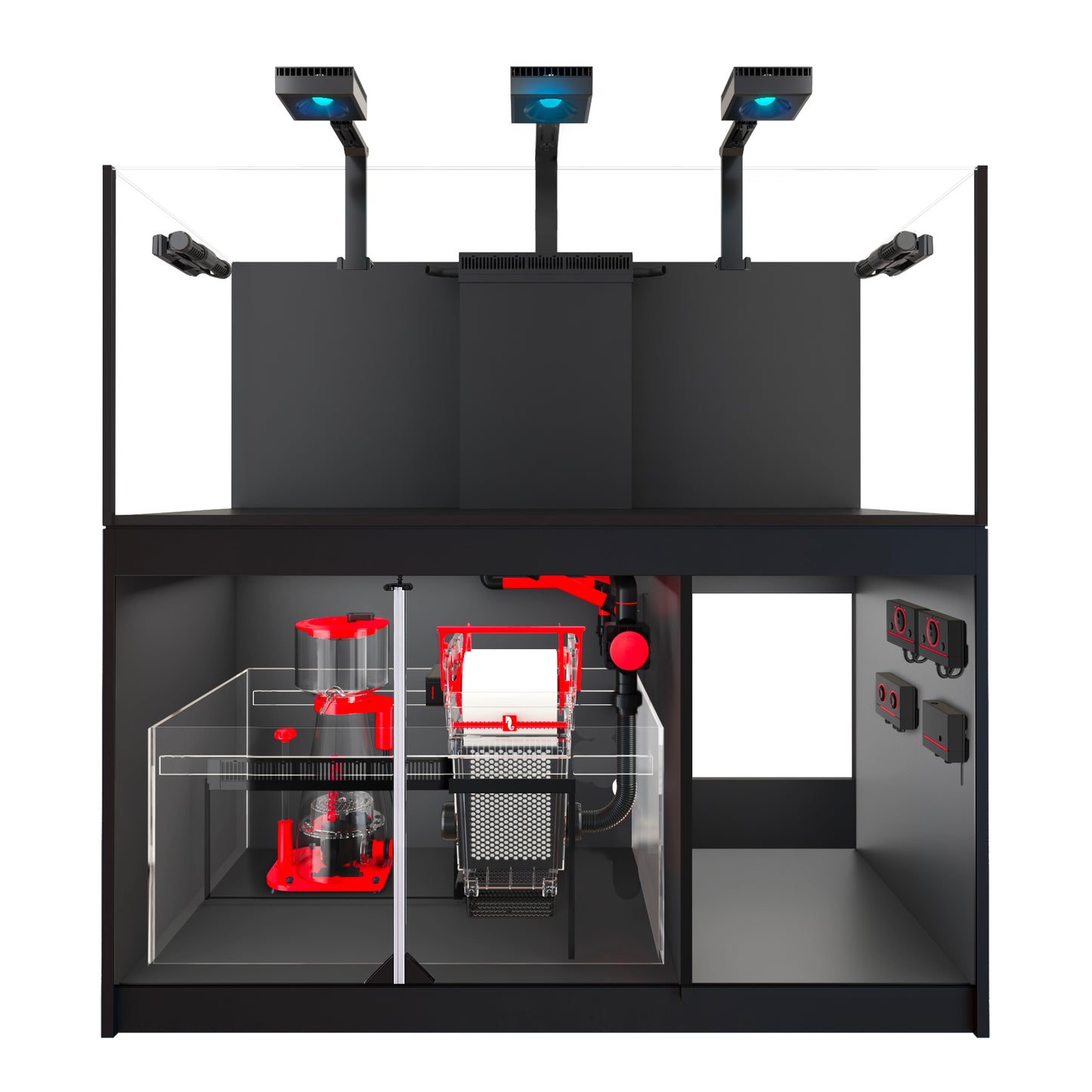

The premium REEFER MAX series features the entire REEFER G2+ range in a Plug & Play configuration that includes smart lighting, filtration, and circulation devices, so you can enjoy the full Red Sea ecosystem experience, operate every aspect via your ReefBeat App, and be at ease knowing that all the essential equipment is compatible and at the best possible price!Equipment Included
Lighting - 3 x ReefLED 90
Water circulation - 2 x ReefWave45
Main System Pump - 1x ReefRun 7000
Protein Skimmer - RSK DC 600
ReefMat 1200
ReefATO+ Kit
Slide Out Control Panel 60
Slide Out Control Panel 60

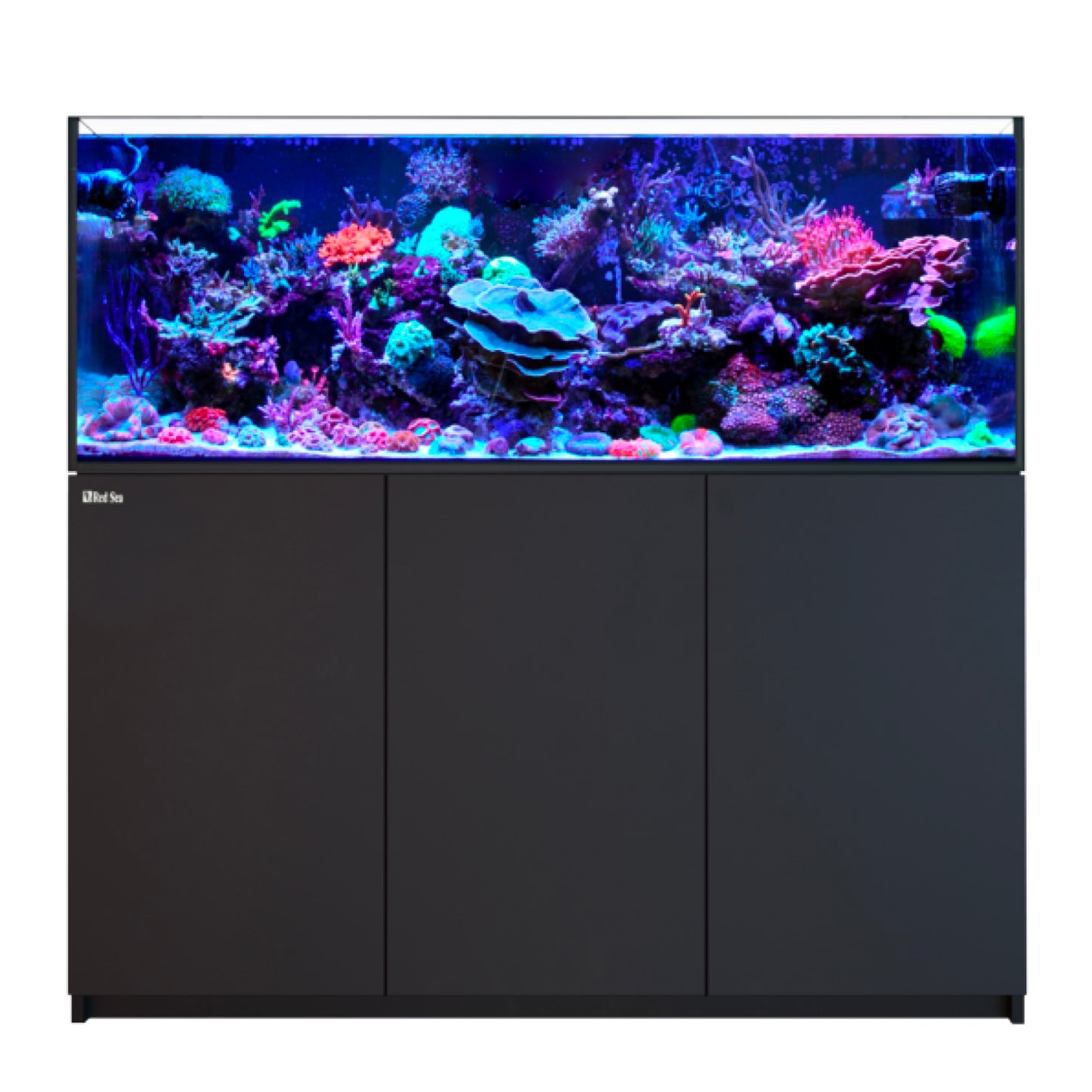

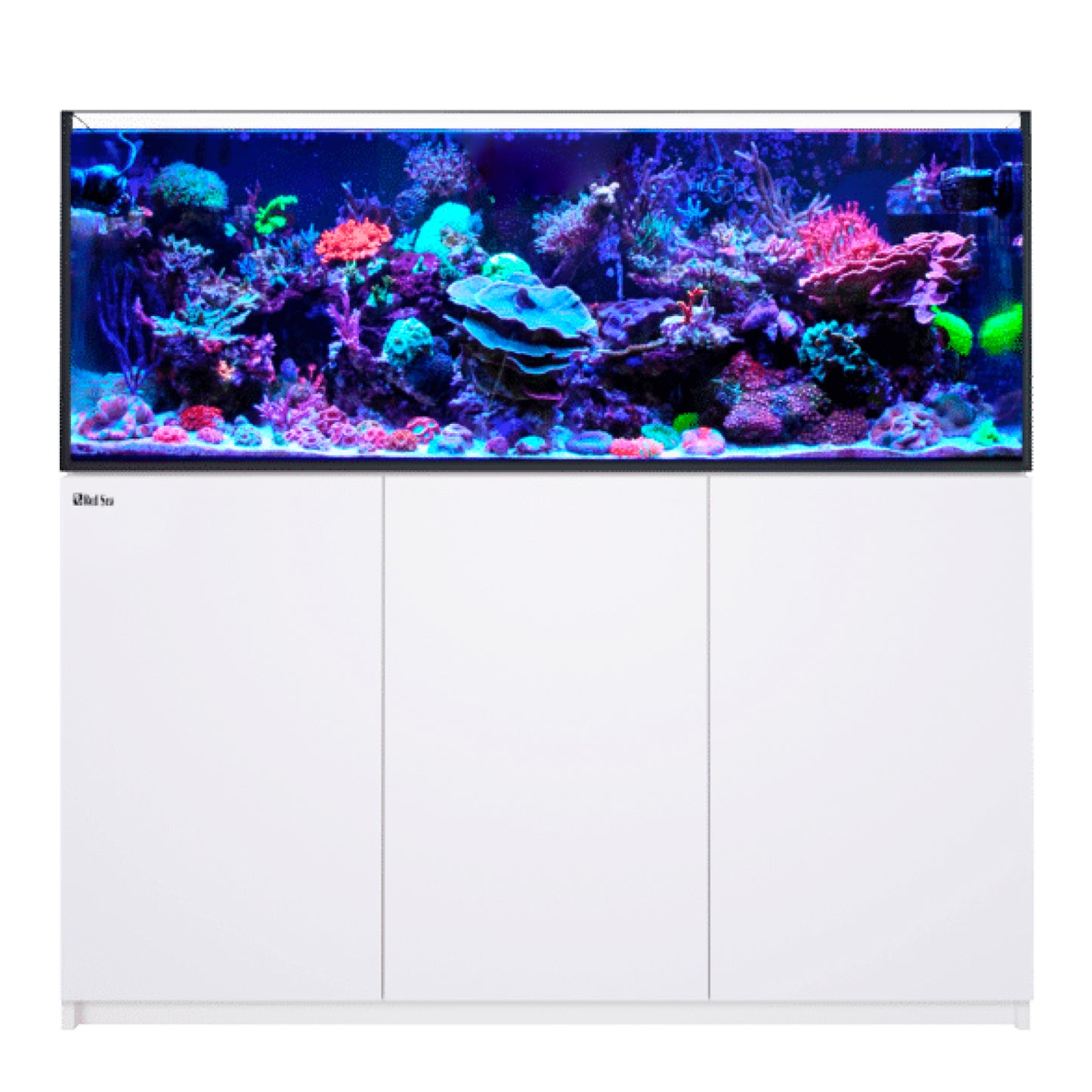

G2+ Aquarium
The REEFER G2+ series of reef-ready aquarium systems comes in a huge variety of sizes, includes top-of-the- line infrastructure, filtration, water management and the ReefATO+ system, and is designed to allow hobbyists complete freedom of choice to use all their preferred or existing hardware.
REEFER G2+ features:
- The ReefATO+ included- an exceptionally reliable auto top-off system combined with a temperature monitor and external leak detector.
- ReefMat® ready sump that has a pull-out filter-sock / media-cup compartment and a universal connector on the downpipe, for a truly Plug and Play ReefMat installation.
- The ultra-clear, beveled-edge glass has increased thickness of up to 19 mm or 0.75” with silicone protection strips on bottom and side joins.
- The marine-spec cabinets are extra fortified with all models being made from plywood. Reefers 625 and above all have an aluminum support under the signature protruding front of the tank.
- All systems come with 3y warranty as standard and a highly affordable 5y extended warranty.
- All Reefer 350 and above (120cm/47” and longer) now have dual return outlets, creating an even better water distribution.
- All models include a new and improved high precision valve and an enlarged inlet section on the downflow pipe that enables easy regulation and near silent operation.
- Extra connectors that support both metric and USA standard pipes are available for those who wish to customize their sump piping.
Display tank length - 150 cm
Display tank height - 55 cm
Display tank width - 60 cm
Total system height - 142 cm
Total system water vol. - 540 L
Display tank water vol. - 423 L
In-cabinet sump water vol. - 116 L
Ultra-clear front glass - 15 mm
Ultra-clear side glass - 15mm
Bottom glass - 15mm
ReefLED Lighting
Years of research and testing are behind Red Sea’s ReefLED™ smart reef lighting system. These lights have been designed to ensure optimal coral growth and dramatic coloration, while creating a gentle shimmer throughout the aquarium.
The ReefLED lights are guaranteed to be reef-safe and REEF-SPEC® and are very easy to set up.
The built-in wi-fi connects them directly to the internet, enabling you to control them from your smartphone using Red Sea’s ReefBeat® smart aquarium app.
At the heart of the unit is a single, compact LED array that includes a multi-wavelength, 23,000 Kelvin “REEF-SPEC Blue” channel (a proprietary blend of blue, violet and ultraviolet LEDs) which, together with an 8,000K White channel, provides a reef-safe range of color temperatures that enable all corals to flourish.
In addition, a separate dedicated 3W moonlight channel provides low levels of light for reef-safe night-time viewing.
ReefLED also includes an optical-glass, hollow lens that ensures a homogenous light spectrum with ideal PAR values throughout the aquarium, without hotspots or areas with insufficient light for coral growth.
ReefLED is controlled by Red Sea’s ReefBeat app which provides a number of preset lighting programs you can choose from as well as additional features including sunrise/sunset effects, lunar cycle moon light, random clouds and even an acclimation program for new installations. ReefBeat also provides best-practice guidelines during setup as well as useful notifications to your smartphone, for example, in the event of a power outage.
90w Compact LED Array
500 PAR at the surface, 150 PAR at 50cm Depth
80w REEF-SPEC Blue, 10w 8,000K White and 3w Moonlight
Dimensions, 15.5cm x 15.5cm x 5.7cm
Ideal PAR and Spread up to 60cm x 60cm x 60cm
The ReefRun DC return pump is run via the ReefRun Dual Controller as it can also operate the Reefer DC Skimmer at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Be notified if your pump is running dry, disconnected or malfunctioning.
Set a customized daily schedule with varying intensities.
Run two ReefRun DC pumps with your Dual controller, and operate them as a single unit.
Dimensions - 150mm (H) x 96mm (W) x 200mm (L)
Outlet 1"
Specification
Reefer DC Skimmer
Optimal Waste Removal
The Reefer DC Skimmer features a combination of self-leveling tech, a PSK DC pump, proportionally sized venturi, a bubble diffusor and reaction body that optimizes air-water contact time.
Sensor to pump
The REEFER DC Skimmers come with a dual-action solid-state sensor that monitors foam wetness and waste level, allowing the ReefRun Dual Controller to regulate the DC Pump accordingly.
The Reefer DC Skimmer is run via the ReefRun Dual Controller which is sold separately as it can also operate the ReefRun DC return pump at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Select the order and timing between switching devices back on after a maintenance shutdown, such as allowing a few minutes for your return pump to restore water levels in sump and aquarium before switching on the skimmer, wave pumps and dosers.
User friendly features
Precision geared valve for positive flow regulation.
Quick release pump holder for ease of maintenance
1-meter valved waste drainage hose.
3 set-up options with skim regulator facing either the left side, right side or back.
Built-in manual neck cleaner.
Specification
PSK DC-1200
Sicce pump
750/195
Air flow (Lph/Gph)
1500/265
Water flow (Lph/Gph)
25 W
Power consumption
ReefWave Pump
The combination of an advanced, smooth running and energy efficient sine-wave motor drive, with superior vibration damping mounts and dual bearings on all models, make ReefWave a nearly silent pulsing wave pump. You can control each ReefWave pump locally through its own dedicated controller or remotely via the built-in Wi-Fi that connects easily to Red Sea’s ReefBeat app.
ReefMat Filter Roller
ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, gives you a head’s up before it needs replacing, and even provide you with a daily usage log.
Specifications:
- Max. flow capacity: 12,000 litres per hour
- Fleece-roll width: 17cm
- Fleece-roll length: 35m
- Unit dimensions: 27 x 30 x 48 cm
- Media basket: 700ml
ReefBeat App
One interface for all of Red Seas smart devices
Easy set-up and operation
On-line monitoring and notifications
Additional app features
Peace of Mind
Timely notifications should the fleece-mat get torn, stuck or run out. In addition to the notifications the ReefMat smart-drive will automatically shut off the motor until the roll is unblocked or replaced.
End of Roll Monitor
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Performance Log
Continuously monitor performance with a detailed hourly and daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.
Customized Dispensing
The length of fleece mat dispensed can be customised allowing for optimal system performance
Mounting and Installation
The ReefMat comes fully assembled, straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump however it also has optional legs for a free-standing installation.
Both the Drive-unit and inlet hose can be positioned either side of the ReefMat, as best suits each installation.
Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) are provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
ReefATO
Exceptionally reliable and smart ATO, temperature monitor and leak detector
Smart, Safe & Quiet. The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation.
This is not just a top-up! Fully control via the ReefBeat App provides complete peace of mind with alerts via your mobile device when you are around your aquarium. Complete with an installation kit that includes tube holders, clips and non-return valves you could ever need, the ATO+ proves every last detail has been thought about, something we have come to expect from Red Sea in recent times!
In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured online digital temperature monitor and a leak detector.
ATO+ Sensor
Slim-line, multi-input, titanium probe, solid state (EC technology) water level sensor, with a built-in digital thermometer accurate to 0.1 degrees.
ATO Pump
Quiet, variable flow, serviceable ATO pump (6-10w). Diameter 4.5cm, max flow 300lph/75 gph with a max head height of 2.5 meters.
Leak Detector
Highly Sensitive, REEF-SPEC, titanium probe leak detector for RO & saltwater. Triggers notifications via the ReefBeat App and features an audible alarm.
Smart Controller
The microprocessor monitors and reliably controls all of the components and connects them to the Reef Beat eco-system.
Slide Out Control Panel
Designed with hobbyist needs in mind, Red Sea’s new slide-out Control Panel helps you to get the most out of your cabinet space by placing your dosers, controllers and other devices in one easily accessible place.
The Control Panel is designed to fit either side of your cabinet, and is made of marine-spec laminated plywood with quick-release stainless steel soft-close sliders, allowing for easy mounting and access to all your equipment.
Specification
Display tank length - 150 cm
Display tank height - 55 cm
Display tank width - 60 cm
Total system height - 142 cm
Total system water vol. - 540 L
Display tank water vol. - 423 L
In-cabinet sump water vol. - 116 L
Ultra-clear front glass - 15 mm
Ultra-clear side glass - 15mm
Bottom glass - 15mm
ReefLED Lighting
Years of research and testing are behind Red Sea’s ReefLED™ smart reef lighting system. These lights have been designed to ensure optimal coral growth and dramatic coloration, while creating a gentle shimmer throughout the aquarium.
The ReefLED lights are guaranteed to be reef-safe and REEF-SPEC® and are very easy to set up.
The built-in wi-fi connects them directly to the internet, enabling you to control them from your smartphone using Red Sea’s ReefBeat® smart aquarium app.
At the heart of the unit is a single, compact LED array that includes a multi-wavelength, 23,000 Kelvin “REEF-SPEC Blue” channel (a proprietary blend of blue, violet and ultraviolet LEDs) which, together with an 8,000K White channel, provides a reef-safe range of color temperatures that enable all corals to flourish.
In addition, a separate dedicated 3W moonlight channel provides low levels of light for reef-safe night-time viewing.
ReefLED also includes an optical-glass, hollow lens that ensures a homogenous light spectrum with ideal PAR values throughout the aquarium, without hotspots or areas with insufficient light for coral growth.
ReefLED is controlled by Red Sea’s ReefBeat app which provides a number of preset lighting programs you can choose from as well as additional features including sunrise/sunset effects, lunar cycle moon light, random clouds and even an acclimation program for new installations. ReefBeat also provides best-practice guidelines during setup as well as useful notifications to your smartphone, for example, in the event of a power outage.
Features
- REEF-SPEC® light output for optimal coral growth and coloration
- Homogenous light with a gentle shimmer
- Reef-safe dual-channel color setting plus dedicated moonlights
- ReefBeat® app for easy set-up, operation, monitoring and notifications
- Anti-glare recessed lens
Specifications
90w Compact LED Array
500 PAR at the surface, 150 PAR at 50cm Depth
80w REEF-SPEC Blue, 10w 8,000K White and 3w Moonlight
Dimensions, 15.5cm x 15.5cm x 5.7cm
Ideal PAR and Spread up to 60cm x 60cm x 60cm
ReefBeat app
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
Quiet. Powerful. Smart.
The smart ReefRun DC Pumps can be set to a customized daily schedule, and come with 360-degree rotating outlets, inlet flow guides, extra-long power cables with convenient connectors next to the pump, and a 5-year warranty.The ReefRun DC return pump is run via the ReefRun Dual Controller as it can also operate the Reefer DC Skimmer at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Be notified if your pump is running dry, disconnected or malfunctioning.
Set a customized daily schedule with varying intensities.
Run two ReefRun DC pumps with your Dual controller, and operate them as a single unit.
Connect both a ReefRun DC Pump and a REEFER DC Skimmer to your ReefRun Dual Controller.
Set your pump to operate as a wave pump for use in closed loop wave installations.Dimensions - 150mm (H) x 96mm (W) x 200mm (L)
Outlet 1"
Specification
3000 – 7000 l/h
800 – 1900 US gph
Flow MIN – MAX
5.0 m / 16.5’
Max Height
20 – 65 W
WATT800 – 1900 US gph
Flow MIN – MAX
5.0 m / 16.5’
Max Height
20 – 65 W
The ReefRun Pump comes with a 5-year manufacturer warranty.
Reefer DC Skimmer
Efficient. Quiet. Smart.
The REEFER DC Skimmers include self-leveling technology that prevents over-skimming and full cups from spilling while continuing to aerate the water.Self-Leveling.
The Self-leveling feature is activated whenever the wetness of the foam in the neck exceeds the user-adjusted “over-skim” threshold. The intensity of the pump is immediately reduced to prevent the over-skim and then gradually increased or decreased, a bit at a time, according to the foam wetness, until the preset pump intensity is reached and stable skimming is restored.Optimal Waste Removal
The Reefer DC Skimmer features a combination of self-leveling tech, a PSK DC pump, proportionally sized venturi, a bubble diffusor and reaction body that optimizes air-water contact time.
Sensor to pump
Quiet
The REEFER DC Skimmers are exceptionally quiet due to the PSK DC Pump, rubber connectors and an air intake silencer.The Reefer DC Skimmer is run via the ReefRun Dual Controller which is sold separately as it can also operate the ReefRun DC return pump at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
And use the ReefBeat
Quick-actions
Create your unique Feed scenario by switching selected pumps off or run at different intensities at different times for different durations.Quick-actions
Select the order and timing between switching devices back on after a maintenance shutdown, such as allowing a few minutes for your return pump to restore water levels in sump and aquarium before switching on the skimmer, wave pumps and dosers.
User friendly features
Precision geared valve for positive flow regulation.
Quick release pump holder for ease of maintenance
1-meter valved waste drainage hose.
3 set-up options with skim regulator facing either the left side, right side or back.
Built-in manual neck cleaner.
Specification
56 cm / 22”
HeightPSK DC-1200
Sicce pump
750/195
Air flow (Lph/Gph)
1500/265
Water flow (Lph/Gph)
18-20 cm / 7-8”
Recommended water height25 W
Power consumption
Ratings
SPS (L / Gal)
600 / 160
Mixed Reef (L / Gal)
1200 / 320
Fish Only (L / Gal)
1800 / 500
ReefWave Pump
ReefWave®
Silent - Smart - Powerful
Based on Gyre patented, cross-flow technology, ReefWave® smart pumps are nearly silent, smart, powerful and easy to maintain. They provide an optimal REEF-SPEC® water flow for corals in a wide range of reefscapes, regardless of their position in your aquarium.The combination of an advanced, smooth running and energy efficient sine-wave motor drive, with superior vibration damping mounts and dual bearings on all models, make ReefWave a nearly silent pulsing wave pump. You can control each ReefWave pump locally through its own dedicated controller or remotely via the built-in Wi-Fi that connects easily to Red Sea’s ReefBeat app.
Features
- Cross-flow technology wave pump for a gentle, evenly distributed flow
- Silent and energy efficient Sine-Wave DC control motor
- 5 programmable wave patterns with unique Forward/Reverse/Alternating flow modes
- Easy assembly/disassembly for maintenance
- Dedicated Wi-Fi controller for each pump
- Synchronize multiple pumps of different sizes
- ReefBeat App for easy set-up, operation, monitoring and notifications
ReefBeat app
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
ReefWave 45 specifications
Actual maximum flow rate - 15000 LPH
Power consumption - 8-45 WATT
Recommended aquarium size - 60-200 CM
Cable length - 3m
Max glass thickness - 20mm
Actual maximum flow rate - 15000 LPH
Power consumption - 8-45 WATT
Recommended aquarium size - 60-200 CM
Cable length - 3m
Max glass thickness - 20mm
ReefMat Filter Roller
ReefMat
Smart - Plug&Play - Efficient
The ReefMat is a plug & play, fully automated, smart fleece roller filter that keeps your aquarium water crystal clear for weeks at a time. Designed with the hobbyist in mind, the ReefMat features an easy fleece-mat replacement system that allows you to switch rolls without having to remove the filter from the sump or turn off the pumps.ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, gives you a head’s up before it needs replacing, and even provide you with a daily usage log.
Features
- Plug & Play installation with multiple sump setup options.
- Easy fleece-mat replacement system.
- Efficient, high-flow, skimmer friendly, 50 g/m2, non-woven polyester fleece-mat rolls.
- Smart drive unit – connected to the ReefBeat ecosystem.
- Solid-State internal and external water level sensors (no moving parts).
- Integrated media basket for additional chemical filtration.
- Kink-resistant, corrugated inlet hose with a USA/Metric PVC connector.
Specifications:
- Max. flow capacity: 12,000 litres per hour
- Fleece-roll width: 17cm
- Fleece-roll length: 35m
- Unit dimensions: 27 x 30 x 48 cm
- Media basket: 700ml
ReefBeat App
One interface for all of Red Seas smart devices
Easy set-up and operation
On-line monitoring and notifications
Additional app features
Peace of Mind
Timely notifications should the fleece-mat get torn, stuck or run out. In addition to the notifications the ReefMat smart-drive will automatically shut off the motor until the roll is unblocked or replaced.
End of Roll Monitor
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Performance Log
Continuously monitor performance with a detailed hourly and daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.
Customized Dispensing
The length of fleece mat dispensed can be customised allowing for optimal system performance
Mounting and Installation
The ReefMat comes fully assembled, straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump however it also has optional legs for a free-standing installation.
Both the Drive-unit and inlet hose can be positioned either side of the ReefMat, as best suits each installation.
Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) are provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
ReefATO
Exceptionally reliable and smart ATO, temperature monitor and leak detector
Smart, Safe & Quiet. The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation.
This is not just a top-up! Fully control via the ReefBeat App provides complete peace of mind with alerts via your mobile device when you are around your aquarium. Complete with an installation kit that includes tube holders, clips and non-return valves you could ever need, the ATO+ proves every last detail has been thought about, something we have come to expect from Red Sea in recent times!
In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured online digital temperature monitor and a leak detector.
ATO+ Sensor
Slim-line, multi-input, titanium probe, solid state (EC technology) water level sensor, with a built-in digital thermometer accurate to 0.1 degrees.
ATO Pump
Quiet, variable flow, serviceable ATO pump (6-10w). Diameter 4.5cm, max flow 300lph/75 gph with a max head height of 2.5 meters.
Leak Detector
Highly Sensitive, REEF-SPEC, titanium probe leak detector for RO & saltwater. Triggers notifications via the ReefBeat App and features an audible alarm.
Smart Controller
The microprocessor monitors and reliably controls all of the components and connects them to the Reef Beat eco-system.
Slide Out Control Panel
Designed with hobbyist needs in mind, Red Sea’s new slide-out Control Panel helps you to get the most out of your cabinet space by placing your dosers, controllers and other devices in one easily accessible place.
The Control Panel is designed to fit either side of your cabinet, and is made of marine-spec laminated plywood with quick-release stainless steel soft-close sliders, allowing for easy mounting and access to all your equipment.
Features & specs
- Marine-spec, 2 cm (0.8”) thick, black laminated plywood panel.
- Mounts on both left or right sides.
- Quick-release stainless steel soft-close sliders.
- Mounting brackets provide 3 cm (1.2?) clearance for hinges.
