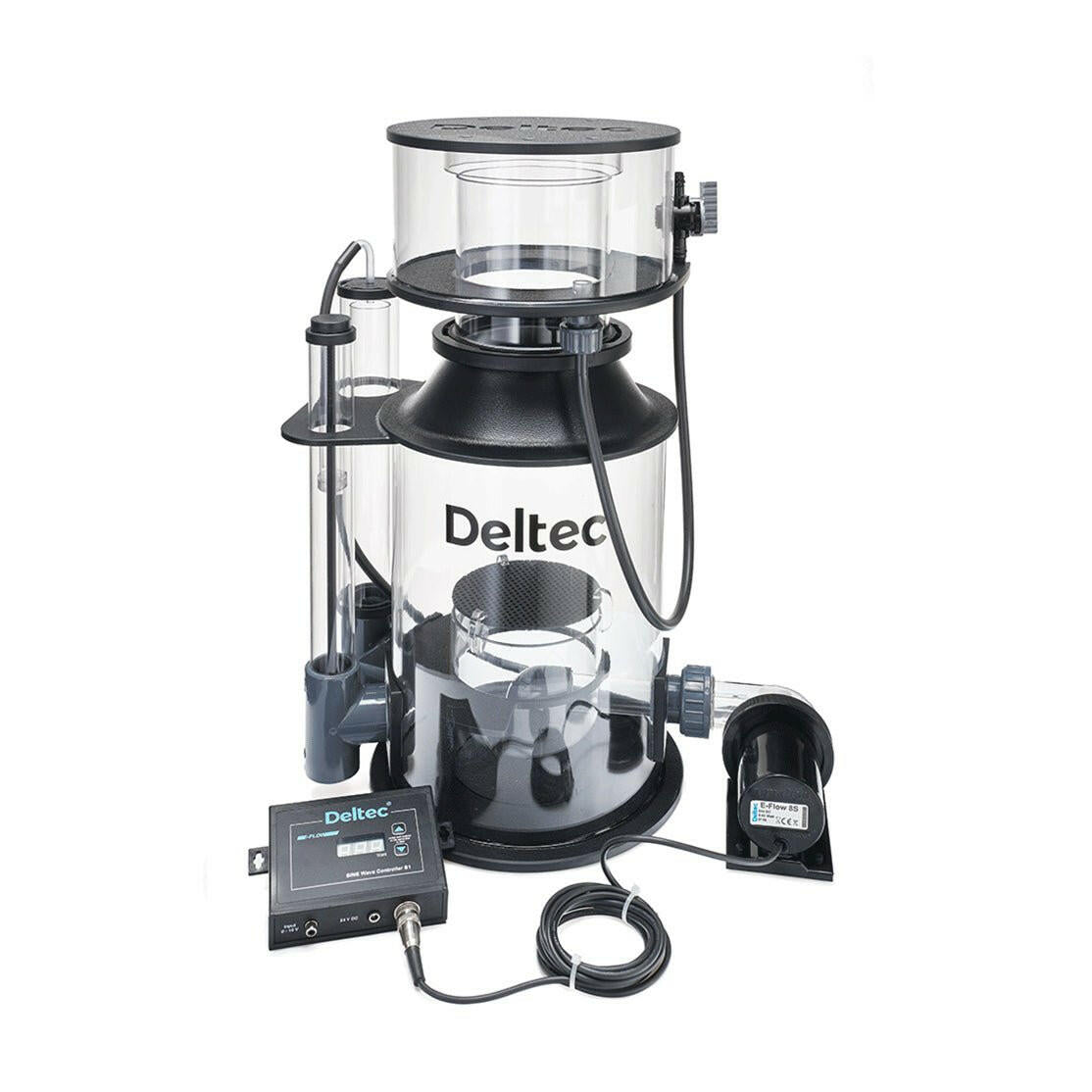

The air water mix from the pump is delivered into an inner chamber inside the body of the skimmer, this serves several functions including reducing turbulence in the main body, increasing dwell time, and helping prevent bubbles escaping the body without the need for mechanical degassing. The shape of the main skimmer body does not taper or narrow towards the top. This results in the small air bubbles being able to rise unhindered, allowing them to become fully saturated with organics, only bursting in the riser tube inside the collection cup and creating a stable foam.
Features
- Deltec E-Flow S Professional DC pump
- Externally mounted pump
- 2 times the contact time due to optimised water flow
- Variable control in 2 Watt steps
- High volume air inlet
- Micro aduster to set the internal water level
- New uprated diffusor
- Air silencer
- Feed timer
- Whisper quite operation with hollow chamber
- Emergency overflow system
- Large skimmer cup
- Skimmer cup drain
- Stronger Material for the cup / lid
- Optional cup self cleaning system
- No addional feed pump required
- High turnover rate through the skimmer
- Hand built in Germany
Deltec protein skimmers have a specially developed emergency overflow system.
This prevents the collection cup overflowing if the water level in the protein skimmer rises due to the sump water level suddenly increasing, or the air intake becoming blocked. If the water level within the body of the protein skimmer becomes too high the air feed will be automatically shut off via the emergency overflow and excess water can escape, preventing the cup from flooding.
The water level within the protein skimmer can easily be seen in the emergency overflow pipe to help optimize the water level inside the unit.
Footprint: 480mm x 290mm
Height: 605mm
Aquarium Size: 1500L - 3000L
Water Level: 170mm - 250mm
Power Consumption:50W
AC/DC: 24V DC
Air Max.: 1600L
Body diameter: 250mm
Cup diamater inner tube: 140mm
Pump: E-Flow 8S
Controller: SWC E1
