The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.
These beautiful aquariums provide a lasting frame, so you can create a stunning picture.
Features
Eurobraced ultra-clear glass - REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.

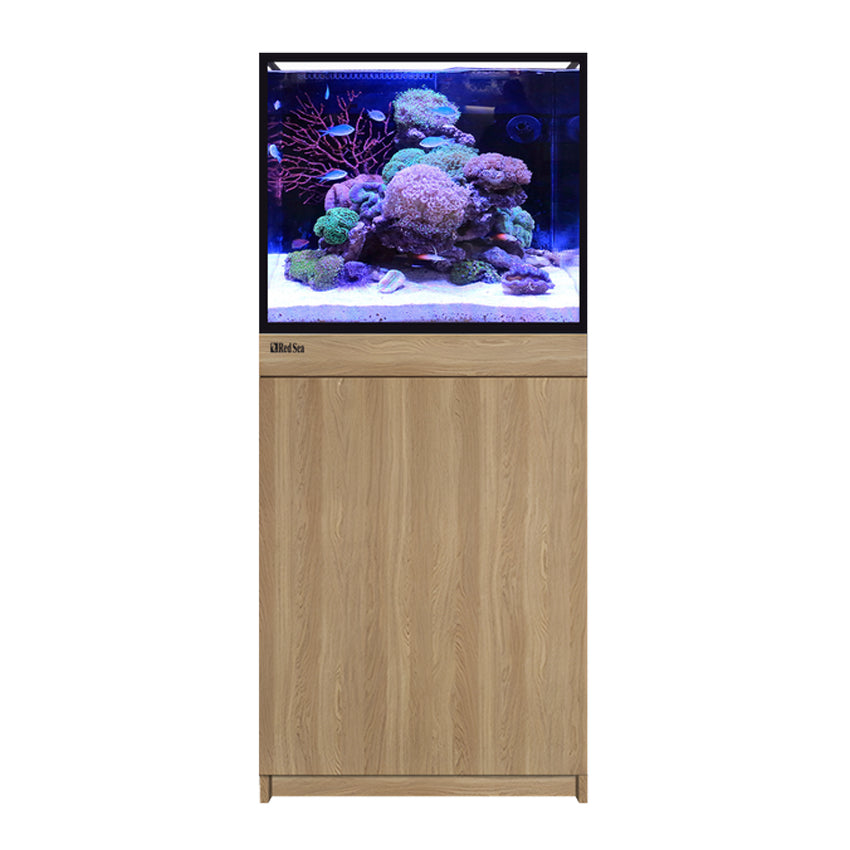

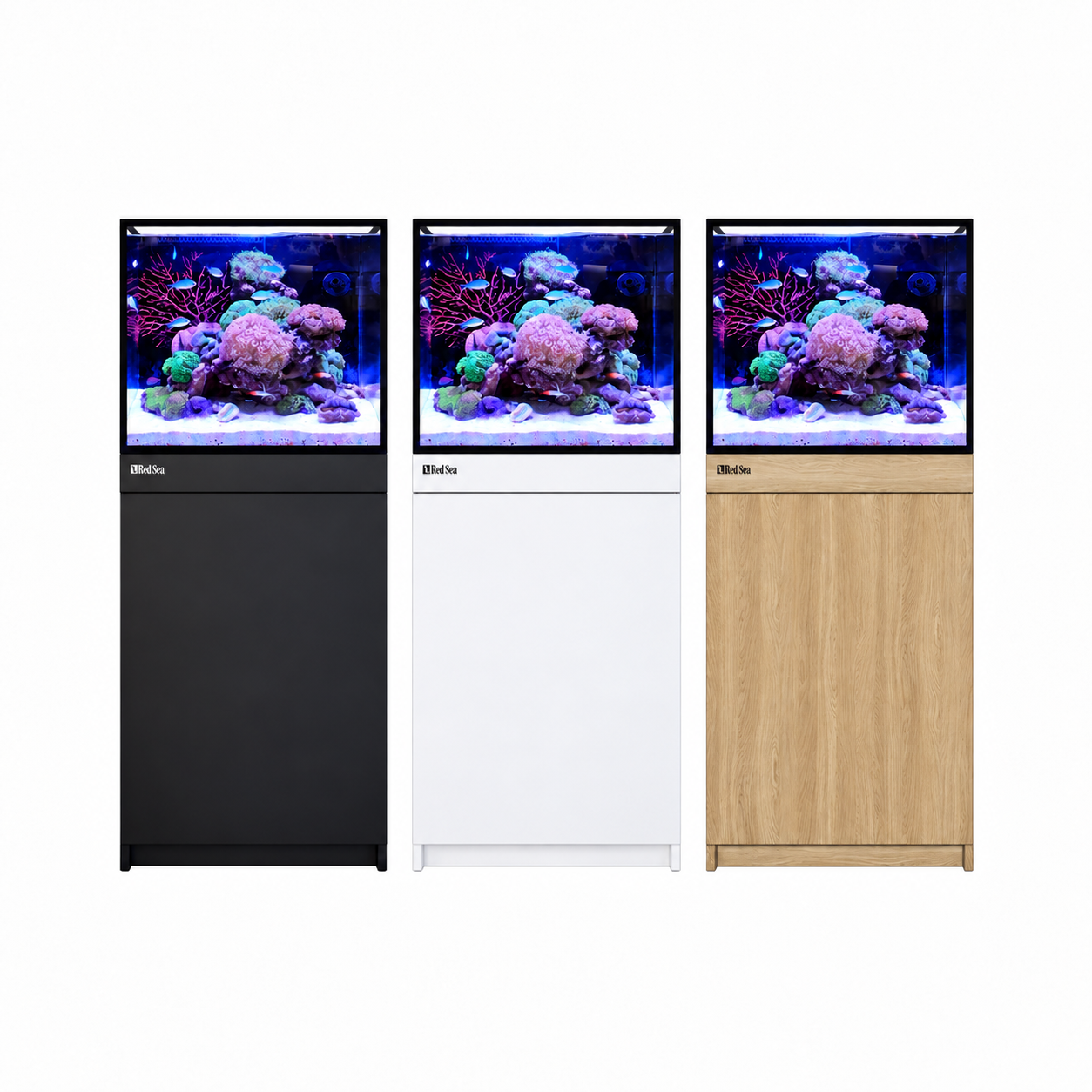

Extra fortified cabinets - REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.
Pump return outlets - REEF-FRAME systems benefit from 25mm diameter curved return outlets that provide optimal flow. The REEF-FRAME 350 and 500 models feature dual return outlets that can be connected to either a single or dual return pump system.
Surface skimmer - The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.
Silent downflow system - The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.
ReefGate high-precision flow valve - REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
Hydrodynamically superior piping - REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.
Reef Spec Sump - The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.
ReefMat-ready - The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.
Specification
Total system water volume 174 L
Display tank water vol. 136 L
In-Cabinet sump water vol. 39 L
Display tank Length 60 cm
Display tank width 53 cm
Display tank height (excluding light unit) 50 cm
Total system height (excluding light unit) 137 cm
Ultra-clear front glass 10 mm
Ultra-clear side glass 12 mm
Bottom glass 10 mm
Back glass thickness 8 mm
Bracing Euro brace
Return outlet nozzles 1x 25mm (Single pump)
Hydrodynamic piping with Gate valve
