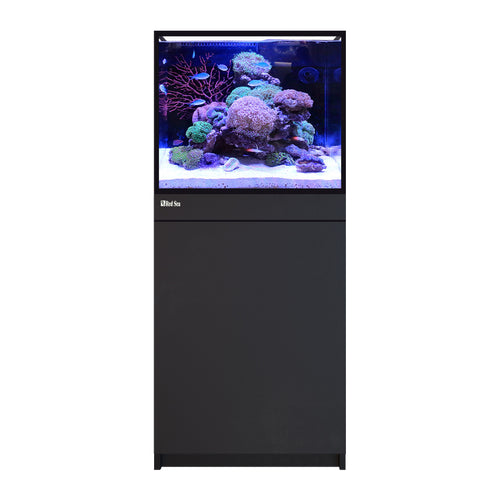

The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.
These beautiful aquariums provide a lasting frame, so you can create a stunning picture.
Features
Eurobraced ultra-clear glass - REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.
Extra fortified cabinets - REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.
Pump return outlets - REEF-FRAME systems benefit from 25mm diameter curved return outlets that provide optimal flow. The REEF-FRAME 350 and 500 models feature dual return outlets that can be connected to either a single or dual return pump system.
Surface skimmer - The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.
Silent downflow system - The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.
ReefGate high-precision flow valve - REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
Hydrodynamically superior piping - REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.
Reef Spec Sump - The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.
ReefMat-ready - The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.
Specification
Total system water volume 174 L
Display tank water vol. 136 L
In-Cabinet sump water vol. 39 L
Display tank Length 60 cm
Display tank width 53 cm
Display tank height (excluding light unit) 50 cm
Total system height (excluding light unit) 137 cm
Ultra-clear front glass 10 mm
Ultra-clear side glass 12 mm
Bottom glass 10 mm
Back glass thickness 8 mm
Bracing Euro brace
Return outlet nozzles 1x 25mm (Single pump)
Hydrodynamic piping with Gate valve
REEF-FRAME MAX 170
| Equipment |
Included quantity and specifications |
| Aquarium system |
Aquarium, cabinet, sump and plumbing with ReefGate flow-control valve |
| Return outlet |
1 × 25 mm outlet |
| Lighting |
1 × ReefLED G2 115, with mounting arm; 115 W LED array; dimensions 15.5 × 13.5 × 5.7 cm
|
| Lighting performance |
Published PAR: 500 at surface, 150 at 50 cm depth; adjustable 10,000–23,000 K spectrum; separate 3 W moonlight channel |
| Lighting control |
ReefBeat control with acclimation programmes, lunar cycles and customised schedules |
| Circulation pump |
1 × ReefWave 25; maximum flow 7,500 L/hour; power consumption 4–25 W
|
| Circulation pump compatibility |
Recommended aquarium length 45–120 cm; maximum glass thickness 15 mm; cable length 3 m |
| Return pump |
1 × ReefRun G2 4000; adjustable flow 2,000–4,000 L/hour; maximum head 3.4 m; power consumption 16–38 W
|
| Return pump control |
Local flow controller; ReefBeat integration through ReefRun Dual Controller |
| Protein skimmer |
1 × REEFER DC 300; water flow 1,000 L/hour; air flow 500 L/hour; power consumption 20 W; height 53 cm; Sicce PSK DC-1200 pump
|
| Skimmer functions |
Automatic self-levelling; foam-wetness and collection-cup waste-level monitoring |
| Roller filter |
1 × ReefMat 250; recommended for systems up to 250 L; maximum flow capacity 3,500 L/hour
|
| Filter dimensions and fleece |
Unit: 16 × 20 × 49 cm; fleece width 8 cm; roll length 32 m |
| Filter control |
Automatic fleece advancement; ReefBeat usage monitoring and replacement notifications |
| Monitoring controller |
ReefControl Pro; supports up to seven digital ReefSense probes/sensors; live readings, logs and notifications
|
| Included pH/temperature probe |
Temperature-compensated pH measurement; pH accuracy 0.05, precision 0.01; temperature accuracy 0.05°C |
| Automatic top-up sensor |
ReefControl ATO module; solid-state water-level detection; integrated temperature sensor accurate to 0.1°C
|
| Automatic top-up pump |
Maximum flow 300 L/hour; maximum head 2.5 m; power consumption 6–10 W; diameter 4.5 cm |
| Automatic top-up installation kit |
Sensor bracket, pump, siphon breaker, tube holder and 3 m silicone tubing |
| Equipment mounting |
Slide-out control panel 25 |
