REEFER G3+ systems come with elegant jet-black eurobracing, ultra-clear glass bonded with high-quality euro-silicone, a high-precision gate valve, hydrodynamically superior piping, and are fully supported by reinforced marine-spec cabinets. They also include the advanced ReefControl ATO module, the base for all your aquarium monitoring needs. REEFER G3+ systems come with an extended warranty of up to 5 years.

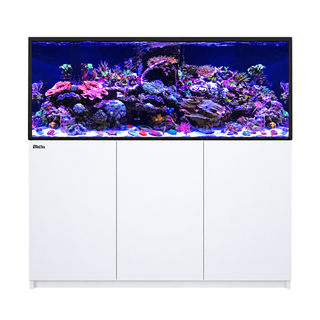

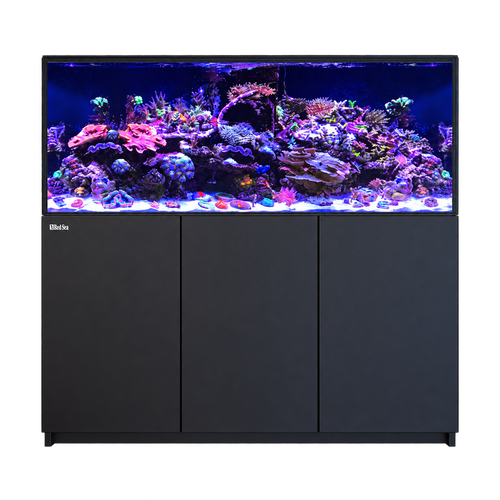

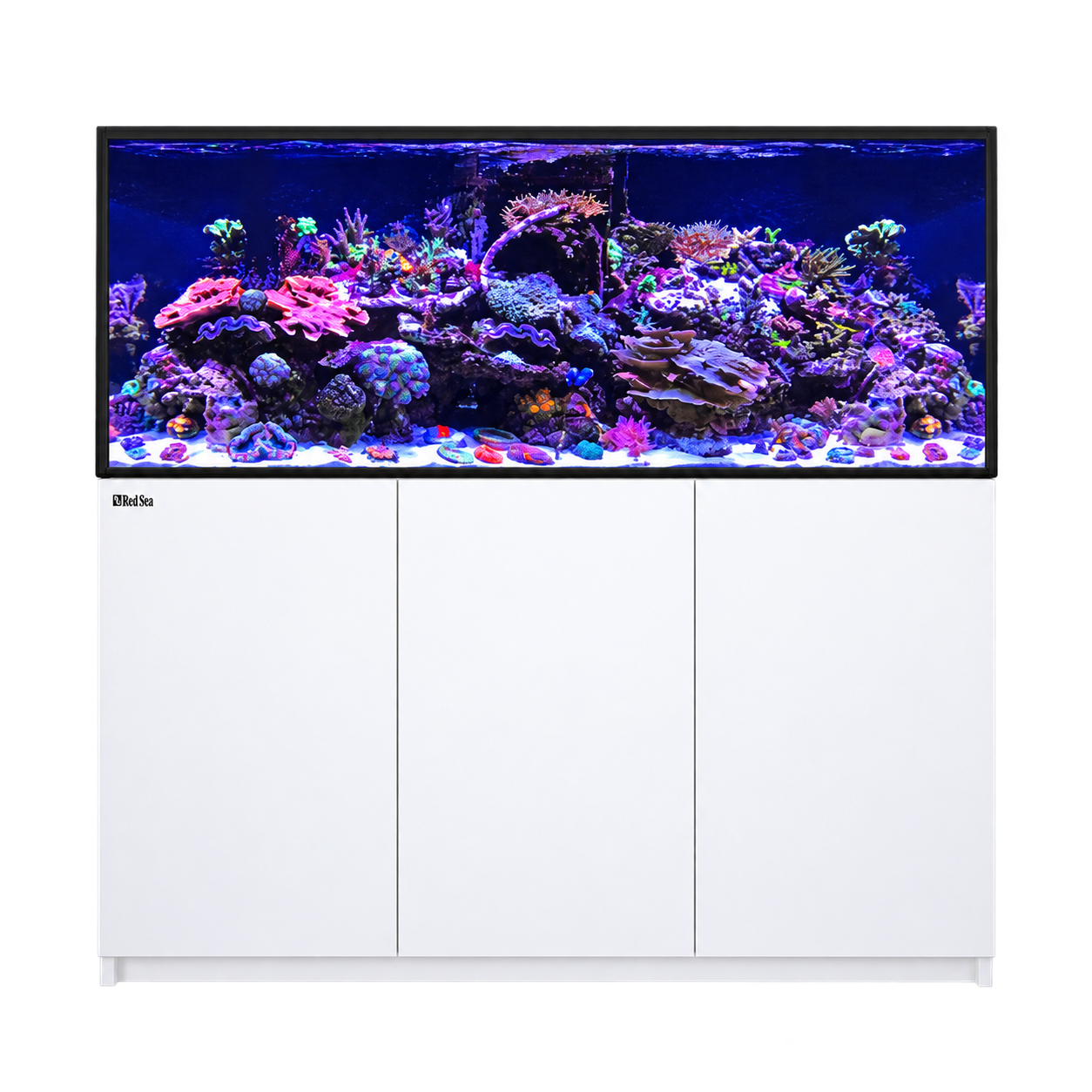

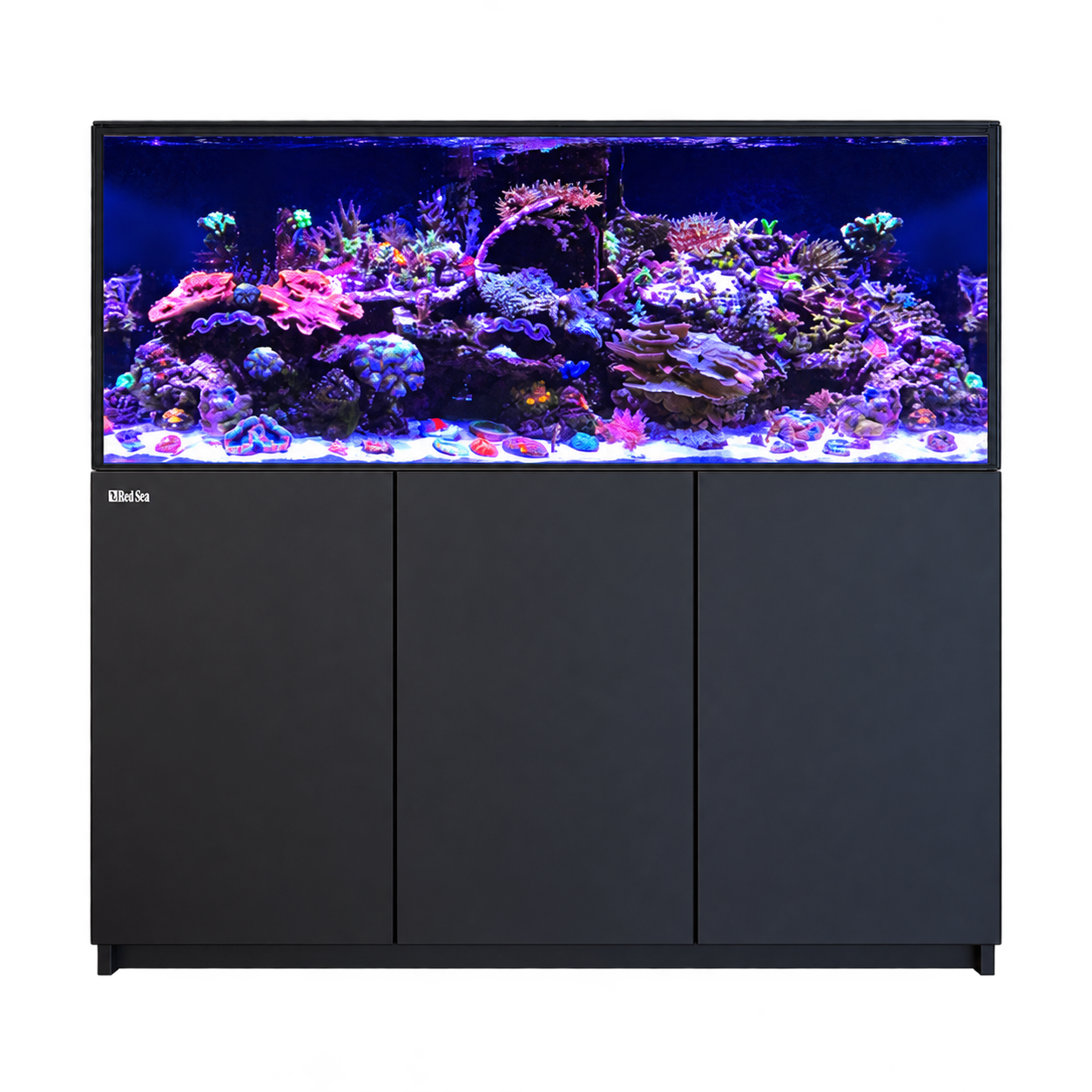

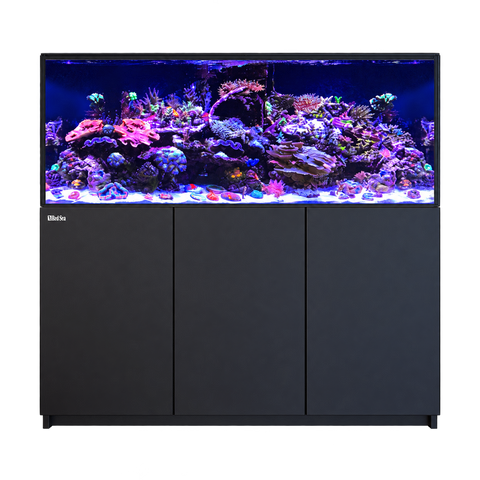

Give your reefscape a 150 cm canvas, with a 65 cm front-to-back dimension for more layered rockwork and open swimming space. The Red Sea REEFER MAX 625 G3+ combines a 497 litre display with an in-cabinet sump, providing a manufacturer-rated total system water volume of 620 litres. Its 150 x 65 x 60 cm display gives you a defined space to plan rockwork, coral placement and swimming areas. As part of the G3+ range, it brings together the aquarium, cabinet, sump, plumbing and automatic top-up controls with a matched package of lighting, filtration and circulation equipment.
Ultra-clear glass provides a clear view of your aquascape, with 19 mm front glass and 19 mm side glass. Jet-black glass eurobracing reinforces the upper perimeter of the aquarium for extra structural strength. High-quality euro-silicone bonds the glass for long-lasting structural integrity. Additional bottom bracing further reinforces the tank base. The marine-spec plywood cabinet has laminated panels, epoxy-painted doors, stainless-steel hinges and adjustable levelling feet. These features combine a finished furniture appearance with access to the sump below. Front aluminium supports further reinforce the cabinet. An included slide-out control panel provides access to the supplied controllers.
The G3+ water-management design uses hydrodynamic piping and the ReefGate precision gate valve. Adjusting the downflow through the valve helps you balance the drain against your chosen return pump and reduce operating noise. The enlarged downflow inlet is designed to reduce turbulence, while the removable surface-skimming combs make the overflow easier to clean. This model has two 25 mm return outlets and supports single- or dual-pump plumbing configurations.
The in-cabinet sump places filtration equipment below the display. Its adjustable-height skimmer chamber lets you set the operating water depth to suit the requirements of your chosen protein skimmer. The mechanical filtration section includes two filter socks and two media cups. The removable mechanical filtration compartment makes the sump ReefMat-ready, and the MAX package includes a ReefMat 1200 automatic roller filter. A refugium-ready layout also gives you the option to incorporate a refugium into your filtration plan.
ReefControl Pro, the ATO Module and a ReefSense pH/temperature probe are included. Automatic freshwater top-up replaces evaporation losses, helping maintain water level and salinity. The probe monitors pH and temperature, while the Pro controller supports up to seven ReefSense probes or sensors and two 12 V DC devices. Optional compatible sensors and ReefControl Power can expand the system.
he MAX version combines the aquarium, cabinet, sump and plumbing with ReefLED G2 lighting and mounts, a ReefRun G2 return pump, ReefWave circulation, a REEFER DC skimmer, a ReefMat roller filter and ReefControl Pro monitoring with automatic top-up. The equipment specifications below identify the models and quantities supplied with this aquarium.
Technical specifications
|
Specification
|
Details
|
|
Total system water volume
|
620 litres
|
|
Display tank water volume
|
497 litres
|
|
In-cabinet sump water volume
|
123 litres
|
|
Display dimensions L x W x H
|
150 x 65 x 60 cm
|
|
Total system height
|
148 cm
|
|
Front glass thickness
|
19 mm
|
|
Side glass thickness
|
19 mm
|
|
Bottom glass thickness
|
15 mm
|
|
Glass bracing
|
Jet-black eurobracing with additional bottom bracing
|
|
Return outlets
|
2 x 25 mm (Single or dual pump)
|
|
Skimmer chamber footprint
|
51 x 51 cm
|
|
Pump chamber footprint
|
36 x 27 cm
|
|
Sump operating water height
|
21-27 cm
|
|
ReefControl controller
|
Pro with ATO Module and ReefSense pH/temperature probe
|
|
Refugium-ready sump
|
Yes
|
|
Split sump
|
No
|
|
Mechanical filter socks
|
2
|
|
Media cups
|
2
|
|
Cabinet frame
|
Marine-spec plywood
|
|
Slide-out control panel
|
Slide-out control panel 60 included
|
|
Manufacturer warranty
|
3 years; extended to 5 years with registration within 90 days, subject to terms
|
Equipment
REEFER MAX 625 G3+
| Equipment |
Supplied |
Specifications |
| Lighting |
2 × ReefLED G2 170, with mounting arms |
170 W LED array |
| Circulation |
2 × ReefWave 45 |
Maximum 15,000 L/hour; 8–45 W |
| Return pump |
1 × ReefRun G2 8000 |
4,100–8,300 L/hour; 5.3 m maximum head; 24–73 W |
| Protein skimmer |
1 × REEFER DC 900 |
Water: 2,000 L/hour; air: 900 L/hour; 30 W; height 59 cm |
| Roller filter |
1 × ReefMat 1200 |
Maximum throughput 9,000 L/hour; rated for systems up to 1,200 L |
| Monitoring and top-up |
ReefControl Pro, pH/temperature probe and ATO module |
Included |
| Equipment mounting |
Slide-out control panel 60 |
Included |
