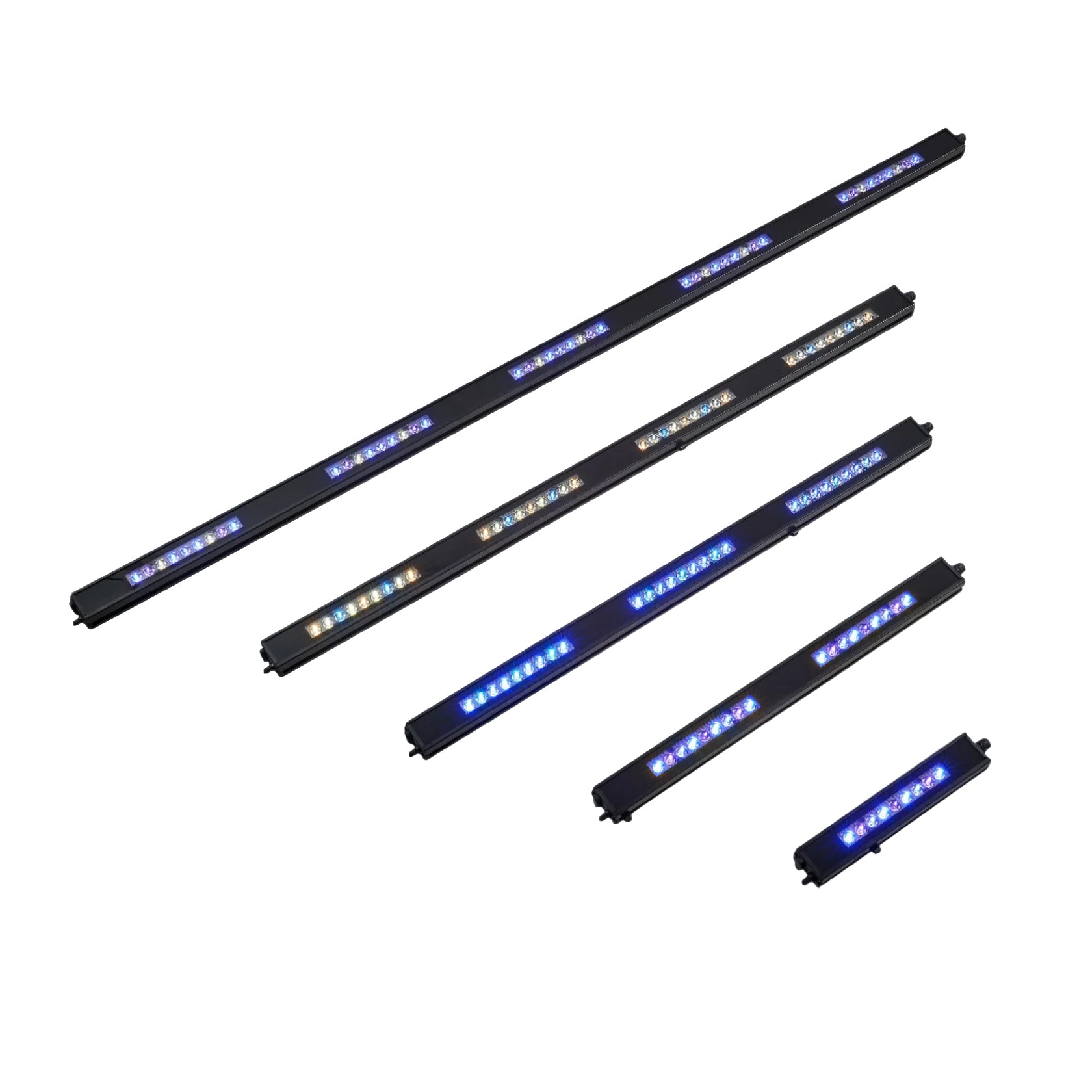

Reefbreeders Edge Marine Strip Light - UV/Blue Hybrid

HANGING WIRES NOT INCLUDED

Introducing the Meridian Edge Bars, the latest in lighting technology created specifically to grow vibrant, thriving coral. Engineered for serious coral enthusiasts, the Edge Bars deliver peak performance, exceptional flexibility, and precise control, enhancing coral health and growth like never before.

On their own each Edge Bar provides 6 to 8 inches of powerful, targeted coverage at a 10-14inch mounting height. When combined with a Meridian, they extend total front-to-back coverage from 24 inches to 30 inches, ensuring even the largest coral colonies receive optimal light from all angles.

UV/Blue Hybrid: A mix of royal blue, near-UV, Violet, and Indigo to enhance coral coloration and stimulate growth.

    •    Manual Control: Simple one-channel control with 75% max output and built-in 8, 10, or 12-hour timers.

    •    App & Manual Control: Unlocks full 100% power with dual-channel control through the Reef Breeders app. Bluetooth support is coming soon via a software update.

Every manual Edge Bar can be upgraded to full app control with a quick and easy hardware swap, so you’re never locked into one option.

The game-changing Ocular Hollow Matrix (OHM) Optics focus light exactly where corals need it, penetrating deeper into the tank than traditional LED bars. With over three times the PAR per square inch compared to LumenBars, the Edge Bars provide the intensity needed for serious coral growth even in tanks 30 inches or deeper.

The optional Edge articulating mounts allow precise angling, letting you direct light exactly where it’s needed. This means corals get light from multiple angles, leading to healthier, more evenly developed growth. No other light on the market offers this level of flexibility and customization.

Designed with a durable aluminum body and sleek black finish, the Edge Bars integrate seamlessly into any reef setup. With the optional Octo Cable, you can connect multiple bars to a single power source for a cleaner, more efficient setup.

The Meridian Edge Bars set a new standard in reef lighting—combining power, precision, and adaptability in a sleek, professional-grade package. Whether you're fine-tuning the spectrum for specific coral species or expanding your setup with app-controlled customization, the Edge Bars grow with your reef.

Built for performance, designed for flexibility, and engineered for results, they're the ultimate upgrade for serious reef-keepers looking to elevate coral health, coloration, and growth.

More Wattage

On average, the Meridian Edge delivers 2.5x higher wattage than a similarly sized Lumenbar model.

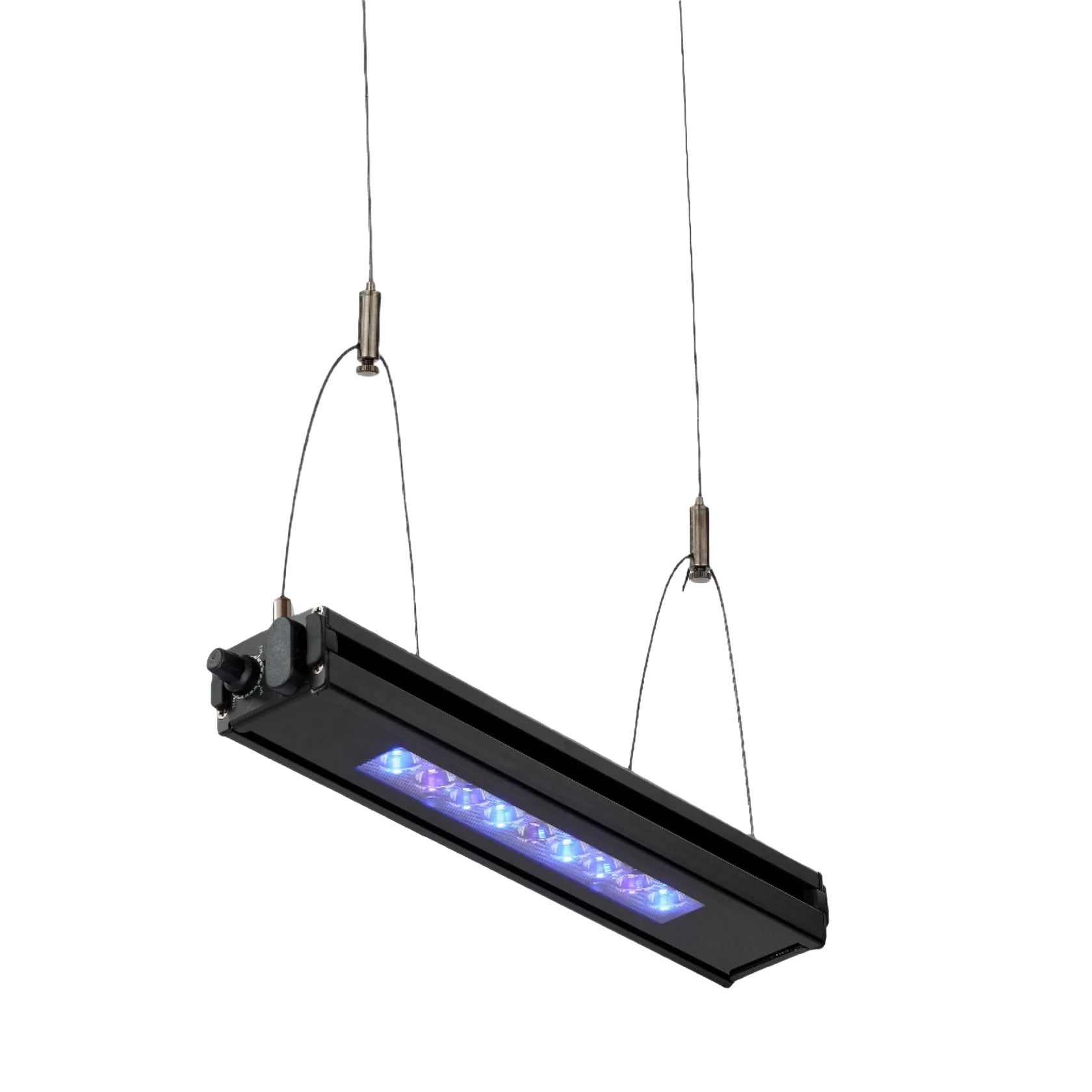

12 Specifications:

• Coverage Area at: 24"x6-8" (60cmx15-20cm)
• Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
• 30watts max power draw (App)
• 22.5watts max power draw (Manual)
• Case dimensions LxWxH: 11.32" (28.75cm) x 2" (5cm) x 1.35" (3.43cm)

• Weight: 1.15lbs (0.523kg)

• 13.57" (34.5cm) long including plug and manual controller
• 1.53" (3.88cm) case height including bolts.

• 2 year warranty on light, 1 year on power supply

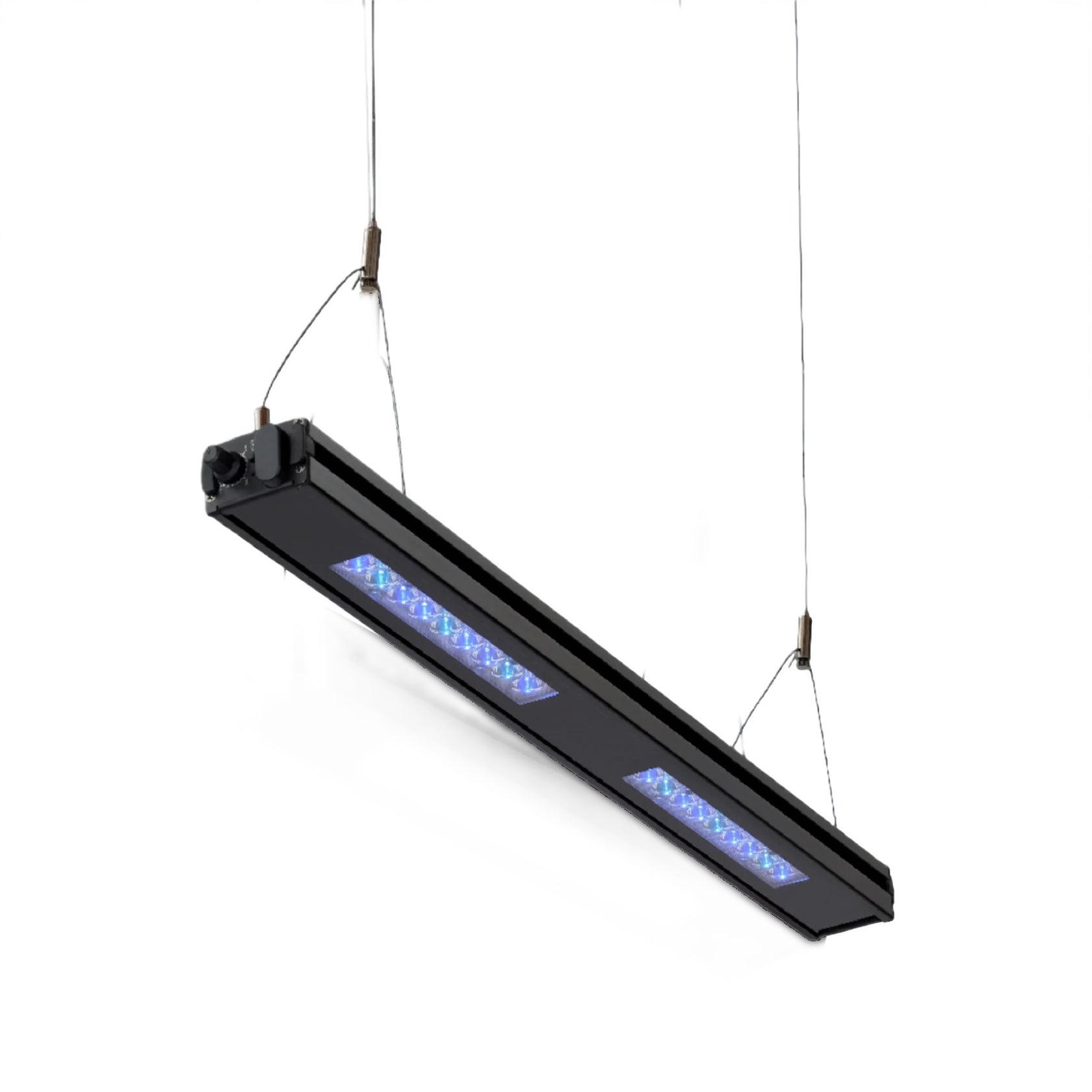

24 Specifications:

• Coverage Area at: 36"x6-8" (90cmx15-20cm)
• Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
• 60watts max power draw (App)
• 45watts max power draw (Manual)
• Case dimensions LxWxH: 23.75" (60.325cm) x 2" (5cm) x 1.35" (3.43cm)

• Weight: 2.3lbs (1.05kg)

• 26" (66cm) long including plug and manual controller
• 1.53" (3.88cm) case height including bolts.

• 2 year warranty on light, 1 year on power supply

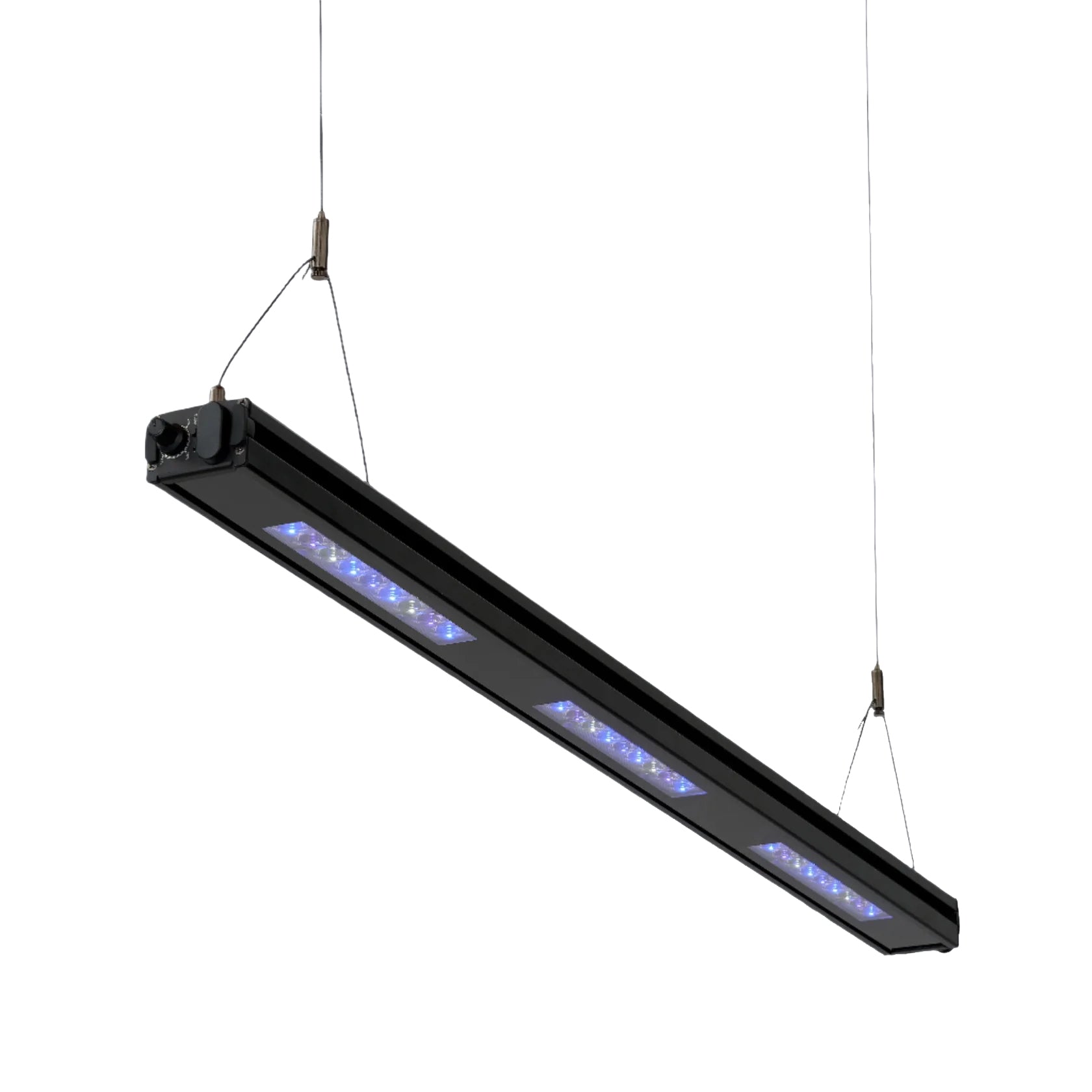

35 Specifications:

• Coverage Area at: 48"x6-8" (120cmx15-20cm)
• Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
• 90watts max power draw (App)
• 67.5watt max power draw (Manual)
• Case dimensions LxWxH: 34.5" (87.65cm) x 2" (5cm) x 1.35" (3.43cm)

• Weight: 3.35lbs (1.52kg)

• 36.75" (93.35cm) long including plug and manual controller
• 1.53" (3.88cm) case height including bolts.

• 2 year warranty on light, 1 year on power supply

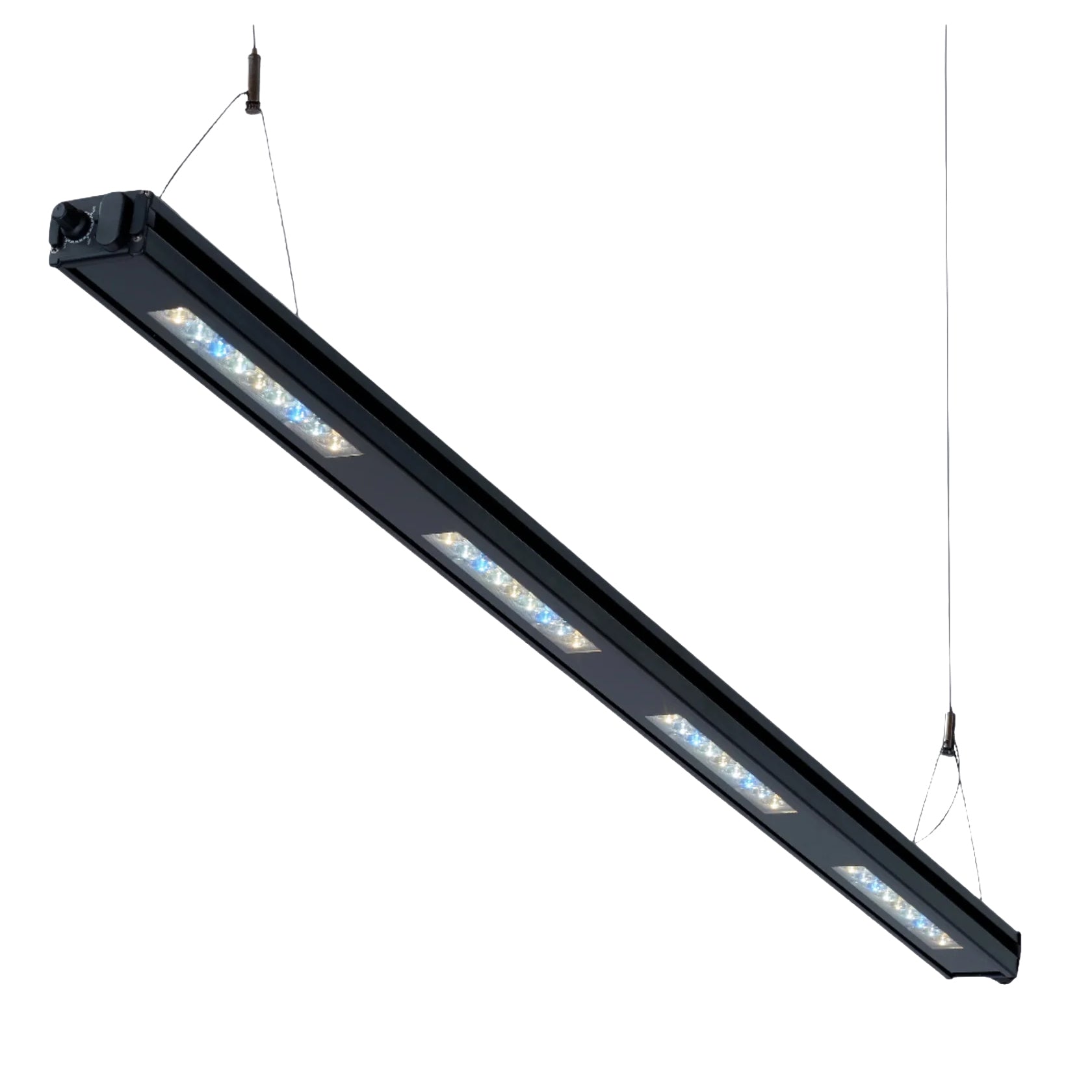

45 Specifications:

• Coverage Area at: 60"x6-8" (150cmx15-20cm)
• Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
• 120watts max power draw (App)
• 90watts max power draw (Manual)
• Case dimensions LxWxH: 44.375" (112cm) x 2" (5cm) x 1.35" (3.43cm)

• Weight: 4.4lbs (2kg)

• 46.625" (118.5cm) long including plug and manual controller
• 1.53" (3.88cm) case height including bolts.

• 2 year warranty on light, 1 year on power supply
