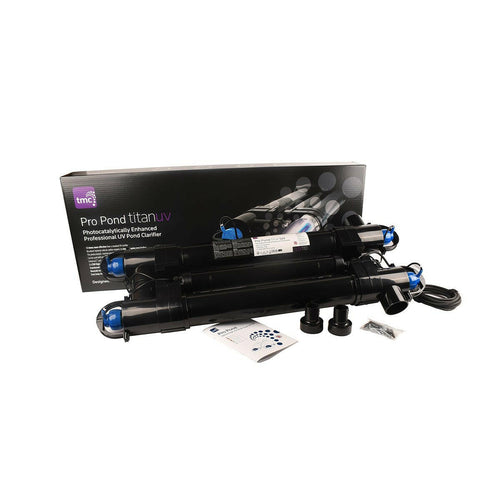

Photocatalytically enhanced UV Pond Clarifier
Using the latest photocatalytically enhanced UV technology the Pro Pond TitanUV is up to 1.5 times more effective than a standard UV clarifier, producing hydroxyl radicals that improve water clarity through a process of oxidation.
MAIN FEATURES:
• Individually chambered lamps guarantee short depth of UV penetration for optimum clarification;
• Fused quartz glass sleeves offering excellent UV transmittance, as well as ensuring that the lamps can reach their optimum ‘burn temperature’ for maximum UVC production;
• Modular design allows for easy maintenance;
• Translucent lamp caps allow for easy visual verification that lamps are operational;
• Utilises high quality 55W UV lamps;
• Can be used with pressure filters or pressure circuits such as sand filters & venturis;
• Universal 2” and 63mm solvent weld inlet and outlet port to take rigid pipe;
• Hosetails included for use with flexible hose.
The Technology Behind It
CONSTRUCTED FROM AN EXCLUSIVELY FORMULATED HIGH UV STABILISED COMPOUND DESIGNED FOR ITS ULTRA-LOW TOXICITY
SPECIALLY DEVELOPED PHOTOCATALYTIC LINING
FUSED QUARTZ GLASS SLEEVE
FUSED QUARTZ GLASS SLEEVE
INDIVIDUALLY CHAMBERED LAMPS FOR OPTIMUM EFFICIENCY AND CONTACT TIME
TRANSLUCENT LAMP CAPS MAKE IT EASY TO SEE IF UV LAMPS ARE WORKING
Suitable for ponds up to 108,000 litres 24,000 UK gallons 29,000 US gallons
Maximum flow rate 36,000 litres 8,000 UK gallons 9,500 US gallons
Inlet/outlet size 2” and 63mm (dual port size)
Maximum pressure rating 3bar / 43.5psi
Dimensions (L x W x H) 964 x 367 x 109mm (unpacked )
