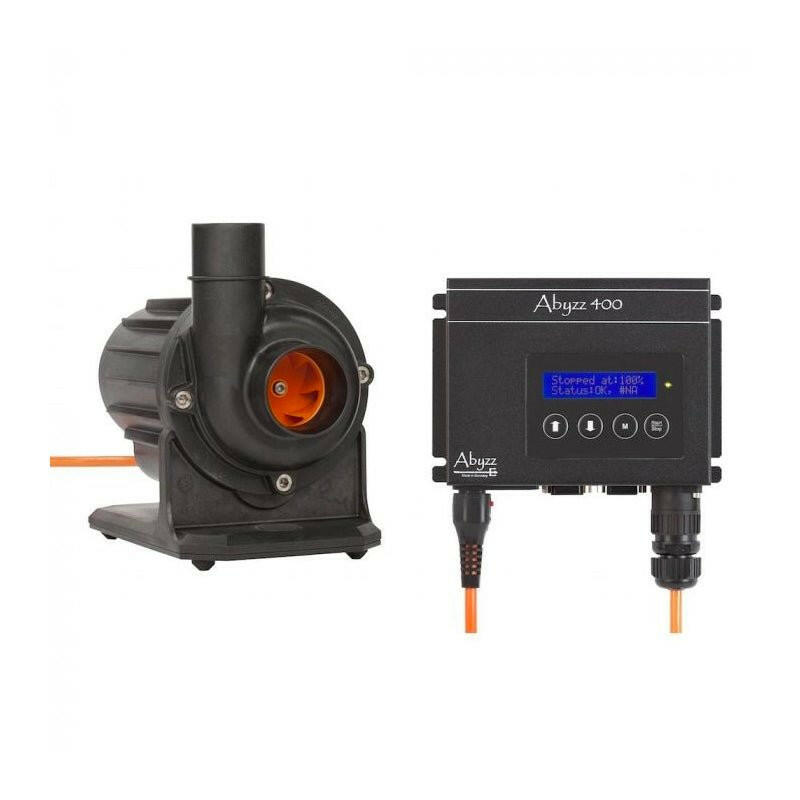

The innovative Abyzz A400 pump with its titanium impeller consists of powerful and programmable menu-controlled electronics (driver) and a sinusoidal, three-phase synchronous motor (pump). The efficiency factor of the motor is more than 90%, which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution. The integrated bearing flushing provides optimum protection against calcination and, in conjunction with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operations. The materials used are designed to have a long lifetime and meet the highest requirements and quality standards. This product was developed and manufactured in Germany by venotec. „Made in Germany“
Special features
- Variable speed range (0 - 100%)
- Programmable control system (e.g. wave and random modes)
- Comprehensive safety functions (e.g. dry run, temperature, and overcurrent protection)
- Soft startup
- Bus-enabled interface for peripheral devices
- Lockable plug contacts
- Low-noise operation
- Choice of 3m or 10m cable length
Technical Data
The pump pipes can be immersed or in a dry position.
Please note that this pump is not selfpriming.
Maximum flow rate : 23.500 l/h Rated flow rate : 18.600 l/h Discharge flow speed : max. 7,5m/s : nom. 6,4m/s Delivery height : max. 9,4m Rated input : 4...400W Operating voltage : 230V~, 50...60Hz
Ambient temperature : +2°C...+40°C
Maximum operating pressure : 1,2 bar Maximum immersion depth : 2 Meter Pump cable length : 3m oder 10m Inlet/outlet connections : 50mm/40mm (suitable for PVC/AVB adhesive fittings)
