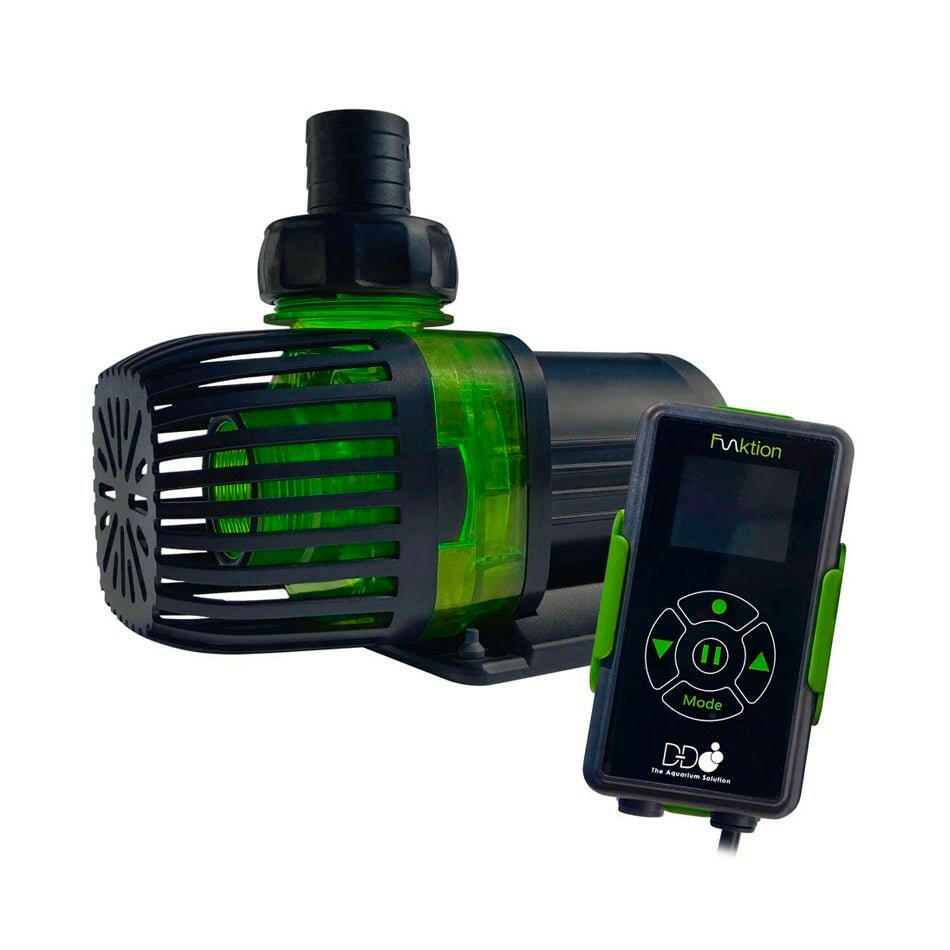

The D-D Funktion pumps are a multi-function DC pump with a unique digital controller, featuring three wave modes and a constant running setting. These pumps are suitable as a return pump, for running media reactors or as a closed loop pump
Suitable for salt or freshwater use, the sine wave technology and low voltage motor offers ultra-low running noise, low heat output and energy efficiency.
Pump - The pump can be set to run continuously for use as a standard return, reactor or equipment supply pump. Flow setting can be adjusted on the controller between the minimum and maximum power settings of 30 and 100.
Wave - A constant wave output Is created as the pump ramps up and down between a minimum and maximum power setting. The frequency and power settings can be changed on the controller.
Pulse - The speed of the pump will alternate between a low and high power setting and can be used to set up a standing wave. The frequency and power settings can be changed on the controller.
Storm - Output of the pump will alternate and ramp between different power settings, at a varying frequency to form a random flow pattern. Ideal for stirring up detritus so it can be removed by filtration.
Suitable for salt or freshwater use, the sine wave technology and low voltage motor offers ultra-low running noise, low heat output and energy efficiency.
Features
- Full range of high flow pumps with a compact footprint
- Unique digital controller with 3 wave functions and a constant flow mode
- Sine wave technology for low running noise
- Low voltage
- Energy efficient motor
- Suitable for saltwater and freshwater
- Wear resistant ceramic shaft and bearings
- Detachable footplate with anti vibration rubber feet
- Splash proof connection between the pump and controller
Flexible Installation Options
- 5000, 6500 and 10000 models can be installed externally
- All models are fully submersible
- Pump outlet can be positioned to face upwards, left or right
- ‘Elephant Nose’ suction attachment included, for anti-vortex operation
- Standard suction cage included for normal submerged use
- Quick couple unions included for simple pump removal
- Multiple pipe connections included
Controller Features
- Unique multi-function digital controller with touch button pad
- Back-lit LCD colour display with adjustable screen brightness
- Multi-language display with screensaver
- 4 different flow modes
- Adjustable minimum and maximum power settings in wave and pulse modes.
- Adjustable maximum power on pump mode
- Feed mode and on/off functions
- Run-dry detection with automatic shutdown function
- Detachable mounting bracket
Pump - The pump can be set to run continuously for use as a standard return, reactor or equipment supply pump. Flow setting can be adjusted on the controller between the minimum and maximum power settings of 30 and 100.
Wave - A constant wave output Is created as the pump ramps up and down between a minimum and maximum power setting. The frequency and power settings can be changed on the controller.
Pulse - The speed of the pump will alternate between a low and high power setting and can be used to set up a standing wave. The frequency and power settings can be changed on the controller.
Storm - Output of the pump will alternate and ramp between different power settings, at a varying frequency to form a random flow pattern. Ideal for stirring up detritus so it can be removed by filtration.

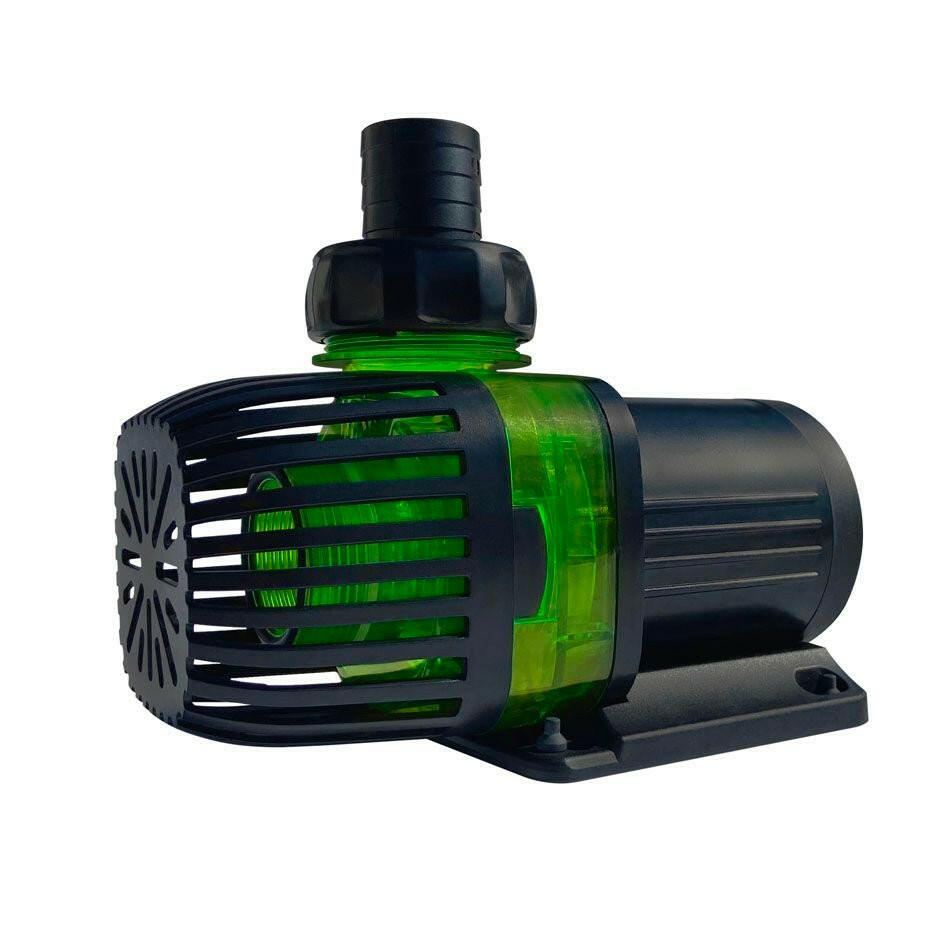

FP5000
- Maximum Flow Rate : 5000 L/H
- Maximum Head Height : 4.0 M
- Maximum Wattage : 40 W
- Power Output : 24 V
- Dimensions : 168mm (L) x 104mm (W) x 129mm (H) (Not including hose fitting)
- Flexible Hose Adapters Included : 20mm x1 / 25mm x1 / 32mm x1
- Rigid Pipe Adapters Included : 25mm x1 / 32mm x1 / 40mm x1
