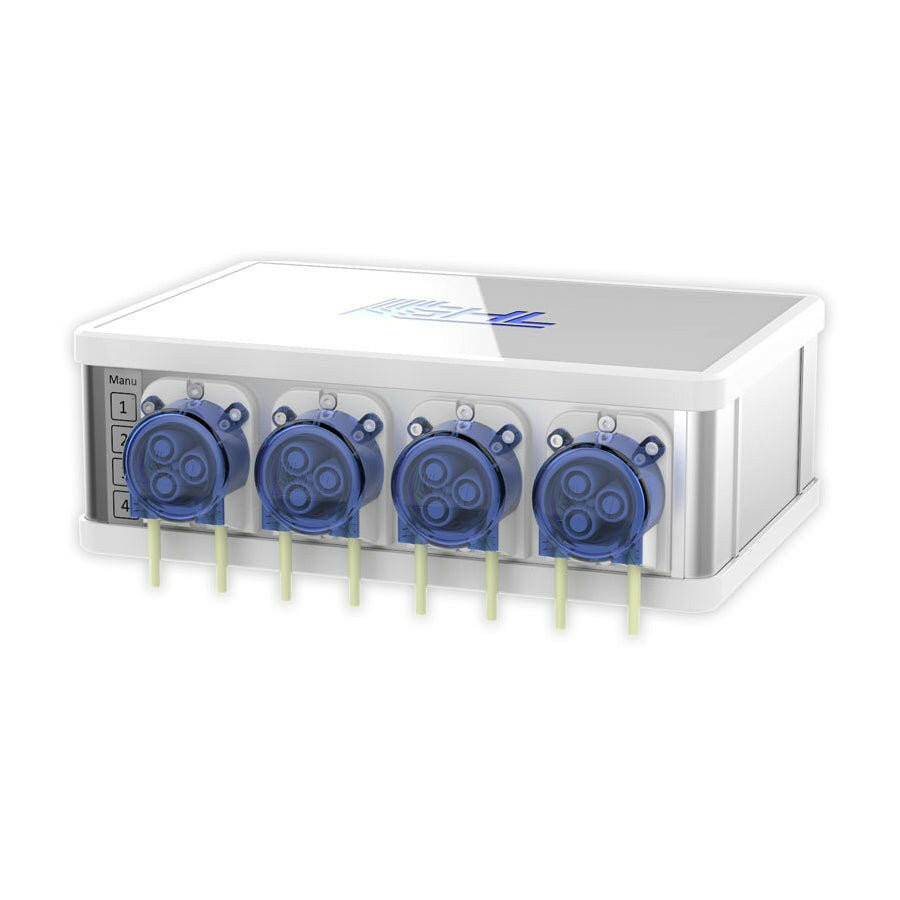

The GHL Doser 2.1 Slave needs to be controlled via a ProfiLux Controller or a GHL Doser 2.1 Stand Alone (with integrated control electronics).
The 24V stepper motors allow precise dosing even at the smallest flow rates (0.1 ml). The connection can be made via WiFi, LAN, or USB.
The system is expandable to a total of 16 pumps.
The ProfiLux Aquatic Bus provides reliable and interference-free data transfer, even over long distances up to 100 m (300 ft.).
Technical specifications:
Dimensions: 220 x 150 x 75 mm (without pumps)
Milliliter precision and automated dispensing of liquids such as
Stainless steel motor shafts (also suitable for the dosage of Iodine)
Chemical resistant tubing (Norprene®)
Manual operation of each individual pump is possible
Pumps can be retrofitted
Individual parts can be replaced (tubes, pump head, motor)
24V stepper motors allow micro doses of 0.1 ml
Up to 150 doses per day
Easily chose dosing times via software (GHL Control Center).
Automatically: Up to 150 individual doses per day automatically distributed
Individually: Up to 8 doses per day individually set
Each pump can be set separately
Conveying capacity and dosing:
8-45 ml / minute (precisely adjustable to 0.1 ml)
Level indicator
Professional CAN Bus System ensures reliable and interference-free networking of all network devices.
The LED–backlit GHL Logo in the housing cover serves as a status indicator. Various colors show you at a glance, the condition of your system.
The 24V stepper motors allow precise dosing even at the smallest flow rates (0.1 ml). The connection can be made via WiFi, LAN, or USB.
The system is expandable to a total of 16 pumps.
The ProfiLux Aquatic Bus provides reliable and interference-free data transfer, even over long distances up to 100 m (300 ft.).
Technical specifications:
Dimensions: 220 x 150 x 75 mm (without pumps)
Milliliter precision and automated dispensing of liquids such as
- Fertilizers
- Trace Elements
- Balling Salts
- Lime Water
- Liquid Feed
- Integrated evaporated water refill (Auto Top–Off)
- Water exchange of small water volumes
Stainless steel motor shafts (also suitable for the dosage of Iodine)
Chemical resistant tubing (Norprene®)
Manual operation of each individual pump is possible
Pumps can be retrofitted
Individual parts can be replaced (tubes, pump head, motor)
24V stepper motors allow micro doses of 0.1 ml
Up to 150 doses per day
Easily chose dosing times via software (GHL Control Center).
Automatically: Up to 150 individual doses per day automatically distributed
Individually: Up to 8 doses per day individually set
Each pump can be set separately
Conveying capacity and dosing:
8-45 ml / minute (precisely adjustable to 0.1 ml)
Level indicator
Professional CAN Bus System ensures reliable and interference-free networking of all network devices.
The LED–backlit GHL Logo in the housing cover serves as a status indicator. Various colors show you at a glance, the condition of your system.
